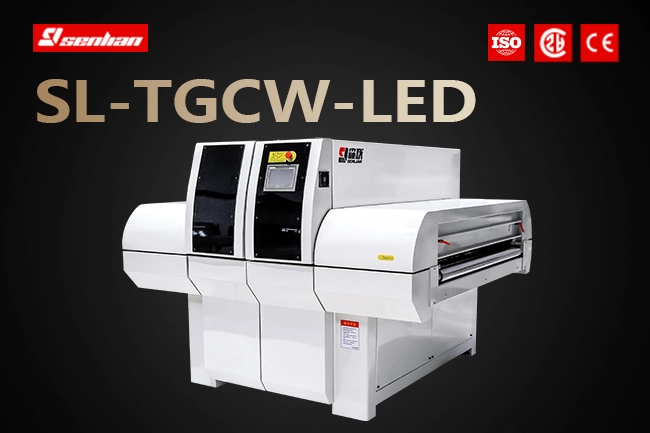

Model: SL-TGCW-LED
Cure specialized UV coatings within seconds while keeping the thermal load on the workpiece lower than conventional high-temperature drying. Two top LED UV lamps and one back-positioned lamp extend irradiation across the coated surface, while a dedicated water-cooling circuit manages heat around the light modules during continuous production.
Application Materials:
Application Coatings:

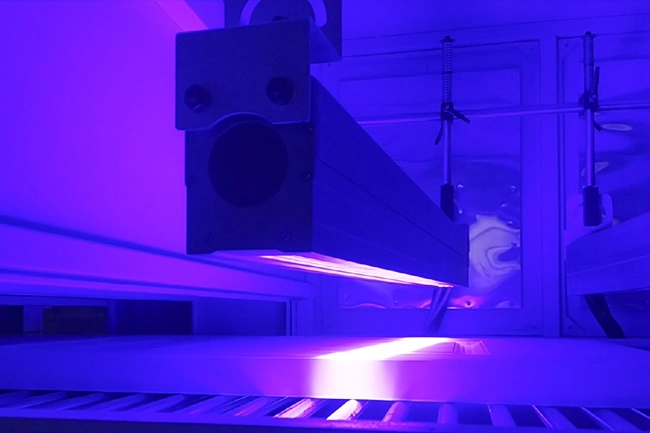

The LED UV curing machine activates photoinitiators in compatible UV coatings as the workpiece moves through the irradiation zone, converting the liquid film into a cured layer in approximately 3–5 seconds. Unlike thermal drying, the process relies on targeted UV energy rather than prolonged heating. This makes it suitable when you need fast curing while limiting unnecessary temperature rise on the substrate.
LED sources respond immediately when switched on or off, so the curing section does not need a separate warm-up period before production starts. You can coordinate the light output with conveyor operation instead of keeping the curing source running continuously during idle periods.

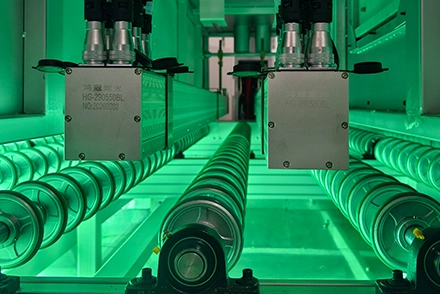

The curing route combines several functions:
This arrangement keeps irradiation, motion control and temperature management within one compact curing stage.

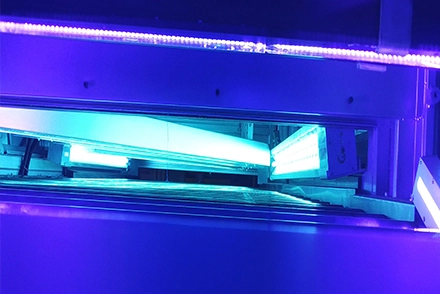

Lamp position matters when the workpiece includes more than a single flat top face. The two overhead sources cover the primary coating area, while the additional rear light extends exposure toward surfaces that receive less direct radiation from above.
You can configure the irradiation arrangement around the coated geometry and required curing route. The system is intended for specialized UV coatings used on materials including wood, veneer, MDF, plywood, PVC, PET, glass, metal, marble, ceramics and other compatible substrates.
LED modules still generate heat during continuous operation even though they do not rely on high-temperature thermal curing. The circulation cabinet carries heat away from the LED beads, modules and curing chamber, helping maintain a more stable light-source temperature during extended production.
Keeping the lamp assembly within its working temperature range also supports consistent optical output across repeated curing cycles.
After a compatible UV coating is applied, the workpiece can move directly into the curing section without waiting for a long thermal-drying stage. For continuous flat-panel finishing, the equipment can be integrated with a UV roller coating line or other compatible UV application process.
Where another curing technology is required, the wider paint drying oven range also includes mercury/gallium UV, Excimer UV, infrared, hot-air and high-temperature systems.
Custom LED UV curing machines of different sizes are available for various products, and the parameters will vary accordingly. Please contact us.

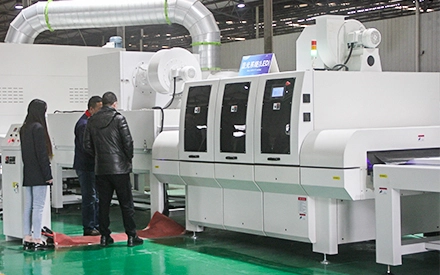

In contrast to traditional coatings, which require over 24 hours of drying and extensive drying facilities, LED UV curing machines can achieve deep curing of specialized UV coatings in just 3 to 5 seconds, significantly boosting production efficiency and conserving limited space. The LED light source supports instant start-up and shut-down without preheating or cooling-down delays, perfectly cooperating with the automated coating line rhythm.

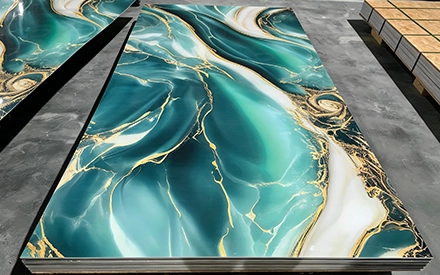

Adopting a high-performance LED cold light source and paired with a professional circulating water cooling system, this LED UV curing machine emits virtually no infrared thermal radiation during operation. The constant low-temperature operating mode prevents excessive heat accumulation, thereby effectively protecting products. It effectively eliminates common defects such as workpiece thermal deformation and cracking after curing.

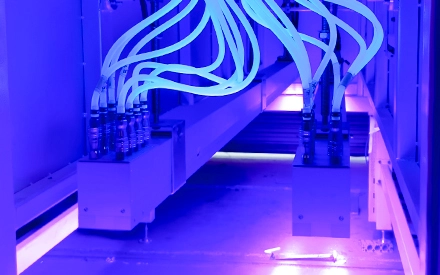

Different from traditional mercury UV lamps, the LED UV light source features high photoelectric conversion efficiency and stable energy output. It reduces power consumption by nearly 90% at the same curing strength, significantly lowering daily electricity costs. The overall service life of LED modules is more than 10 times that of conventional UV lamps, lasting over 10,000 hours, with stable light attenuation and no frequent replacement of core components.

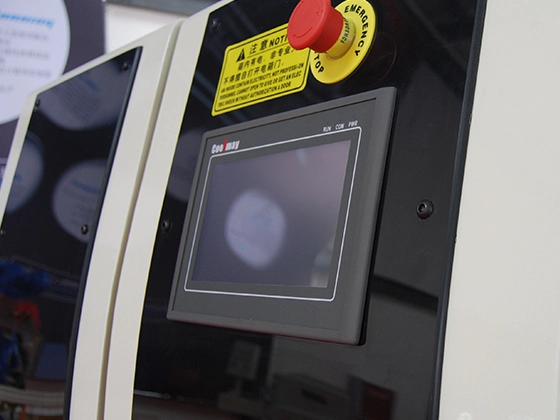

The LED UV curing machine is equipped with a bilingual human-machine interface system. All operating parameters, conveyor speed, and UV light power controls are centrally integrated on the high-definition color touchscreen. Operators can easily make precise adjustments, monitor in real time, and store parameters, enabling intelligent, flexible, and highly efficient production management.

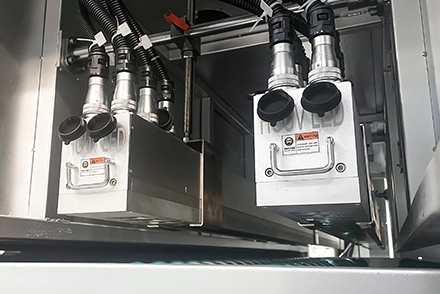

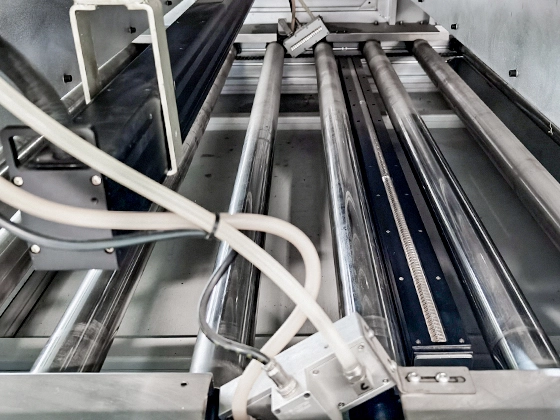

This model is equipped with two top LED UV lamps and one back LED UV lamp to achieve complete curing of UV coatings on shaped workpieces. The LED is a radiation-free, cold light source that delivers high output with low power consumption. Furthermore, it does not cause oxygen in the air to react and form ozone, nor does it require the addition of exhaust ducts to the equipment.

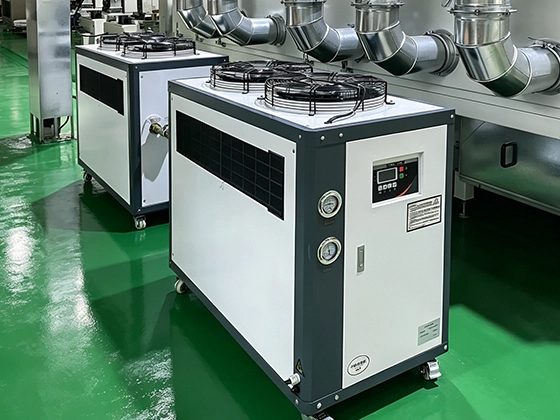

The circulating water cooling system serves as the core temperature-control unit for the LED UV curing machine. It efficiently dissipates heat from LED beads, modules, and the curing chamber to stabilize the light source temperature. It effectively avoids wavelength deviation and optical power attenuation caused by overheating, maintaining steady and uniform UV output, and extending service life.

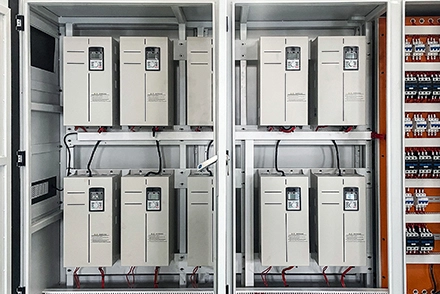

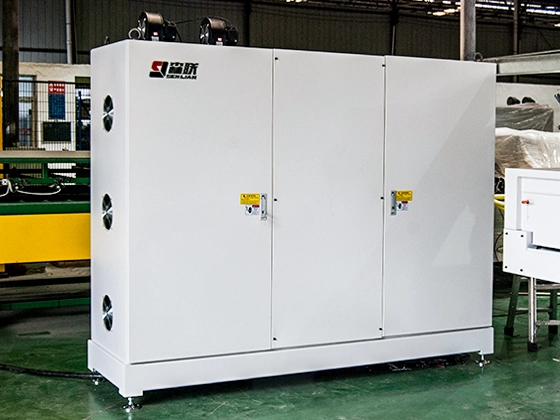

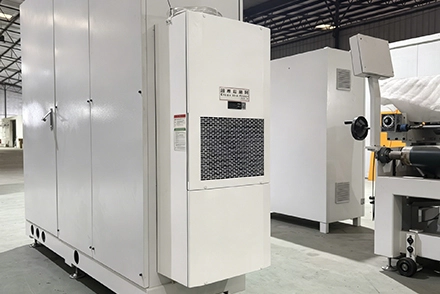

The LED UV curing machine is fitted with a standalone electrical cabinet, enhancing anti-interference capability and operational safety. It enables standardized circuit arrangement and facilitates daily inspection, maintenance and fault diagnosis, fully adapting to automated production lines. Custom industrial air conditioning is also available for high-temperature working environments.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize LED UV curing machines to fit the dimensions of your products and spaces.
Customize LED UV curing machines to fit different coatings properties and budgets.
Customize LED UV curing machines for different application requirements.
Customize LED UV curing machines for different products and applications.
Customize LED UV curing machines for different application requirements.
Customize LED UV curing machines to optimize electricity consumption across different countries.
