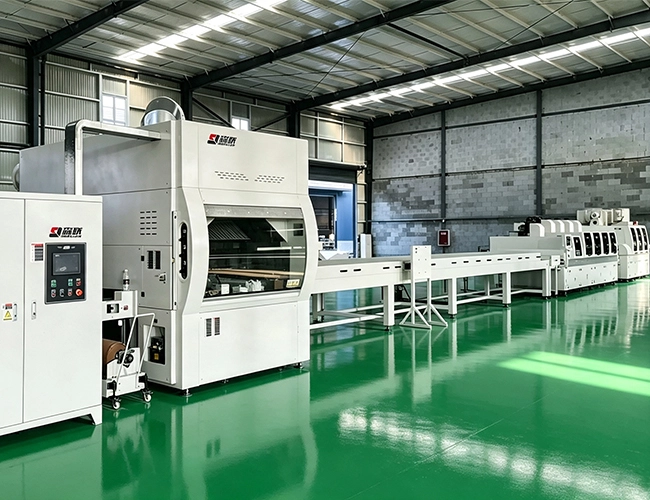

Soft-Touch Excimer UV Coating Line

Soft-touch excimer UV coating lines deliver a super matte, skin-feeling surface with functional properties including 4H hardness, self-repairing performance, stain resistance, and high-temperature resistance. The excimer UV coating line is designed for advanced surface finishing applications requiring both appearance and durability.

Popular Soft-Touch Excimer UV Coating Line

The soft-touch excimer UV coating line provides a specialized surface finishing process for furniture, glass, and decorative panel applications. By using excimer UV technology, the coating surface can achieve a smooth soft-touch feel together with improved durability.

Compared with traditional UV finishing methods, this excimer coating line helps create unique matte surfaces while maintaining resistance against scratches, stains, and daily wear.

The Workflow of Soft-Touch Excimer UV Coating Lines is as Follows:

Materials Feeding: We typically use manual labor or automatic loading machines to perform this task.
Surface Treatment: The methods for surface treatment vary depending on the material. Proper surface preparation helps the excimer UV coating line achieve consistent adhesion and finishing quality across different substrates. We usually use dust removal or water-cleaning equipment to keep the material surface spotless.
Topcoat Roller Coating (Optional): For flat products, UV topcoat roller coating is the ideal choice, as it can evenly apply paint to the workpiece surface with an adjustable coating amount of 10-80g per square meter in one pass.
Topcoat Spray Painting (Optional): For shaped products, reciprocating spraying of a UV excimer topcoat can achieve a high-quality coating with uniform color on the edges and surfaces, with an adjustable coating amount of 120-150g per square meter in one pass.
UV Leveling: Heating promotes paint leveling and prevents coating defects, such as waviness, bubble, and orange peel.
Nano Excimer UV Curing: Combining an LED cold light source and 172nm UV excimer reduces surface and edge gloss, resulting in a super-matte, soft-touch, skin-like effect.
3D UV Curing: UV coatings rapidly polymerize and crosslink under ultraviolet irradiation via photoinitiators. In the excimer UV coating line, the curing stage completes the surface treatment process within seconds while reducing the space required for conventional drying.
Finished Products: Similarly, we can use manual labor or equipment to complete the unloading work. And after the soft-touch excimer UV coating line, the products can proceed directly to the next process without waiting.

Case Videos

LEARN MORE

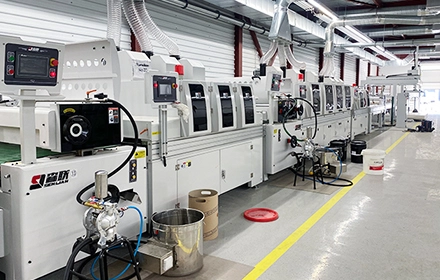

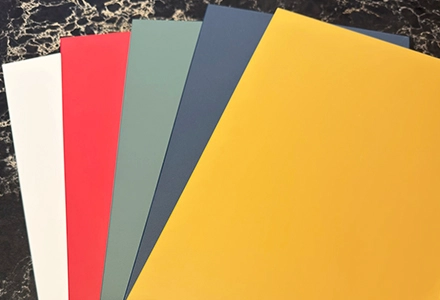

MGO Board Excimer UV Coating Line

This soft-touch excimer UV coating line uses roller coating for UV putty, primer sealing, and soft-touch topcoat. The integrated process allows MGO boards to achieve a consistent matte surface with improved touch performance.

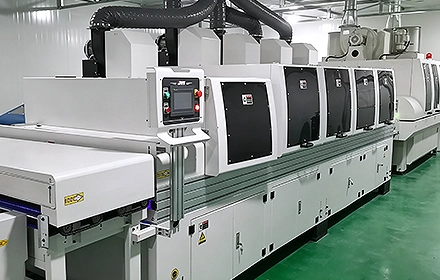

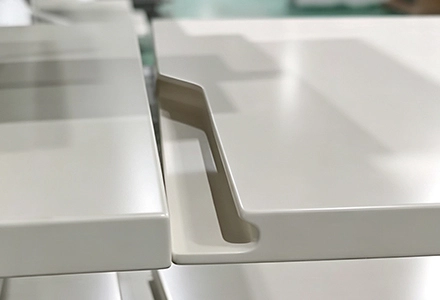

Cabinet Door Excimer UV Coating Line

This excimer UV coating line uses reciprocating spraying to deliver a consistent coating layer and matte finish for cabinet door applications. The process combines surface appearance control with functional protection.

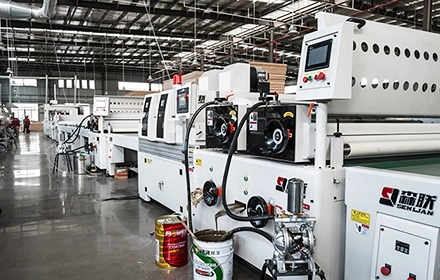

Furniture Excimer UV Coating Line

This soft-touch excimer UV coating line integrates water-based coloring, primer coating, and soft-touch topcoat processes for furniture surfaces requiring both visual consistency and functional performance.

Standard Configurations

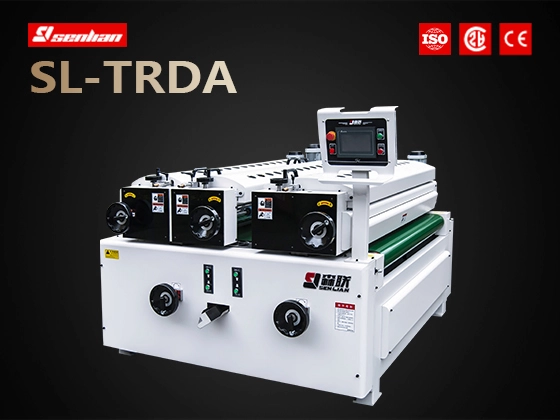

Roller Coating Machine (Optional)

The roller coating machine coats flat products using a rubber and steel roller in one or multiple coating units. It pumps and recycles liquid paint for even coverage. All components are controlled by frequency conversion, and the HMI touchscreen allows intuitive operation.
Click Here for More

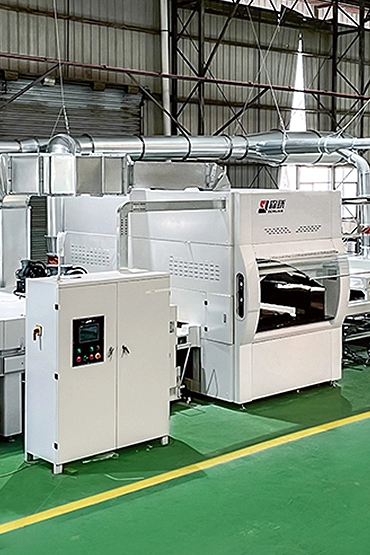

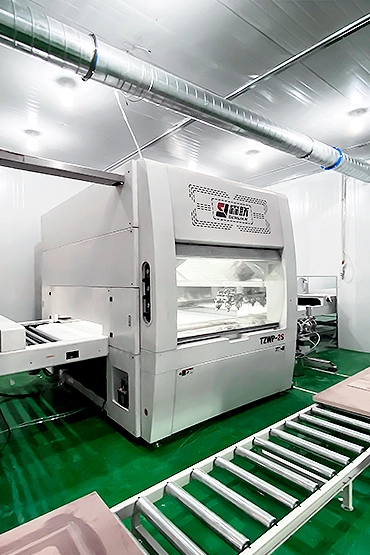

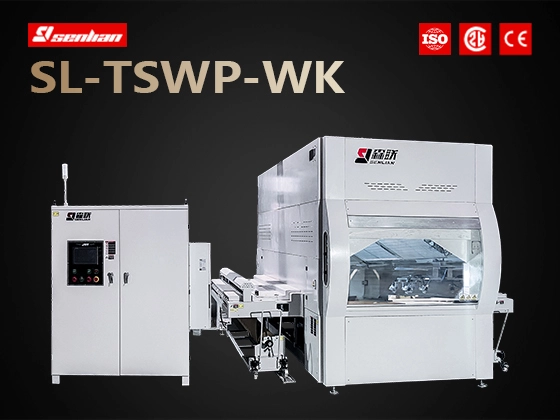

Spray Painting Machine (Optional)

Integrated with a spacious paint booth, this machine features a reciprocating spray painting structure, a complete positive-pressure air system, and a clean-free conveyor belt, delivering a fully automatic coating process and superior coating results on shaped workpieces.
Click Here for More

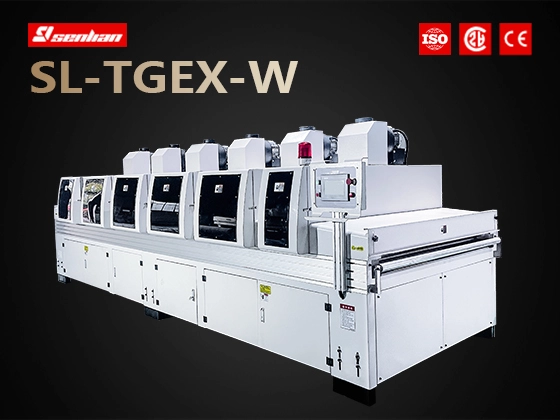

Excimer UV Curing Machine

The nano excimer UV machine integrates specialized LED UV lamps and nano-excimer UV lamps to rapidly cure UV coatings on both the surface and edges of a substrate, imparting a delicate, soft-touch feel and a premium ultra-matte finish.
Click Here for More

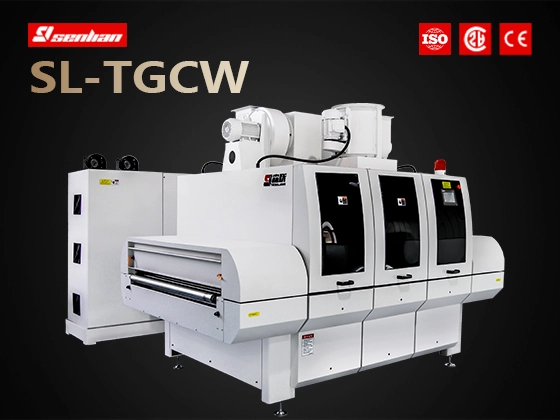

3D UV Curing Machine

This machine is equipped with two horizontal UV lamps on top, two UV lamps on the sides, and one UV lamp at the back under the conveyor; all irradiation angles and ranges are adjustable to ensure the UV paint on all angles of the workpieces dries immediately.
Click Here for More
