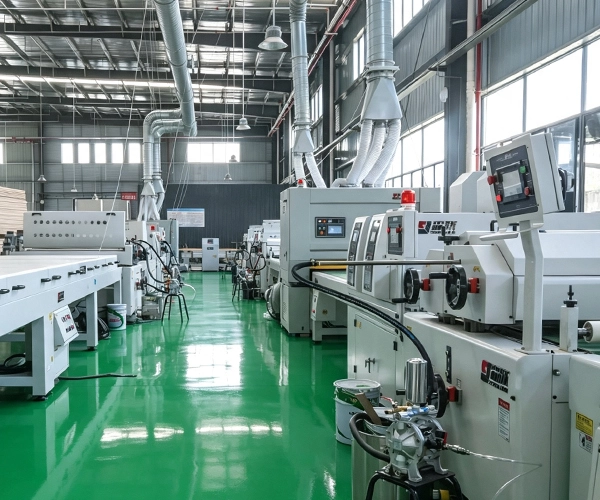

UV Roller Coating Line

UV roller coating lines are widely used across industries such as whole-house furniture, hotel and office furniture, doors and windows, and construction materials, providing a fast and reliable solution for mass coating of flat substrates.

Efficient and Paint-Saving UV Roller Coating Line

The UV roller coating line is a highly efficient, precise, and environmentally friendly automatic coating production line. Based on the core principle of "contact-type quantitative coating" and combined with UV curing technology, it achieves breakthroughs in both coating quality and production efficiency, becoming a mainstream coating solution across industries such as furniture, building materials, and panel manufacturing.

Compared to traditional manual spraying of solvent-based paints (which require several days to dry naturally), UV roller coating lines offer hundreds of times greater efficiency. The curing process involves no solvent evaporation, and roller coating is better suited to the flat substrates, avoiding problems such as paint mist and uneven coating that occur during spraying.

The Workflow of UV Roller Coating Lines is as Follows:

Materials Feeding: We typically use manual labor or automatic loading machines to perform this task.
Surface Treatment: The methods for surface treatment differ depending on the material. For example, we will sand and dust solid wood to achieve a consistent thickness and a spotless surface.
UV Roller Coating: This step is crucial for determining the coating's quality. The doctor steel roller is responsible for precise control of paint supply, while the rubber roller evenly transfers the paint to the surface of the material.
UV Leveling: Heating promotes paint leveling and prevents coating defects, such as waviness and orange peel.
UV Curing: UV coatings rapidly polymerize and crosslink under ultraviolet irradiation via photoinitiators, completing the curing process in just a few seconds and significantly reducing drying time.
Finished Products: After coating, we can use machines to automatically cover protective film, stack products, or make other preparations for the next process.

Case Videos

LEARN MORE

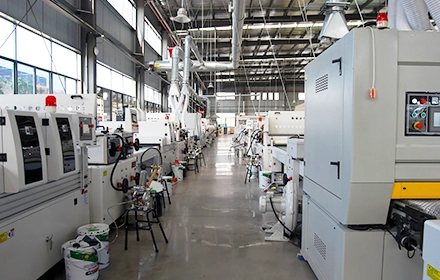

Furniture UV Roller Coating Line

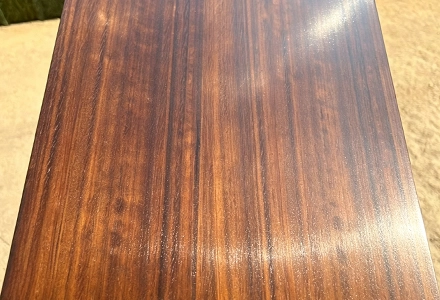

This UV roller coating line integrates processes such as water-based coloring, primer roller coating, and transparent topcoat roller coating. The final wood-veneer products are used for hotel furniture.

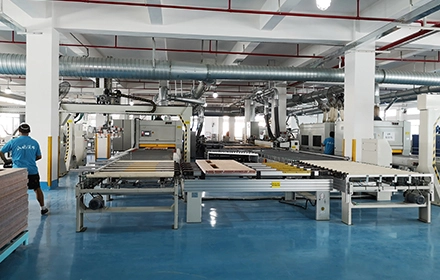

Wood Door UV Roller Coating Line

This UV roller coating line combines automatic loading and unloading, UV primer coating, surface and edge primer sanding, and five-axis spraying of the topcoat, achieving mass production of construction doors.

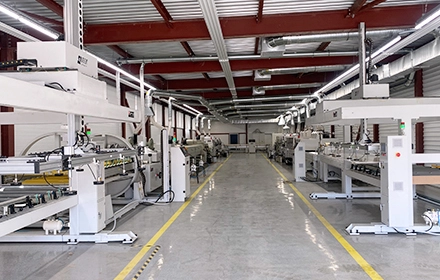

MGO Board UV Roller Coating Line

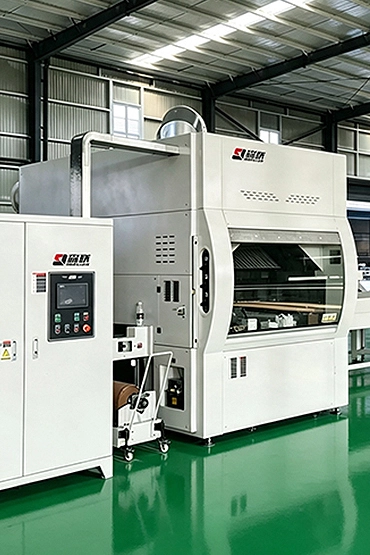

This UV roller coating line combines processes such as UV putty, primer sealing, and UV excimer soft-touch topcoat, resulting in MGO boards for interior wall decoration with a baby-skin-like feel.

Standard Configurations

Roller Coating Machine

The roller coating machine coats flat products using a rubber and steel roller in one or multiple coating units. It pumps and recycles liquid paint for even coverage. All components are controlled by frequency conversion, and the HMI touchscreen allows intuitive operation.
Click Here for More

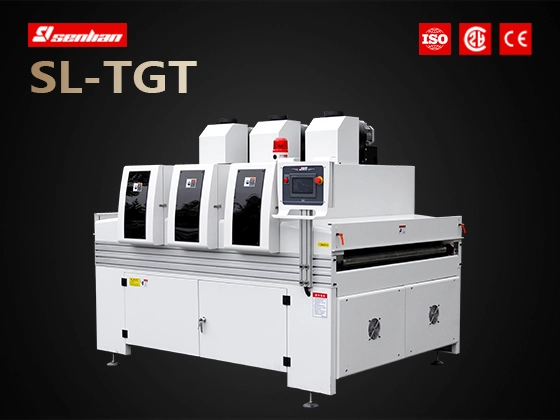

UV Curing Machine

The UV curing machine is equipped with multiple UV lamps that initiate rapid photochemical reactions for UV coatings, enabling instant curing in 3–5 seconds. The high-efficiency UV reaction drastically shortens curing time and eliminates harmful volatile solvent emissions.
Click Here for More

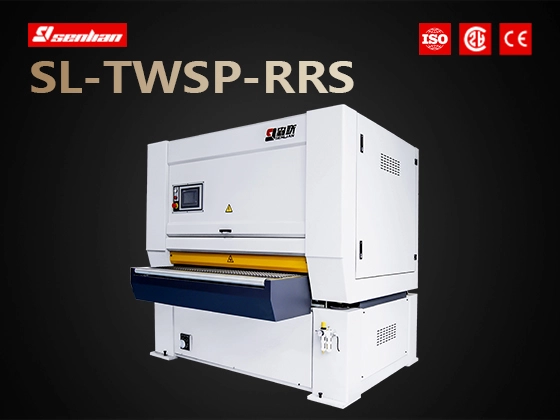

Primer Sanding Machine

The primer sanding machine uses a pneumatically operated, vertically moving belt to sand primer on flat surfaces. Removing surface defects enhances coating adhesion and surface quality, creating ideal conditions for subsequent finishing paint.
Click Here for More

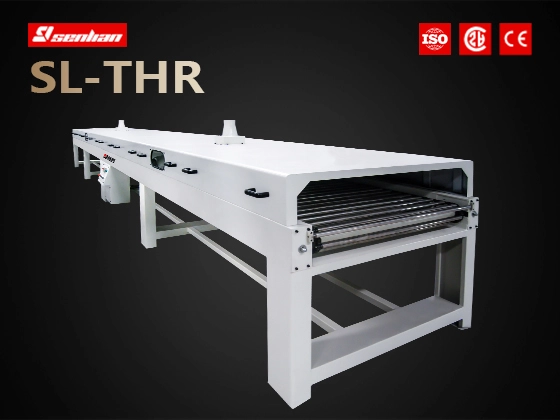

Infrared Heating Oven

Typically positioned between the coating machine and the paint drying machine, this infrared heating oven uses far-infrared radiation to gently warm coatings, helping to achieve a beautifully even, smooth finish on workpieces.
