Model: SL-TS-ROBOT-3D
Scan each workpiece before spraying and let the robot adapt its motion to the detected contour and position. A HIKVISION 3D imaging system supplies shape data to the control system, while the six-axis Yaskawa arm carries the spray gun around curved, recessed, angled, and multi-face surfaces. GRACO air-mix spraying completes the coating process with a controlled atomization pattern.
Application Materials:
Application Coatings:
The 3D spray painting robot uses vision-guided technology to identify workpiece geometry before spraying. A HIKVISION imaging system captures contour and position data, allowing the control system to generate a coating path based on the actual shape of each part.

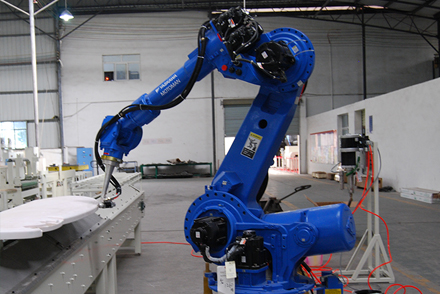

The six-axis Yaskawa arm moves the spray gun through multiple angles, enabling robotic spray painting for complex and variable workpieces. The system does not rely on one fixed trajectory, making it suitable for products with different shapes and surface structures.
Different workpiece profiles, positions, and surface structures require flexible path planning to maintain consistent coating results. The 3D camera collects geometry information within the working area, while the control system adjusts robot movement according to the detected contour.
The coating sequence combines:
This robotic spray painting process is suitable for production environments where workpieces vary in shape instead of following one standard design. It allows the spray path to follow the actual geometry of each part during operation.
The six-axis arm provides flexible movement around the workpiece. The spray gun can reach edges, side surfaces, curved sections, and three-dimensional details from different directions.
Compared with fixed spraying methods, the spray painting robot adjusts its movement according to the workpiece shape. This helps maintain more consistent coating coverage on complex areas that require multiple spray angles.
The system supports coating applications on wood, MDF, glass, ceramics, metal, plastic, and other compatible substrates. Applicable materials include UV, PU, PE, NC, AC, water-based paint, fluorocarbon coatings, glue, and other compatible coatings.
The spraying unit integrates a GRACO medium-pressure air-mix gun with a 30:1 plunger pump. The spray gun combines coating pressure and atomizing air to create a controlled spray pattern.
The pump maintains stable coating supply during robot movement. The coordination between the robotic spray painting system and spraying equipment keeps spray position, movement path, and coating delivery synchronized throughout the process.
The spray painting robot can operate as an independent coating cell or integrate with a larger spray painting machine system.

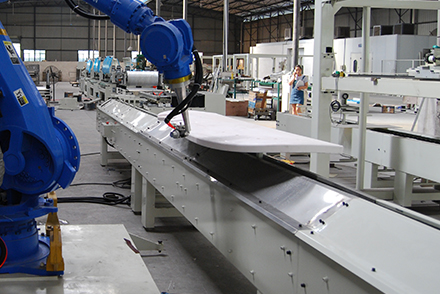

When loading, spraying, leveling, drying, and material handling are arranged as one continuous process, the robotic spraying cell can also connect with an automated coating line.
This production setup allows complex workpieces to move through each coating stage with stable handling and repeatable spray performance.
Custom spray painting robots of different models are available for various products, and the parameters will vary accordingly. Please contact us.

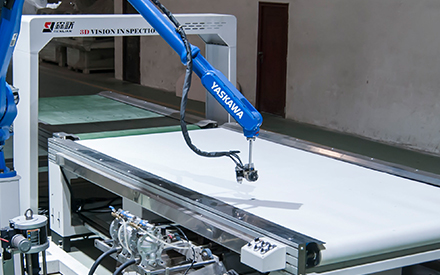

The spray painting robot integration slashes the need for manual painters and cuts overall costs (labor, paint, raw materials) via optimized application and higher yield rates. It can also seamlessly connect with upstream and downstream automated equipment to form a fully automated coating line (loading, spraying, leveling, drying), accelerating production cycles and boosting overall line capacity.

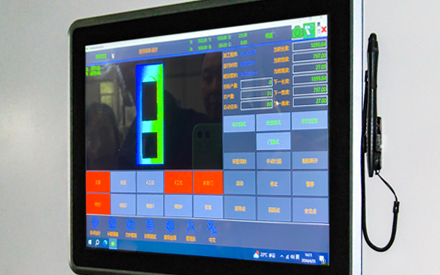

This 3D spray painting robot features an intuitive, user-friendly HMI. Integrated with a smart 3D imaging system, it auto-scans the 3D contours and positional data of workpieces, then rapidly generates processing programs and spray trajectories. Operators require only short-term training to begin work, and routine maintenance consists solely of periodic cleaning, lubrication, and component inspections.

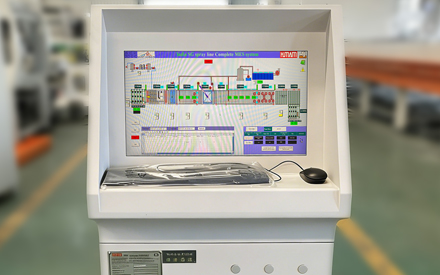

This spray painting robot can integrate with enterprise production management systems (MES/ERP) for real-time collection, monitoring and analysis of painting production data. Metrics such as output, paint consumption, equipment status and yield are uploaded in real time to a central management platform, enabling remote monitoring of coating lines by corporate headquarters and realizing digital, intelligent production process management.

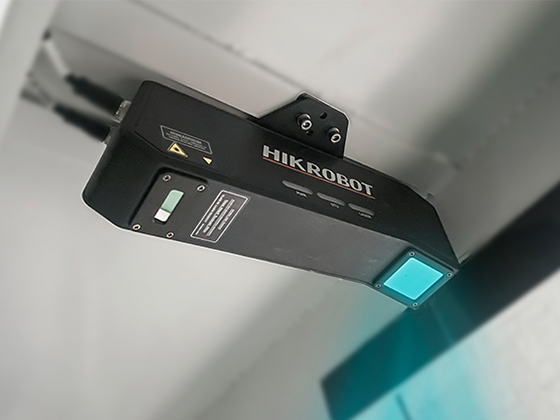

HIKVISION's 3D imaging camera and smart control system work in tandem to accurately detect workpiece contours and positioning in real time, while dynamically adjusting the spraying paths for shaped components without any manual input.

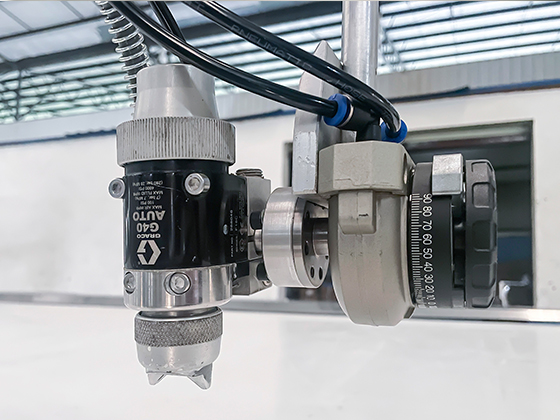

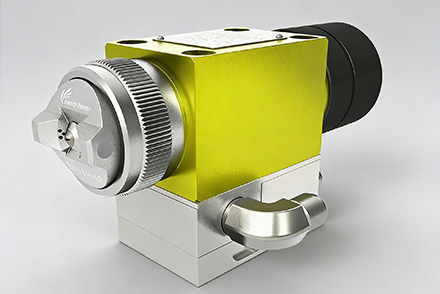

The GRACO spray painting system from the United States features an adjustable medium-pressure air-mix spray gun and a 30:1 plunger pump, delivering a soft and uniform atomization effect while minimizing paint bounce-back and waste.

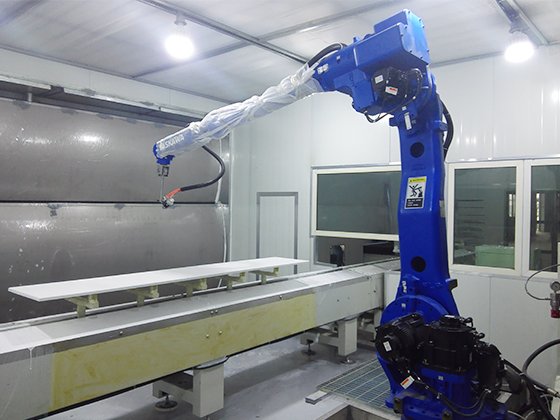

Yaskawa robotic arms boast high flexibility, superior positioning accuracy, fast dynamic response and enduring stability, with protective suits made of premium flame-retardant hermetic materials that deliver anti-contamination and anti-static performance.

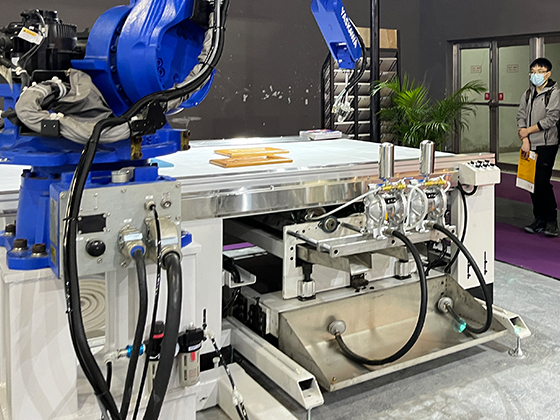

Our custom belt conveyor with a cleaning trolley auto-recovers belt paint residue and thoroughly cleans the PE belt for a spotless finish. We also offer tailor-made conveyors with custom structures and configurations to match your specific product requirements.
When your substrate, coating, or space is unusual, or when you have unique technical requirements, our custom services may be the best way to help you achieve your goals.
Customize spray painting robots to fit the dimensions of your products and spaces.
Customize spray painting robots to fit different coatings and budgets.
Customize spray painting robots to fit different coatings and budgets.
Customize spray painting robots for different budgets and applications.
Customize spray painting robots for different products and applications.
Customize spray painting robots to optimize electricity consumption across different countries.
