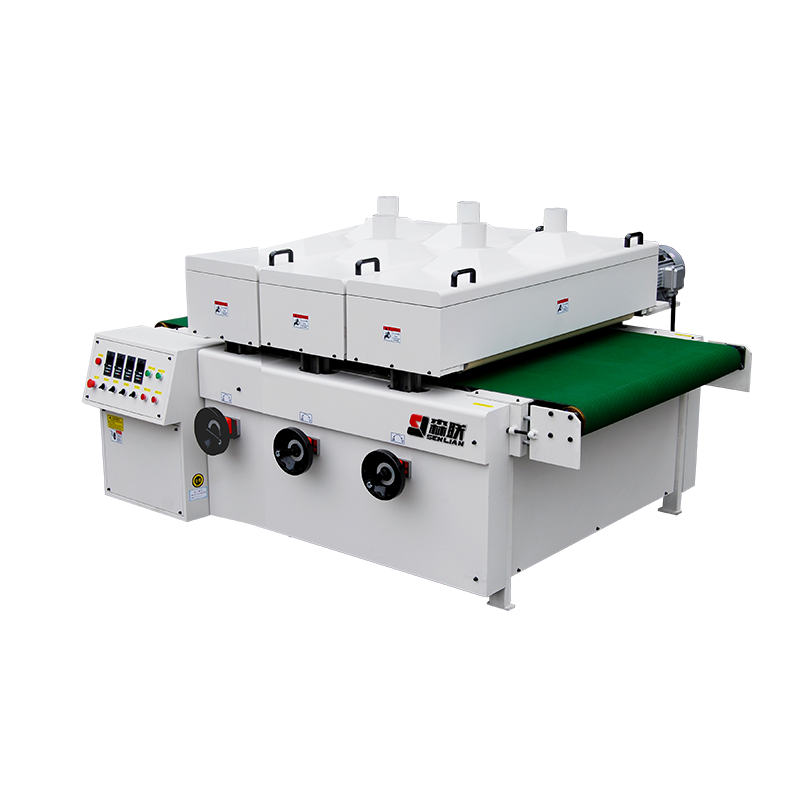

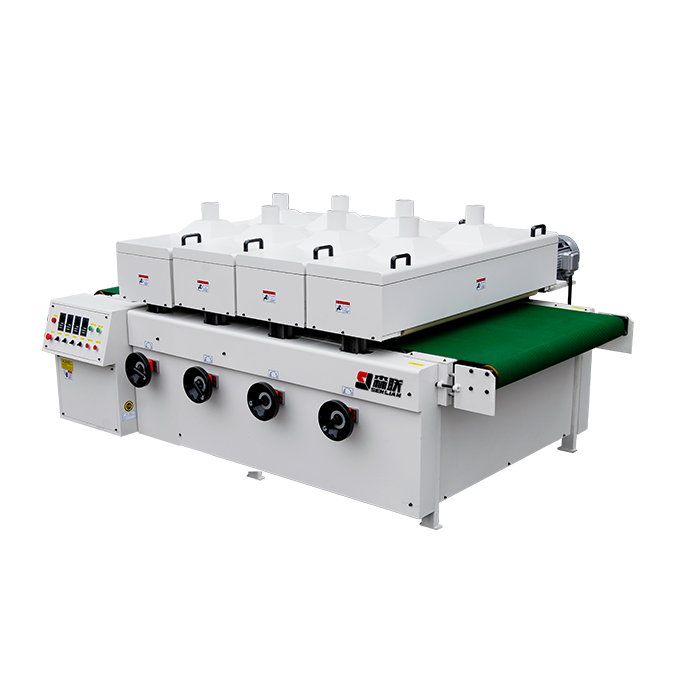

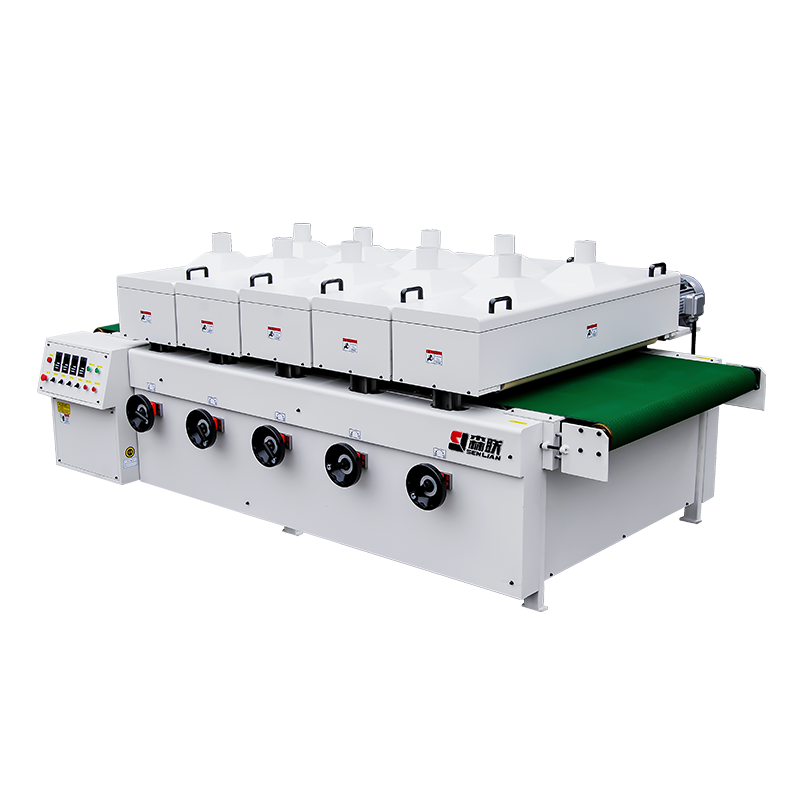

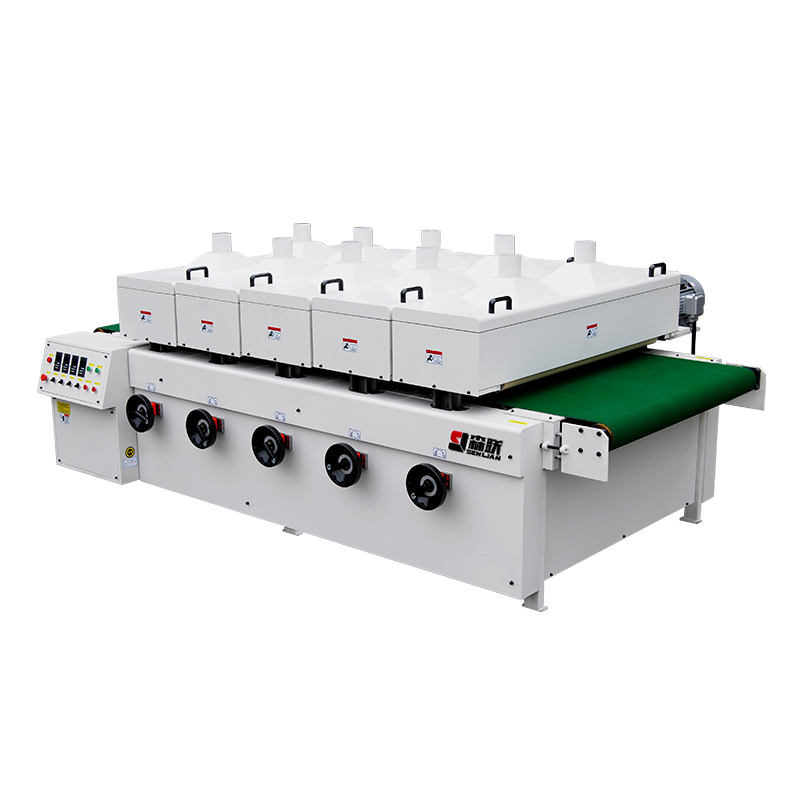

Wood Texture Wire Brush Machine

Model SL-TWB

The wood texture wire brush machine applies steel wire drawing rollers of varying thickness frequency control to remove the soft wood around leaving the original grain more obvious, and the nylon wire rollers or reverse sisal brushes eliminate any protruding wood fibers and smooth the surface.

This machine enhances the appearance of the solid wooden board or wood veneer's original grain, making it more pronounced and three-dimensional vivid, for a natural and more appealing decorative effect.

According to different woods and textures, you can choose the brushing material cooperation and quantity to achieve the best effect.

How does Wood Texture Wire Brush Machine work?

Base Materials

Solid Wood
Plywood

Wood Texture Wire Brush Machine Template

SL-LS01
SL-LS02
SL-LS03
MSL-LS04

SL-LS05
SL-LS06
SL-LS07
SL-LS08

Standard Characteristics

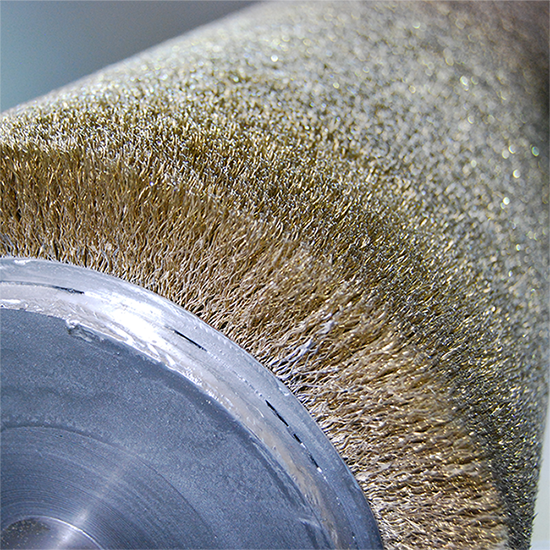

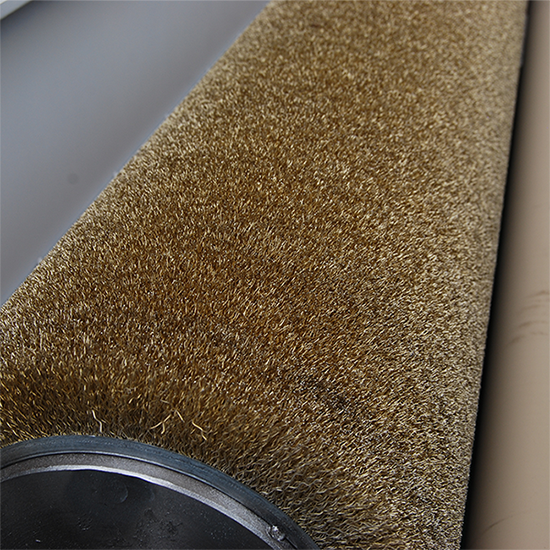

Brush Roller

Different brush rollers of varying thickness can remove the soft wood around the grain.It also eliminate any protruding wood fibers to smooth the surface.

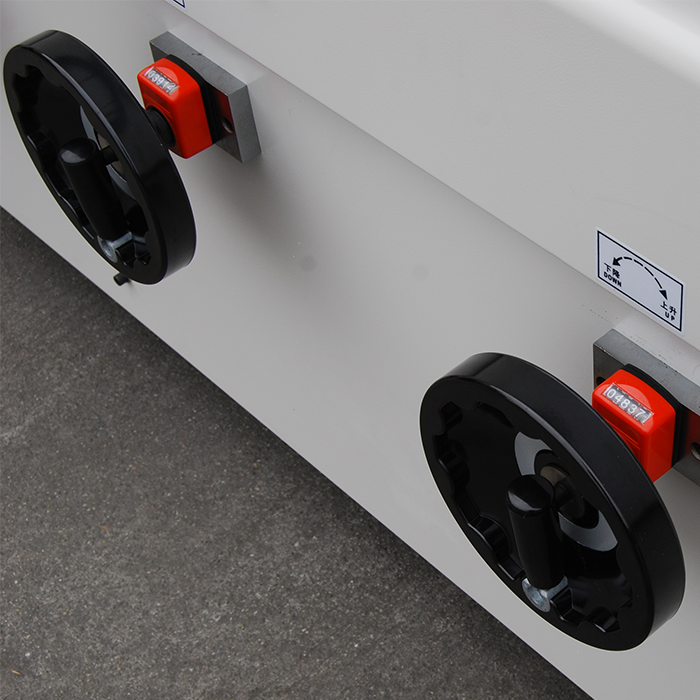

Hand Wheel

The hand wheel controls the height of the brush roller according to the height of the plate, and assists in adjusting whether the brush roller is put into use.

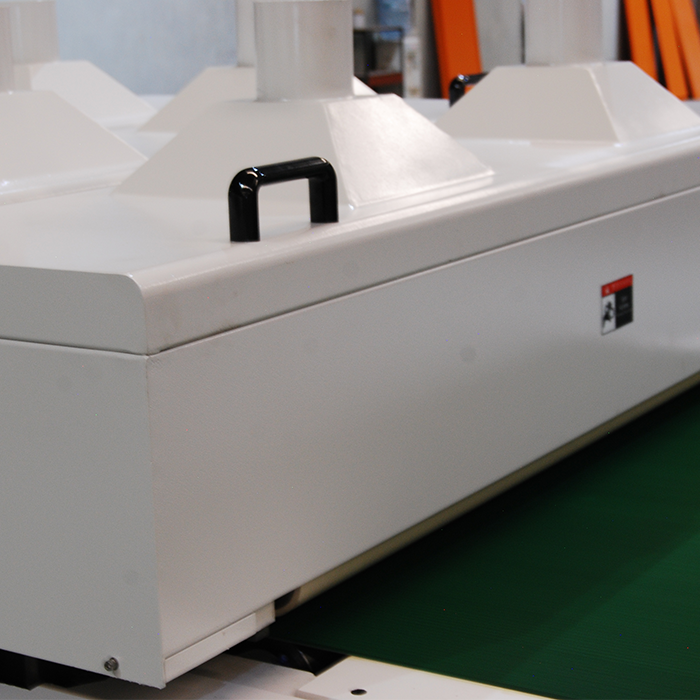

Steel Hatchback Cabinet

The upper horizontal cover can be opened for easy maintenance and observation.It prevents the operator from coming into contact with the moving parts of the machine equipment.

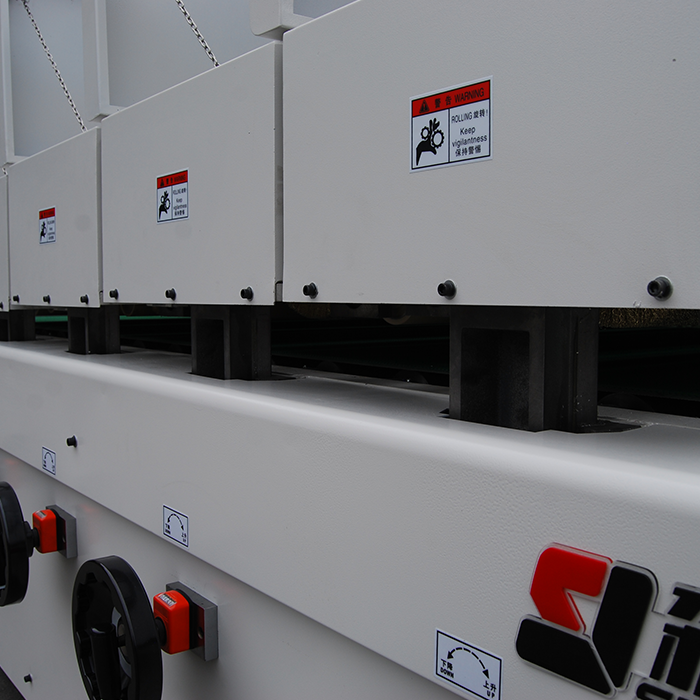

Stable Lifting Base

The brush roller applies dovetail groove structure lifting instead of a screw drive structure, brush lifting is controlled by a hand wheel to ensure more accuracy.

Technical Parameters

Model	SL-TWB1300
Overall Dimensions L/W/H	345024001500mm
MAX working width	1300mm
MIN Working Length	300mm
MAX Working Thickness	Solid wood:2.5mm, Veneer:2.7mm
Working Speed	1 to 25m/min
Full Power	22.5kw 380V 50HZ 3P
Gross Weight	2500kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working thickness
Feeding direction
Machine body colour

Working Table

Suitable for different products

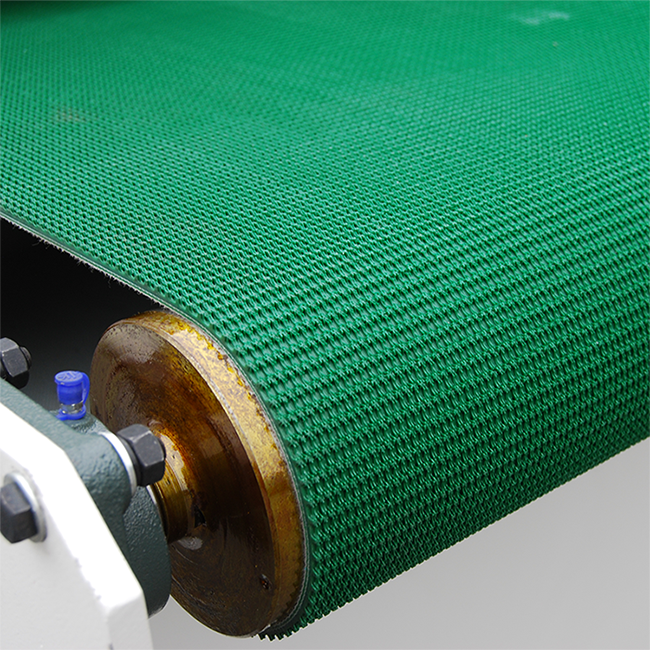

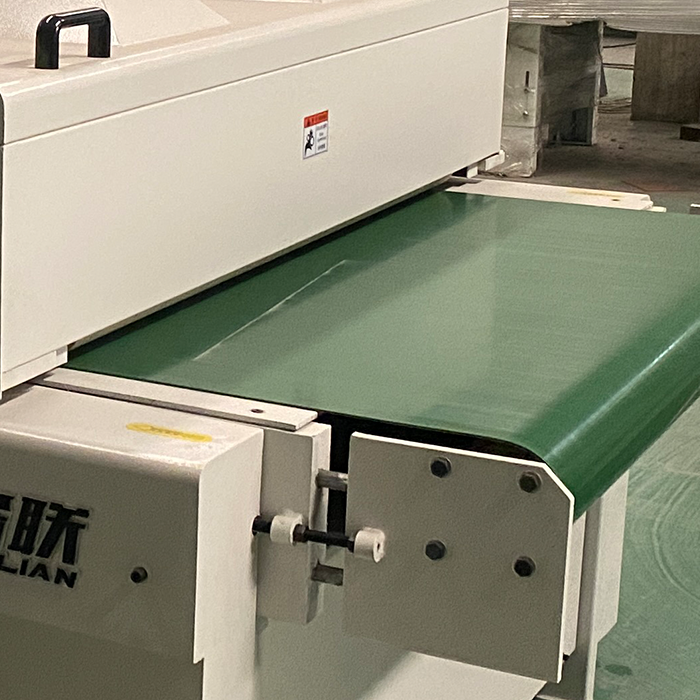

Anti-corrosion PE Belt
Anti-slip Cog Belt

Brush Material

Suitable for variou hardness of wood

Steel Wire Brush
Grinding Wire Brush

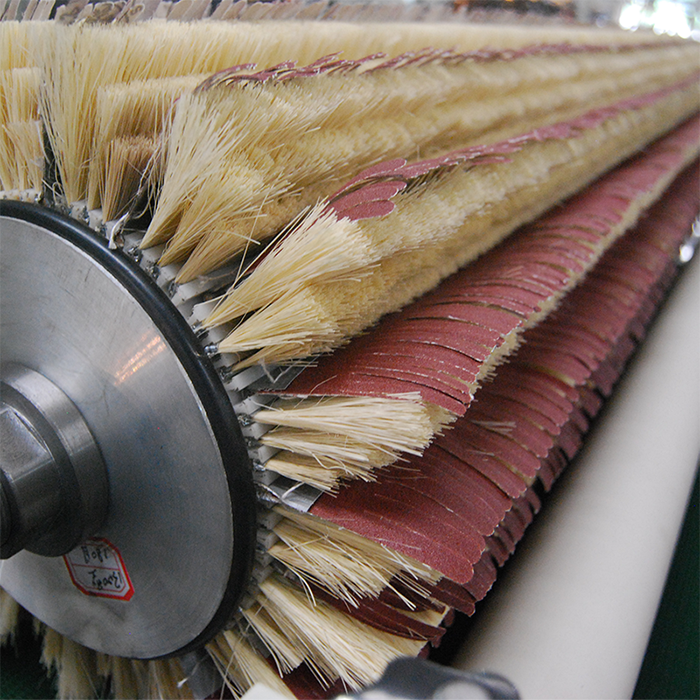

Sisal Brush

Brush Quantity

Suitable for different effect and efficiency

3 Sisal Brush Rollers
4 Combination Brush Rollers
5 Combination Brush Rollers

Electrical

Suitable for electricity consumption in different countries

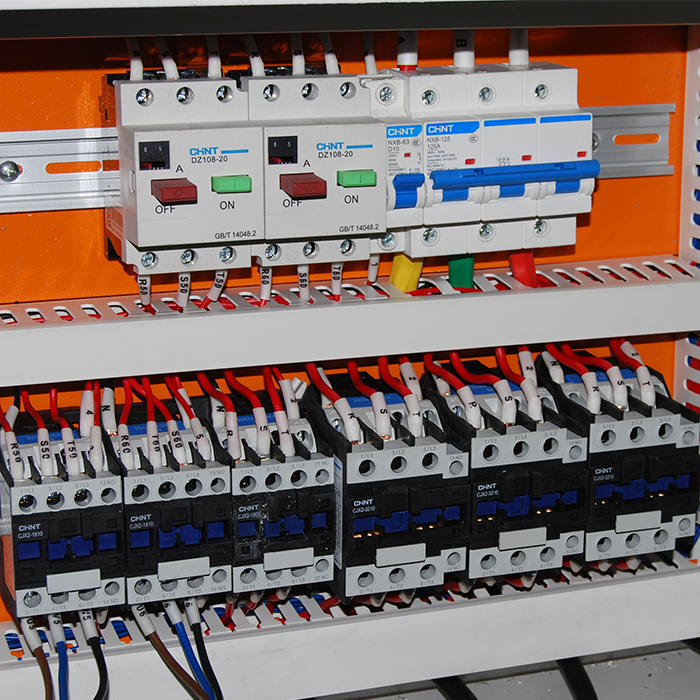

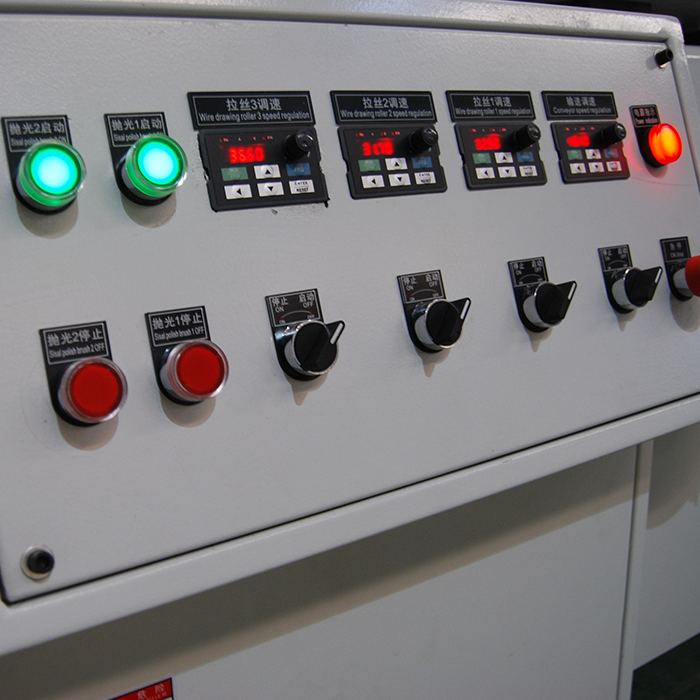

Control Panel
Various Electric Voltage
Various electric standard

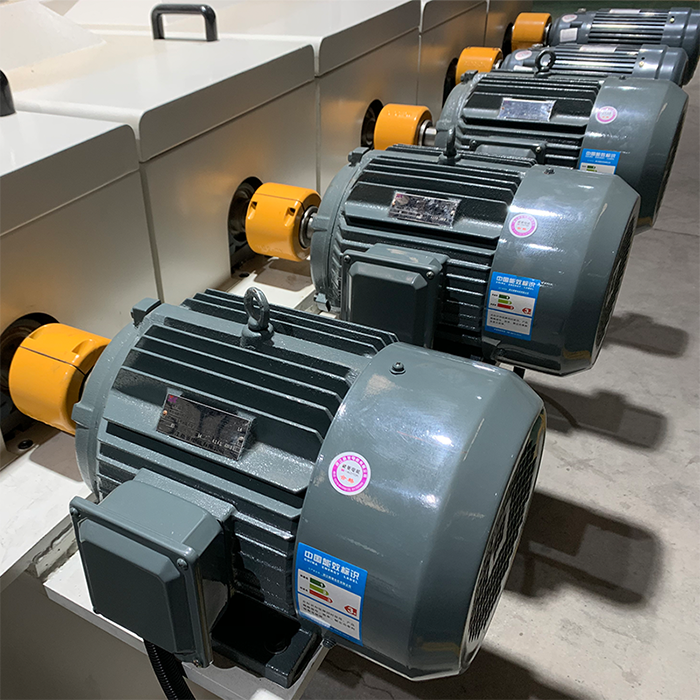

Electric Motor

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. The core characteristics of wood suitable for wood texture wire brush machine.

Hard wood: can withstand brushing and grinding without burrs or fiber tearing (too soft and easy to fluff, too hard and inefficient).

Ideal range: air-dry density is 0.55-0.75g/cm³ (such as oak, ash, etc.).

Staggered/wavy grain: the process needs to be controlled to avoid roughness (such as mahogany).

Straight-grained wood: the texture is continuous and smooth after wire drawing, and the effect is best (such as oak, beech).

Good fiber toughness: The fiber is not easy to break and can form uniform silk marks (such as walnut> pine).
2. Wood texture wire brush machine are used with caution or are not recommended for wood.

Too soft wood: such as pine and fir, it is easy to fluff and tear the fiber, and the surface is rough and difficult to control.

Too hard wood: such as rosewood and rosewood, the processing efficiency is low, the consumables cost is high, and the natural texture is beautiful enough.

Wood with chaotic texture or uneven structure: For example, brushing of bird's eye maple may destroy the visual effect of special patterns.

MDF: no natural texture, brushing is not very meaningful.

Particleboard: surface particles are easy to fall off, and the surface is uneven after brushing.
3. Can the Wood texture wire brush machine control the texture of wood?

Correction of classic misunderstanding: It is impossible to create a texture that does not exist in the wood itself, such as pine wood wire drawing cannot become oak grain.

Texture enhancer: The wire drawing machine removes the softer early wood part of the wood surface through mechanical brushing (wire/nylon brush), retains the harder late wood, and makes the concave and convex layers of the natural texture more obvious, but it will not change the original texture direction or duct structure of the wood.

Application tips: It is recommended to do open paint for the subsequent painting process of the wire drawing board.
