Surface Treatment

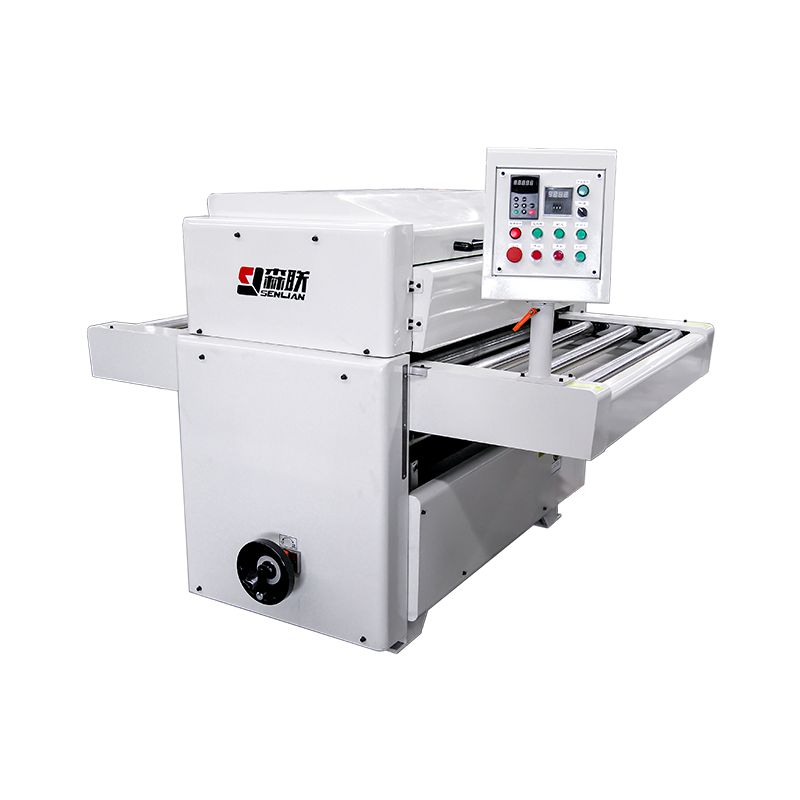

Wood Texture Embossing Machine

Model SL-TWEH

The wood texture embossing machine applies a heavy stainless steel roller with laser-engraved wood texture to emboss the pattern on the wooden board.

The embossed patterns are natural and realistic high-quality wood grain, random on every piece, and you can customize your favorite pattern. Choosing the electric heating function makes the soft wood embossed texture carbonization more stable and won't rebound or even disappear.

It is mainly for cheap wood such as MDF, rubber wood, and ply to create popular precious wood grain, for better decorative value.

How does Wood Texture Embossing Machine work?

Base Materials

Solid Wood

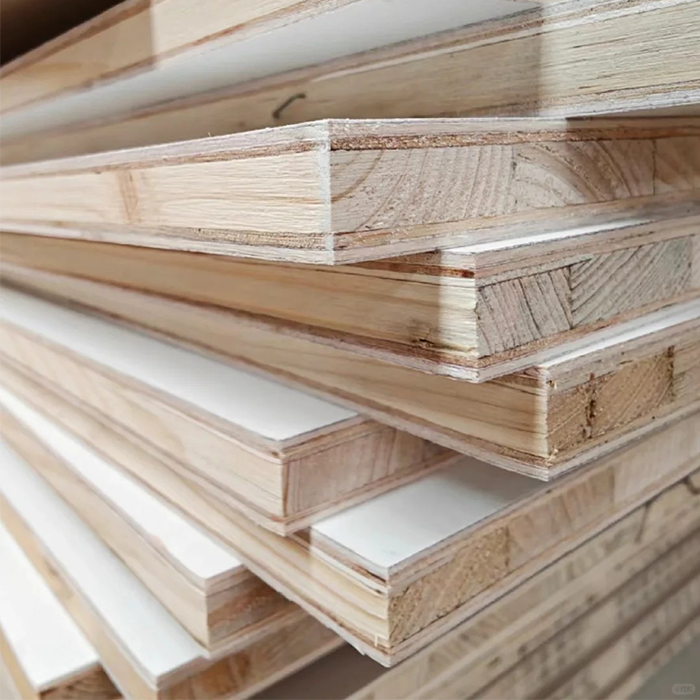

Plywood
Ecological Board
MDF

Wood Texture Embossing Machine Template

SL-YW01
SL-YW02
SL-YW03
SL-YW04
SL-YW05
SL-YW06
SL-YW07
SL-YW08
SL-YW09
SL-YW10
SL-YW11
SL-YW12
SL-YW13
SL-YW14
SL-YW15
SL-YW16

Standard Characteristics

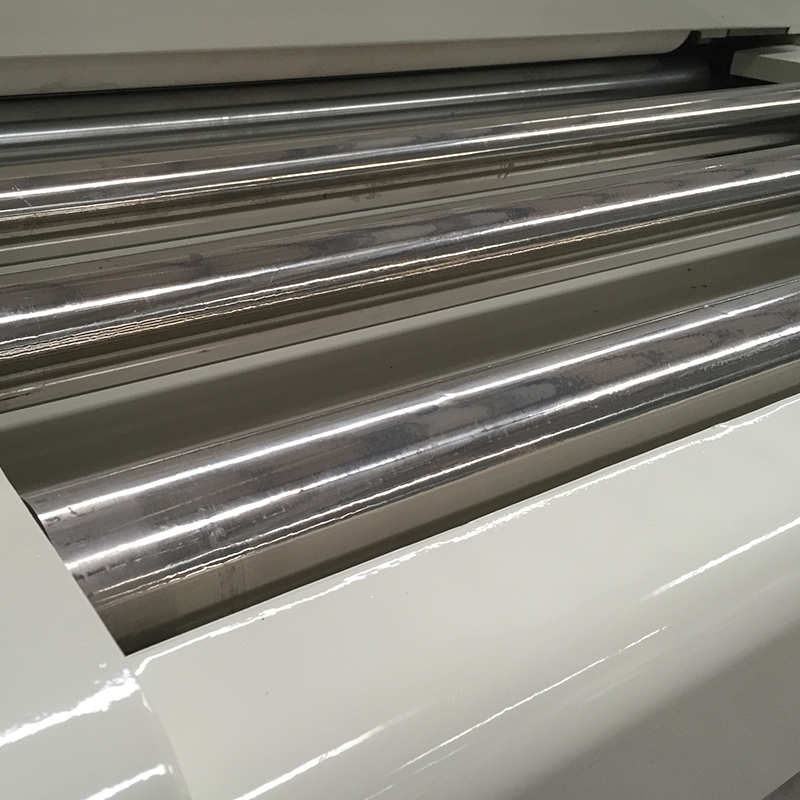

Steel Rollers Conveyor

The surface of the stainless steel roller is smooth and does not easily adhere to dirt impurities, while the hardness is high, to ensure that the product in the embossing process has less abrasion.

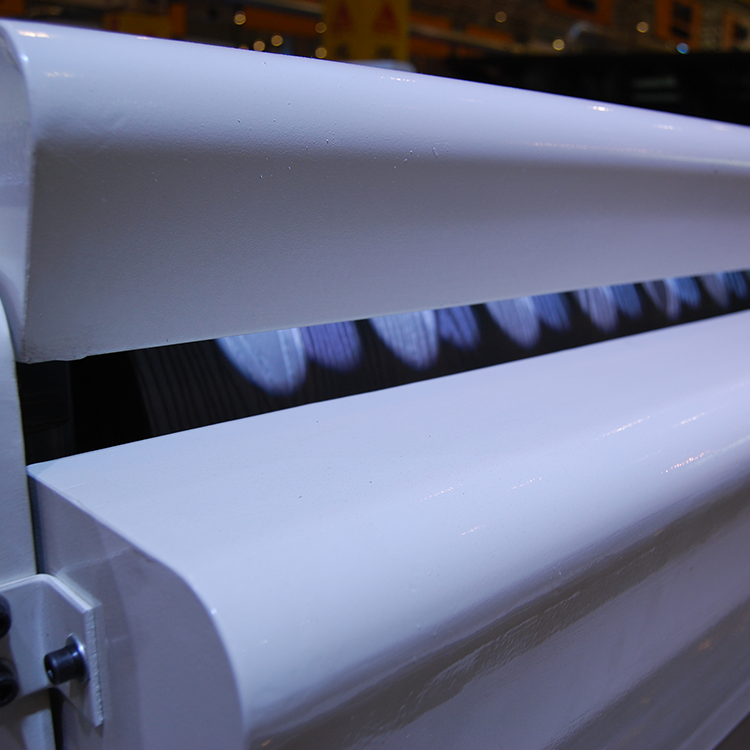

Steel Hatchback Cabinet

The upper horizontal cover can be opened for easy maintenance and observation.It prevents the operator from coming into contact with the moving parts of the machine equipment.

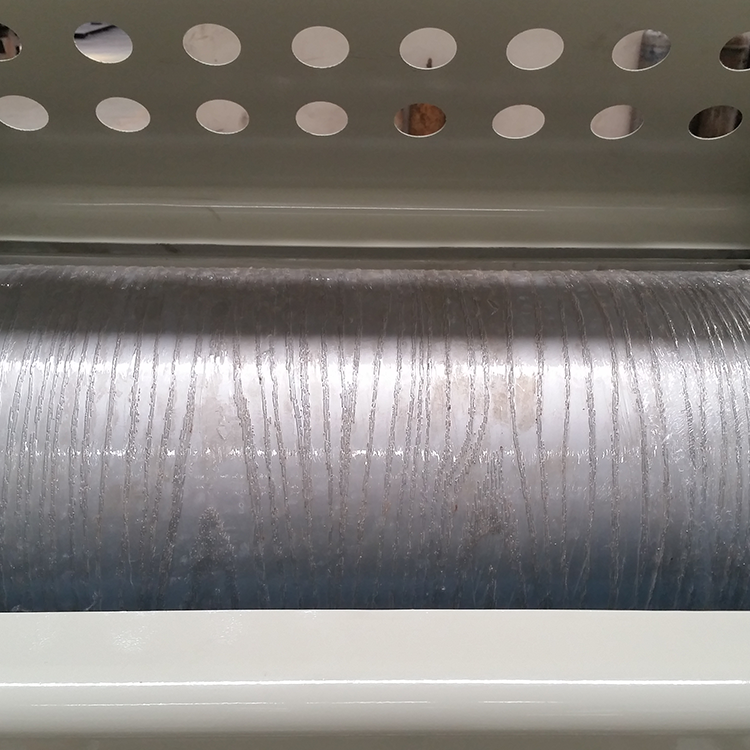

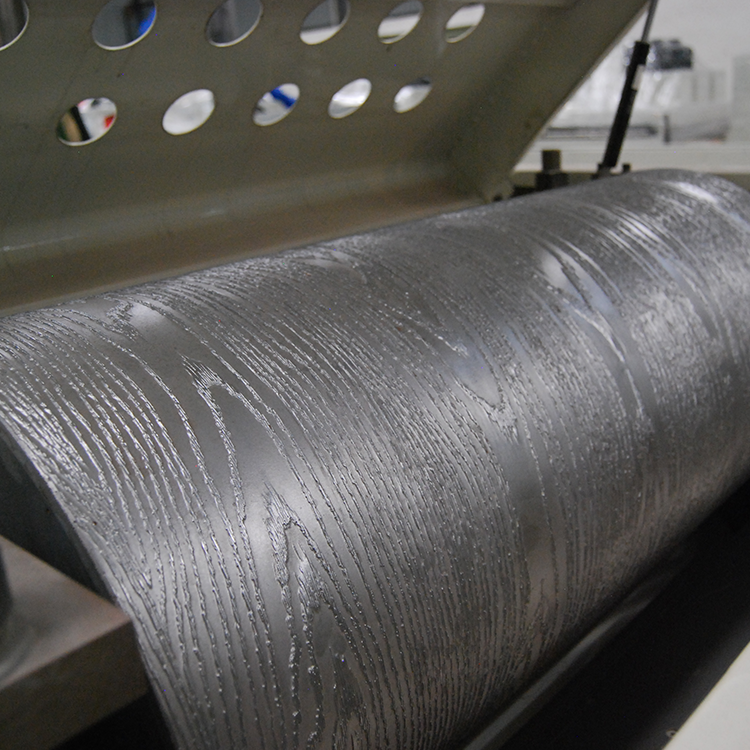

Laser Engraving Embossing Roller

The surface of the embossing roller applies a carburizing process on the surface to ensure high hardness and abrasive resistance.

Stable Lifting Base

According to the thickness and hardness of the wood sheet,the lifting base can flexibly adjust the height while ensuring the support of the embossing roller.

Technical Parameters

Model	SL-TWEH1300
Overall Dimensions L/W/H	195023001700mm
MAX working width	1300mm
MAX Working Thickness	3mm
MIN Working Length	300mm
Working Speed	6m/min
Full Power	8.62kw 380V 50HZ 3P
Gross Weight	1800kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working thickness
Feeding direction
Machine body colour

Pattern

Suitable for different effect and needs

Pointed Twill
Elm Wood Grain
White Ash Wood Grain

Function

Suitable for diverse functional and application needs

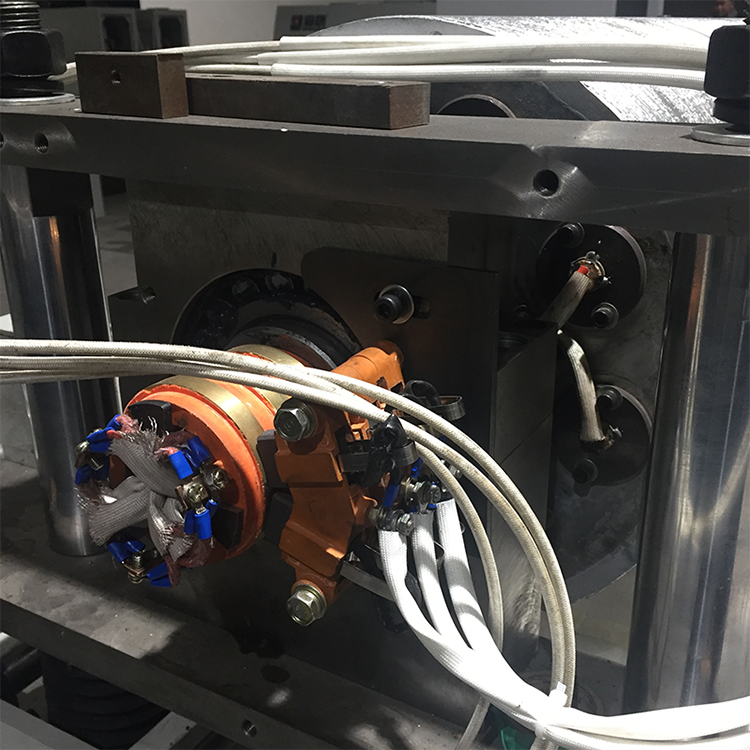

Electrical Heating

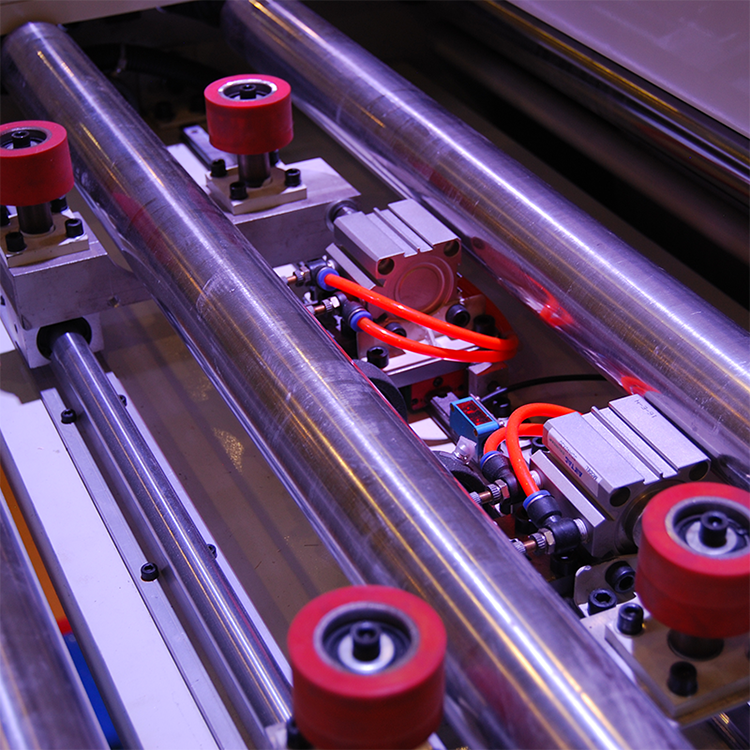

Automatic Centring
Temperature Control
Control HMI Available

Electrical

Suitable for electricity consumption in different countries

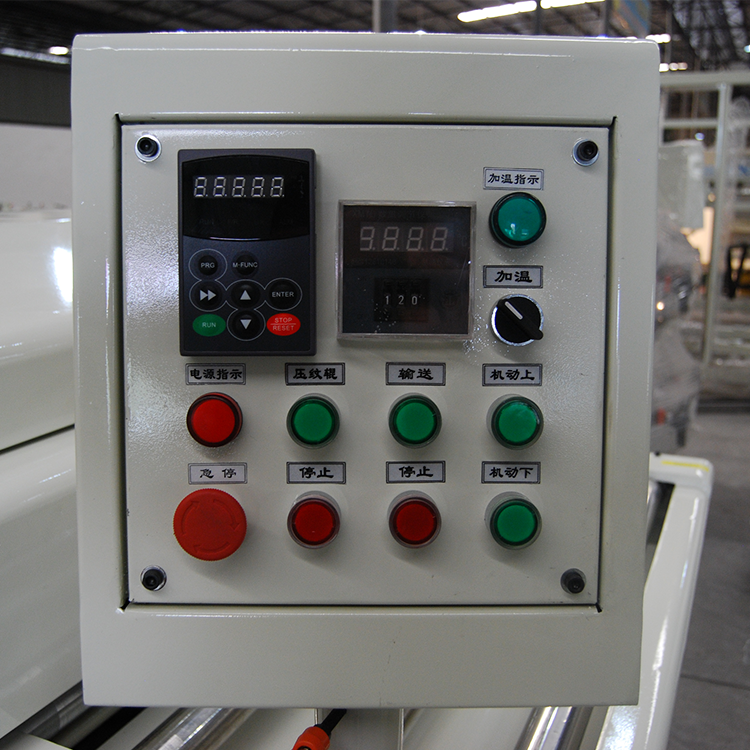

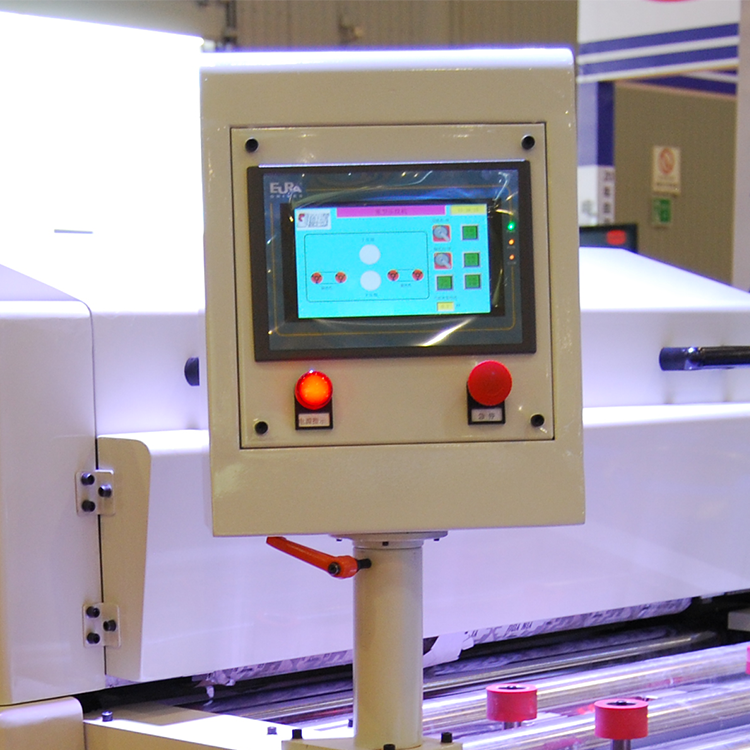

Control Panel
Various Electric Voltage
Various electric standard

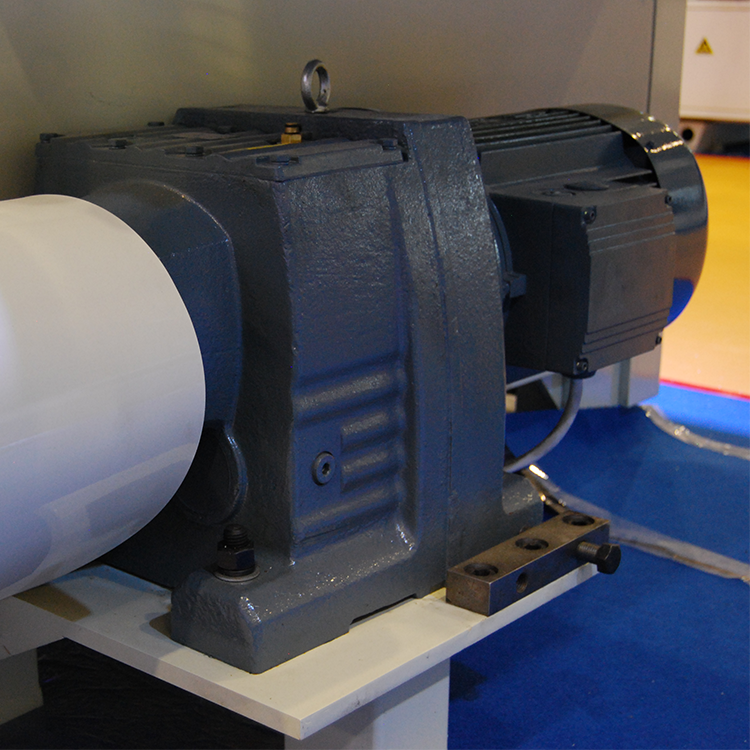

Electric Motor

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. Is medium-density fiberboard suitable for wood texture embossing machine?

MDF is extremely uniform, fine, and texture-free. It is one of the most commonly used and ideal substrates for wood texture embossing machine (especially in panel furniture).

It can perfectly replicate any complex texture of the mold, with clear and sharp edges and a smooth surface, and is particularly suitable for fine carving, imitation wood grain, imitation leather grain, imitation stone grain and other effects.

However, the strength of MDF itself is limited, and it needs to be protected with veneer or high-quality paint after embossing.
2. Can the texture of the wood texture embossing machine be customized?

The embossing roller can be customized and the texture can be flexibly switched to meet the needs of personalization or different products.

This way of customizing and replacing the embossing roller is the core means to achieve diversified and personalized surface textures in furniture production.
3. How to deal with the embossed board?

After embossing, the wood surface texture is uneven, and generally no sanding is required or only light sanding is done.

Use the rubbing process to highlight the texture.

Finally, the primer and topcoat process are crucial to the final effect and protection.
