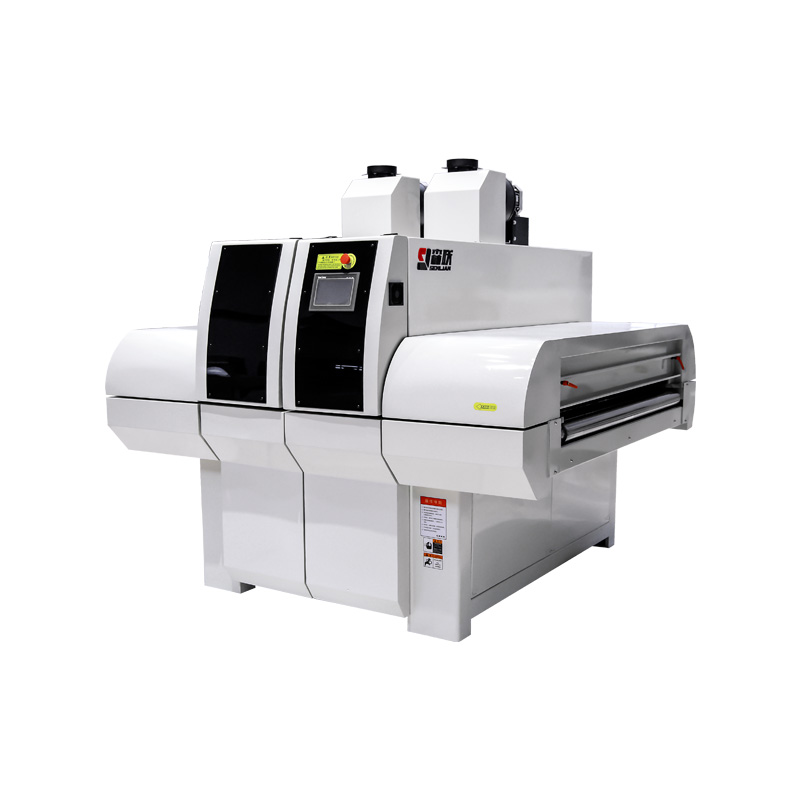

UV Curing Machine

Model SL-TGCD

The UV curing machine is an efficient curing oven for drying UV paint.

The UV curing machine applies UV light to the UV paint, curing it immediately without releasing any harmful substances. This process significantly saves the paint drying time and storage space.

Usually, selecting different UV lamps allows for the precise matching of the number and angle of UV lamps to the varnish or color of UV paint, whether it's a sealer, primer, or finish. This is suitable for various products, including wood, glass, fiber cement board, plate metals, PVC, ceramics, and marble.

How does uv curing machine work?

Base Materials

Wood
Glass
Metal Sheet
PVC

Advantages

Fast drying within seconds

The UV curing machine ensures complete drying of the paint within 3 to 5 seconds through photochemical reactions, eliminating the need for additional drying rooms and significantly reducing drying time and space requirements.

Low energy consumption

Compared to traditional heat-curing methods, the UV curing machine consumes less energy because they don't require high-temperature heating for extended periods. LED tubes and electronic light sources can save electric power and increase lamp life.

Environment-friendly

The UV coating has a single-component chemical structure that cures instantly into a film when exposed to ultraviolet light. It contains no volatile organic compounds (VOCs), which helps reduce air pollution and is beneficial for both environmental protection and human health.

Excellent physical properties

After the process of UV curing machine, the coating layer has good hardness, wear resistance, and chemical resistance. It can effectively protect the surface of objects, such as in the case of coating wooden floors.

User-friendly

The UV curing machine analyzes input parameters and adjusts curing conditions in real-time to ensure uniform curing. Whether for small-scale or large-volume production, it enables operators to get consistent, high-quality results with minimal effort, eliminating complex manual adjustments and extensive training.

Standard Characteristics

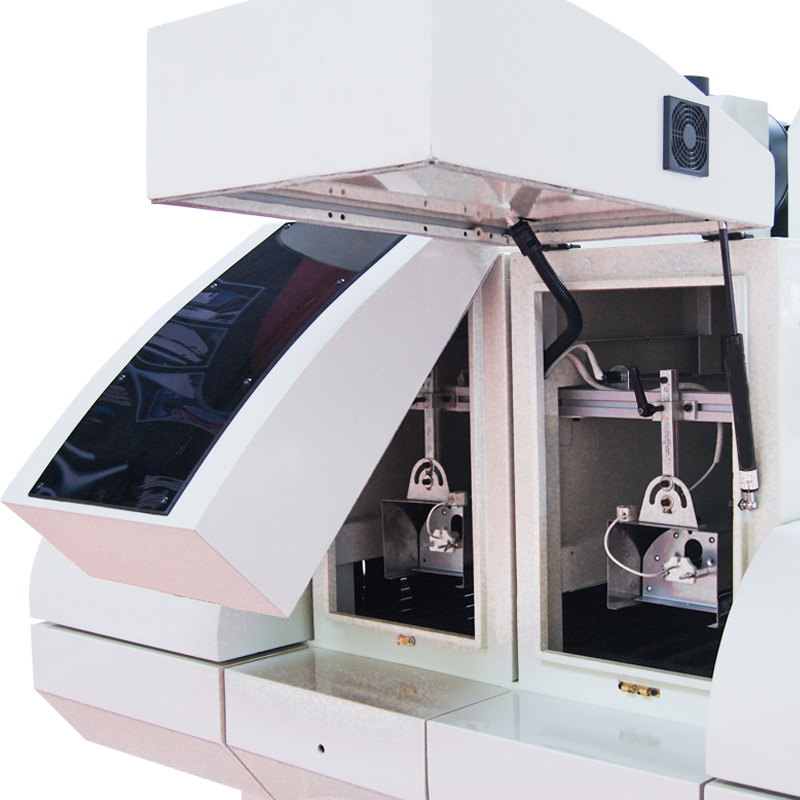

Hatchback lamp cabinets

Every UV lamp has an independent cabinet full of aluminum reflection layers internally, maximizing the use of light and reducing the interaction of different UV lights.

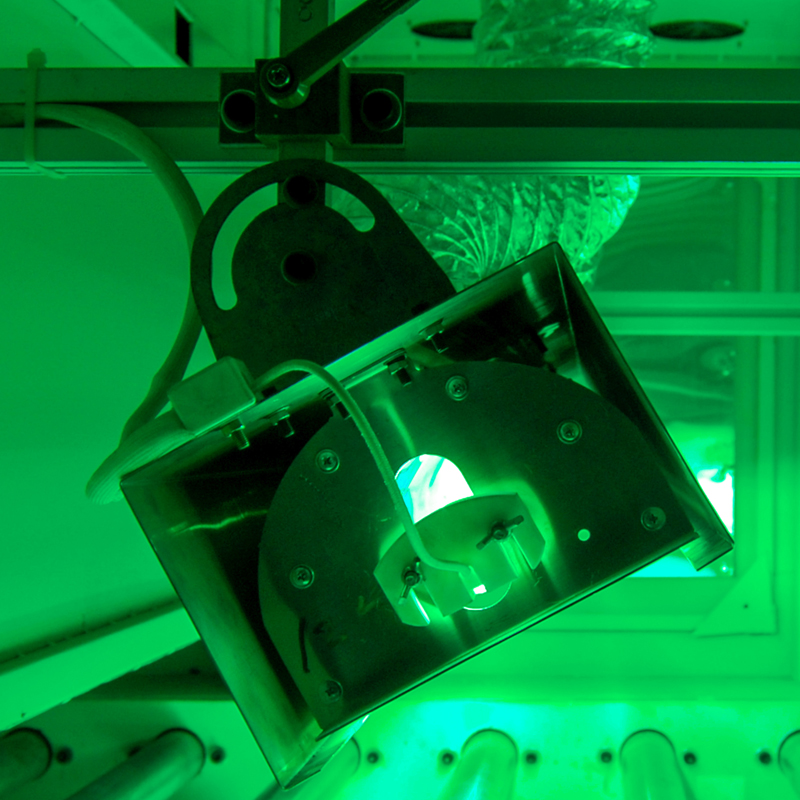

UV light lampshade

Flip-type arch alloy aluminum mirror lampshade increases the intensity of UV light, making it easy to adjust height, and angle, convenient for lamp exchange.

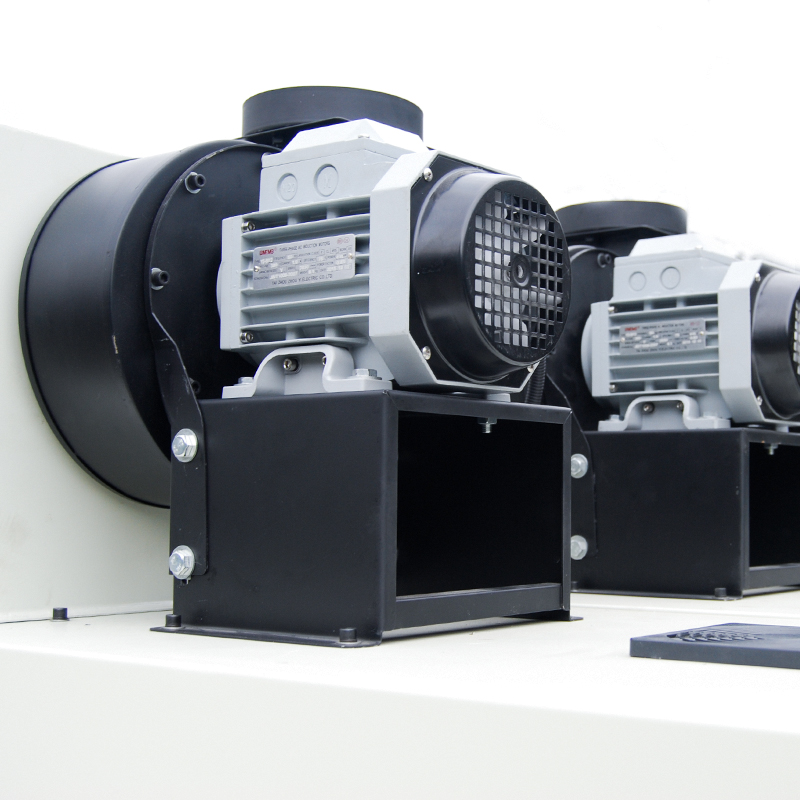

Top cooling fans

A strong cooling fan on each top of the lamp cabinet, timing exhaust the internal high temperature reduce the harmful to products.

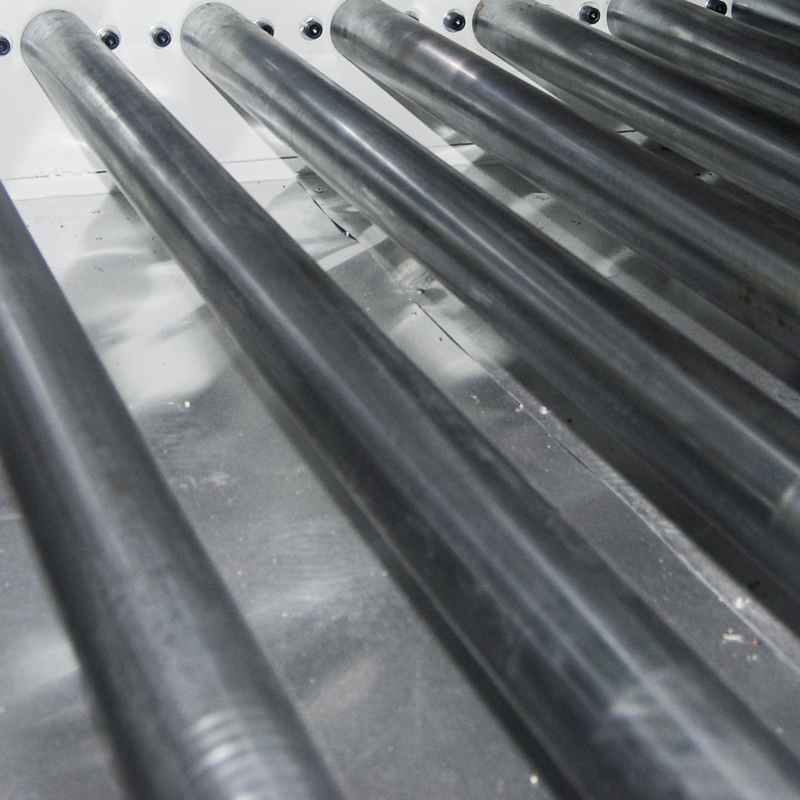

Steel rollers conveyor

Heat resistant steel rollers ensure convey stably without off center, reduce its heat accumulation and the paint pollute the back of products.

Technical Parameters

Model	SL-TGCD1300
Overall dimensions L/W/H	203520001960mm
Max working width	1300mm
Min working length	300mm
Max working thickness	100mm
Working table height	850mm(900~950mm)
Working direction	Right to left
Recommended working speed	8 to 12m/min
Full power	Mercury 21.45kw (Gallium 22.85kw)
Gross weight	1500kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working thickness
Feeding direction
Machine body colour

UV lamp

Suitable for different UV paint

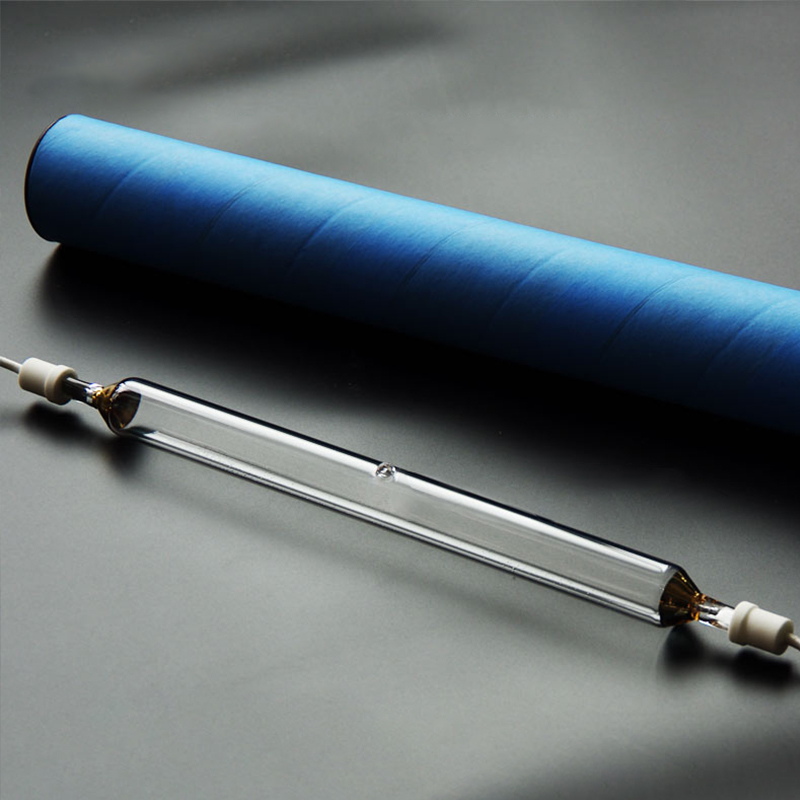

UV Mercury
UV Gallium

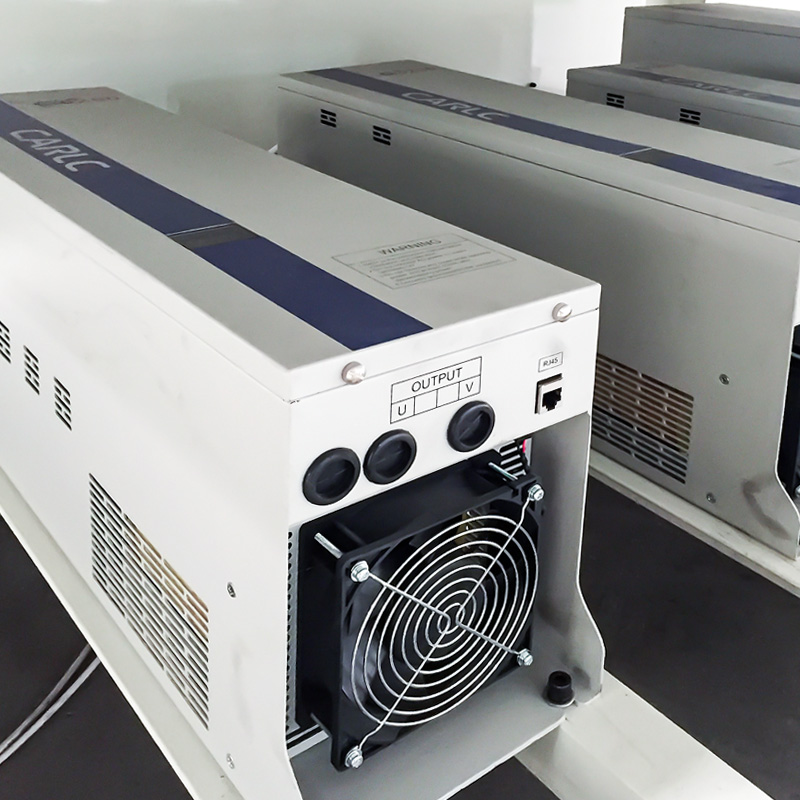

Electronic light source

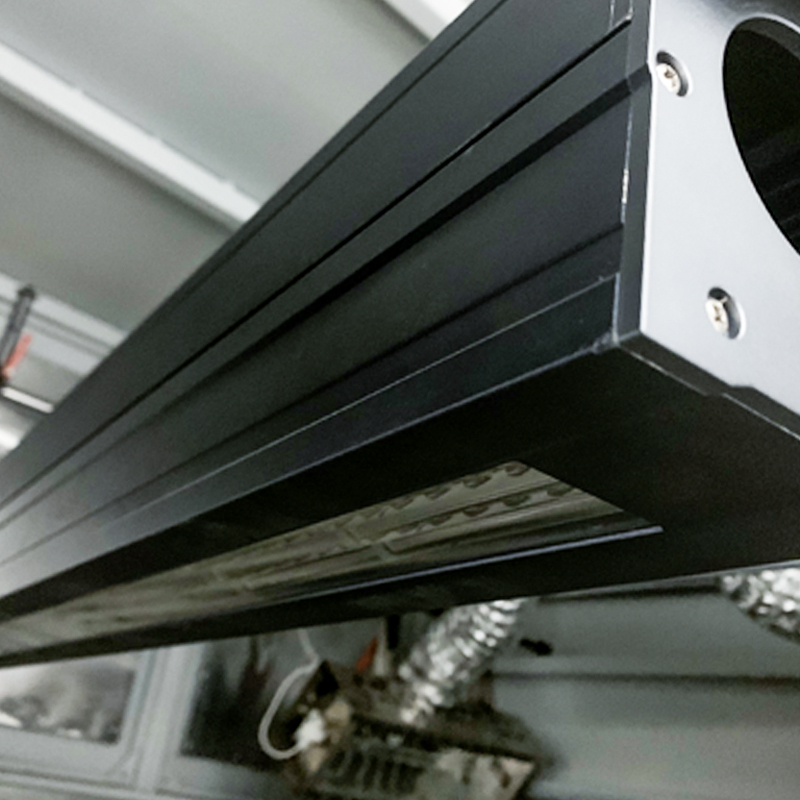

LED UV

UV light angle

Suitable for different UV curing sides

Top UV light
Top oblique UV light
Side UV light

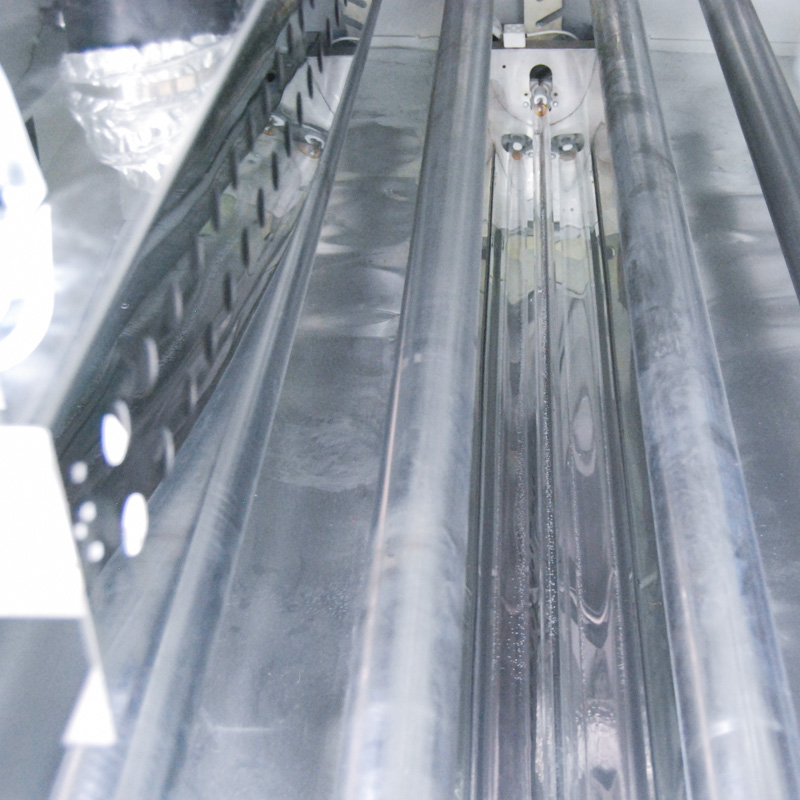

Back UV light

Conveyor

Suitable for different products

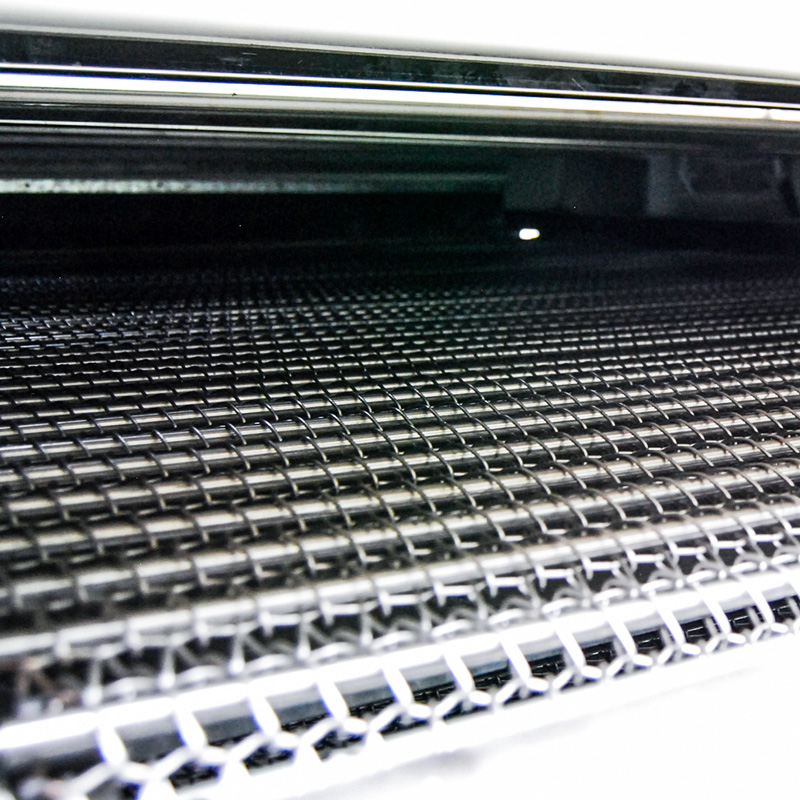

Stainless steel net belt

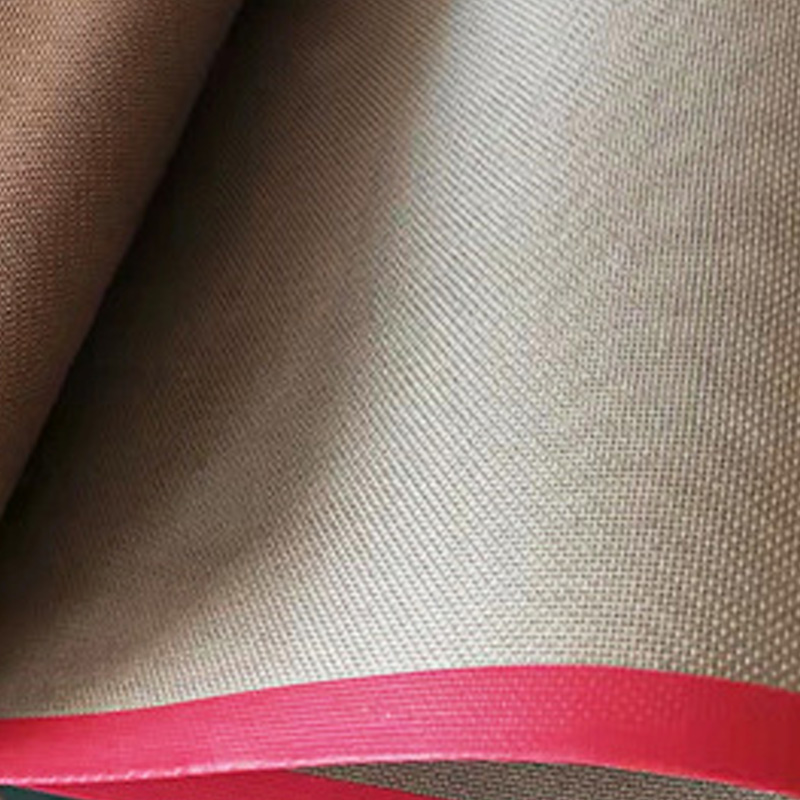

Teflon net belt

Function

Suitable for diverse functional and application needs

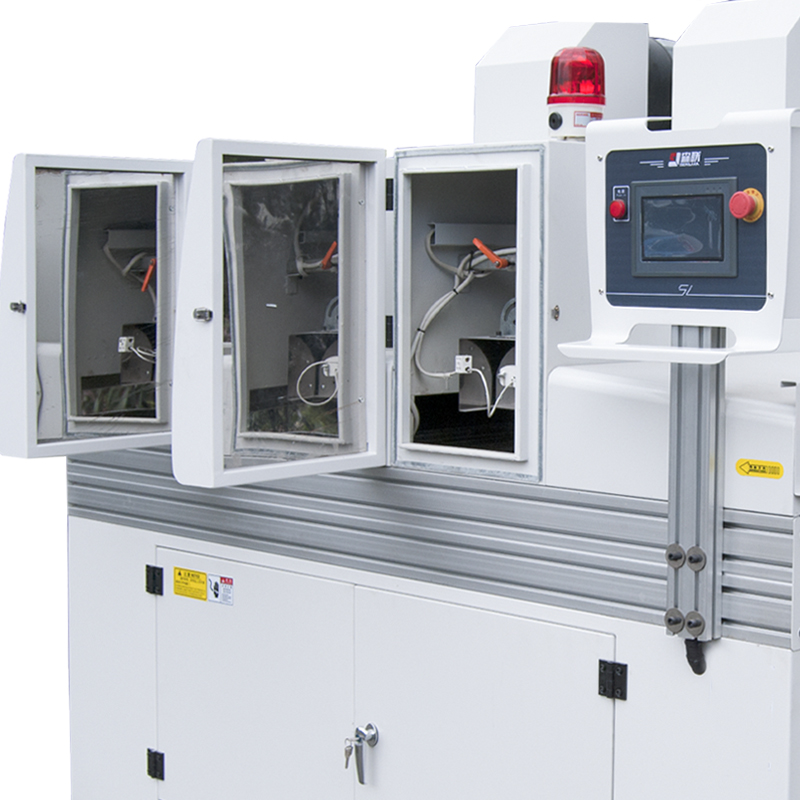

Simple structure

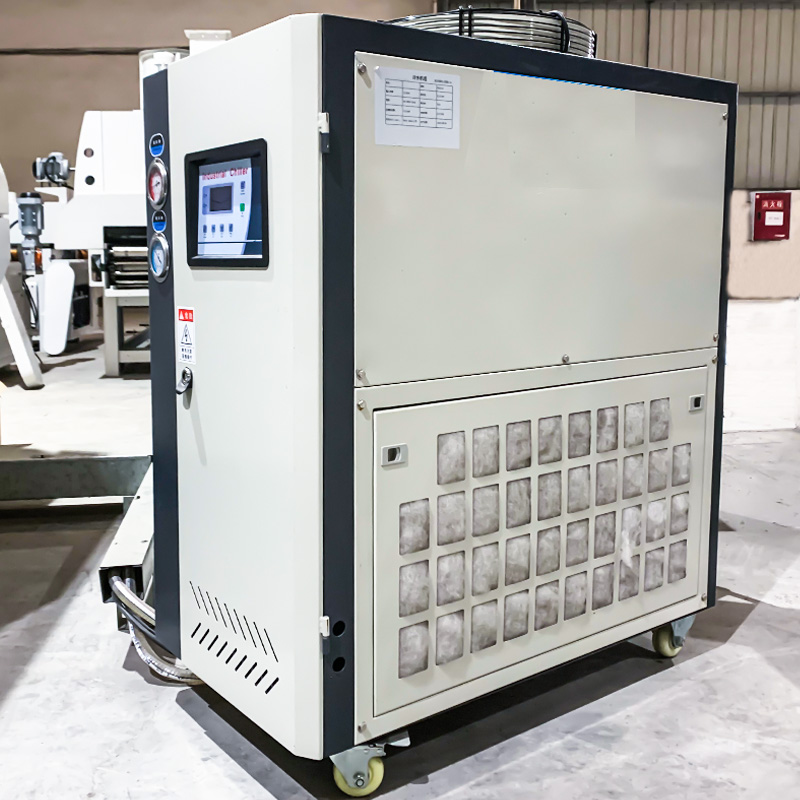

Water recycling cool

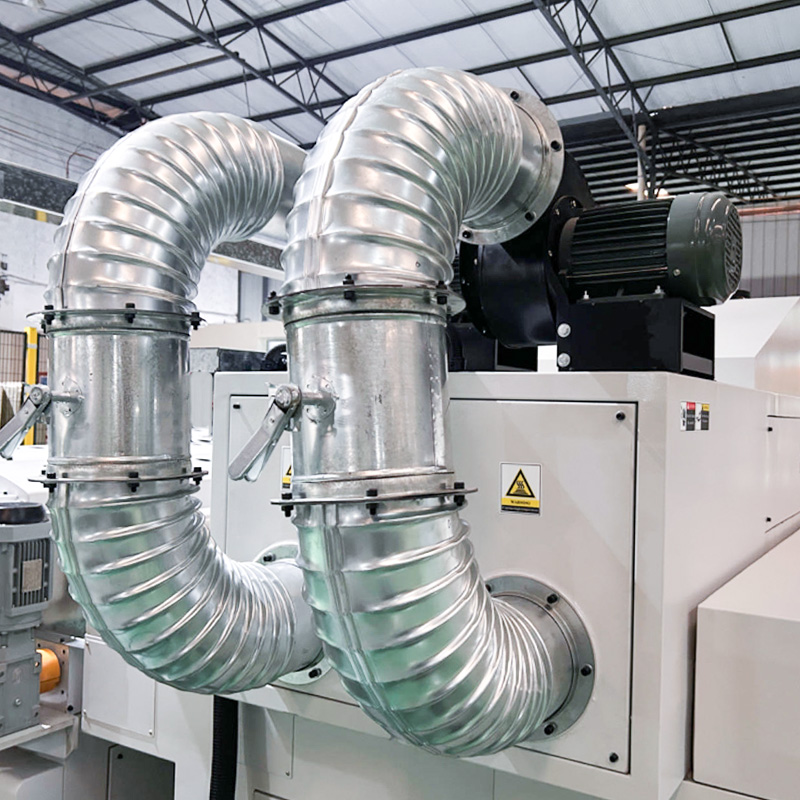

Extra cooling fan
Quartz glass insulation

Electrical

Suitable for electricity consumption in different countries

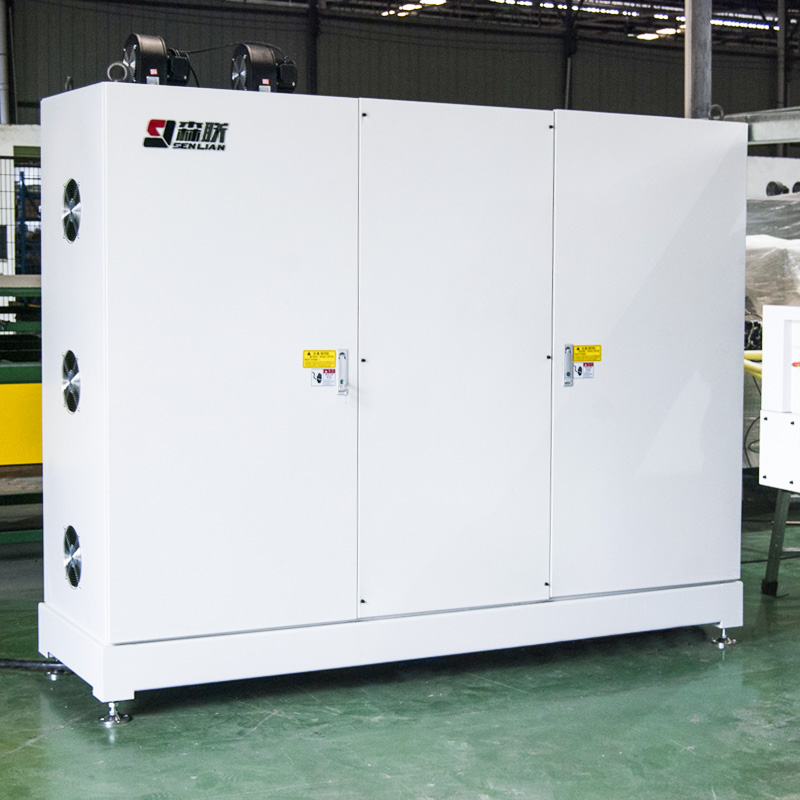

Stand electric cabinet
Various electric voltage
Various electric standard

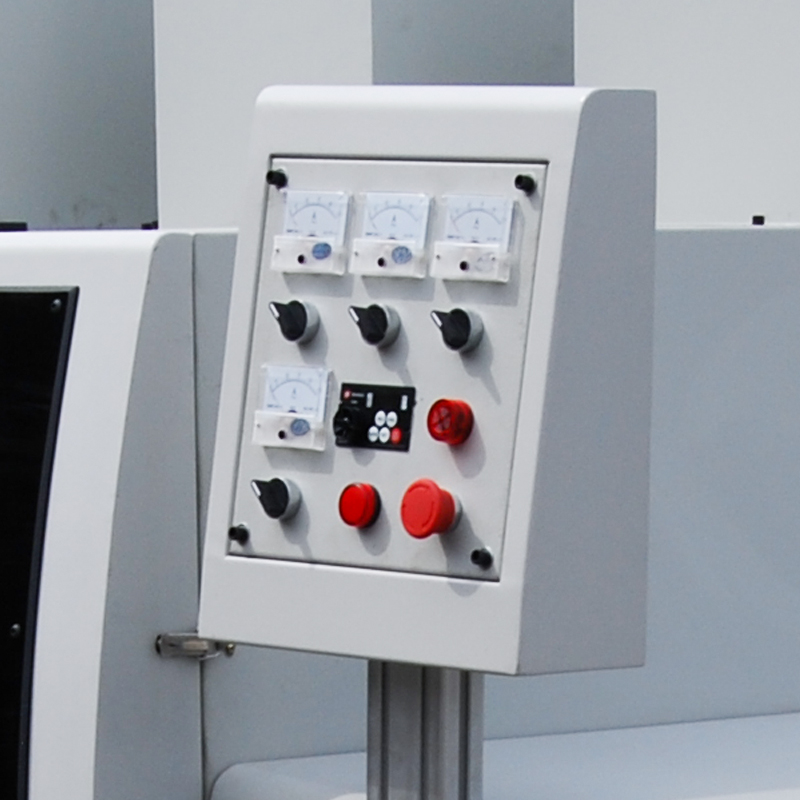

Button control panel

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. How do I choose the right UV lamps for my UV curing machine that are best suited for my products?

UV Mercury lamps: Emitting broad-spectrum ultraviolet light, UV mercury lamps are well-suited for curing transparent UV paints. Their intense and balanced UV output can penetrate the clear film, enabling uniform curing across the coating thickness. Thus, they're ideal for applications like clear coatings on wood furniture, doors, floors, glass, or transparent plastics.

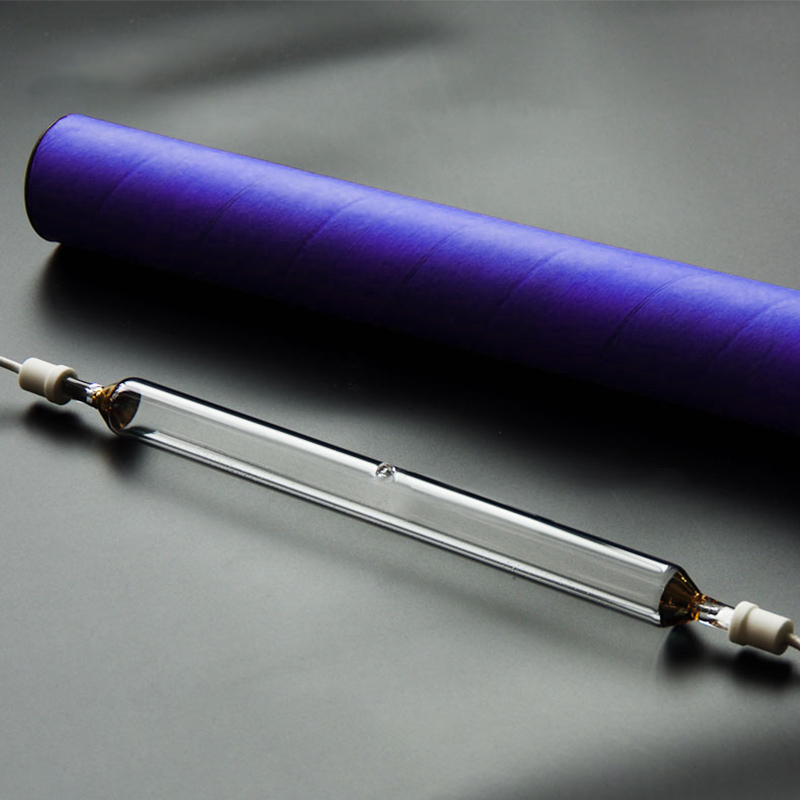

UV Gallium lamps: Gallium lamps are designed to emit a specific UV wavelength range, effective for curing colored UV paints. Colored paints' pigments absorb and scatter UV light, but gallium lamps' unique spectrum matches their curing needs. This ensures efficient curing while maintaining color integrity. They're popular in MDF furniture finishing and decorative coatings.

UV Iron lamps: With their distinct UV emission, iron lamps are the top choice for dark-colored UV paints. Dark-colored paints have high-concentration pigments that impede UV penetration. Iron lamps' wavelengths can penetrate these thick pigment layers, activating photoinitiators in deeper coating layers for a uniform and durable cure. They're essential for black-painted products or dark-hued industrial coatings.

LED lamps: LED light is a cold light source with no radiation, which provides higher energy output and saves around 90% power compared to traditional UV lights. It is suitable for materials that are prone to deformation at high temperatures, such as PVC and cardboard. In addition, for some special coatings, only LED lights can be used to achieve deep curing.

In summary, the right UV lamps for the UV curing machine depend on various base materials, coatings, and curing requirements. Generally, the mercury lamp is sufficient for transparent paint, while the gallium lamp works well for color paint. The iron lamp is ideal for dark paint. At times, these lamps work together to achieve the best coating effect.
2. How many UV lamps are installed in your UV curing machine?

Our UV curing machines come standard with two, three, or five lamps, and we can design them to cure the surface, sides, and even the back of your products. Additionally, we offer customized options including single-lamp, four-lamp, five-lamp, and even 14-lamp UV curing machines for our clients. Please contact us for further discussion.
3. What is the working principle of UV curing machines?

The main principle behind the UV curing machine hinges on the photochemical reaction.

UV coatings contain photoinitiators. When exposed to ultraviolet light, the photoinitiators absorb UV energy. This absorption causes the photoinitiators to break down into highly reactive free radicals, which then initiate a polymerization reaction within the coating.

During polymerization, the individual molecules in the coating, known as monomers and oligomers, begin to link together, forming long-chain polymers that gradually build up a three-dimensional network structure. As a result, the liquid coating rapidly transforms into a solid, hard film. This entire process occurs almost instantaneously, typically within 3-5 seconds.
4. Can I customize a UV curing machine with lower energy consumption?

Sure. To reduce energy consumption, we offer options for electronic light sources and LED lamps. If you have any other special demands, please click CONTACT US for further discussion.
