Coating Machine

Roller Coating Machine

Model SL-TRD

The roller coating machine is widely used equipment for flat product coating.One application rubber roller in conjunction with one doctor steel roller forms a coating unit.It pumps the liquid paint, then recycle it evenly coating on the flat surface, all power parts are regulated by frequency conversion control. The HMI touch screen enables intuitive and efficient control of the entire machine.

The roller coating machine is very flexible that works independently or joins to a whole coating line, it works fast and coating evenly, easy to control and test that suitable for sealer, primer, or topcoating.

Usually by choosing different roller materials, the number of roller groups, and rotating direction of roller coating machine to match various paints such as UV, PU, Water based, etc, or various products coating such as wood, glass, fiber cement board, plate metals, PVC, ceramics, and marble, etc.

How does roller coating machine work?

Base Materials

Wood
Glass
Metal Sheet
Fiber Cement Board

Advantages

99% Paint utilization

The roller coating machine has a liquid coating circulation function, which increases the coating utilization rate to 99% through the body's return coating groove and high-flow pump.

Continuous production

Equipped with an automatic control system to achieve automation of the coating process and reduce manual intervention. By connecting with a paint drying oven and surface treatment equipment, continuous automated production can be easily achieved.

Precisely coating

The stable mechanical structure ensures the precise coating of various flat products. The application roller, doctor steel roller, and conveyor belt adopt separate motors, reducers, and frequency conversion control, with the best accuracy and stability.

Environment-friendly

The use of liquid coating reduces the emission of volatile organic compounds and reduces air pollution.

Convenient

The roller coating machine replaces traditional manual spraying or brushing, with high efficiency, low investment cost, paint savings, and simple operation.

Standard Characteristics

Application rubber roller

Every rubber roller made by standard process and strict check, grinding middle higher precisely ensure entire roller coating evenly.

Doctor steel roller

Chromed steel roller cylindrical grinded accurately, equipped with adjustable steel scraper make the paint on the roller smoothly and reduce colour aberration.

Roller electric lifting

Convenient electric lifting and the hand wheel fine turning assist to adjust the height of rollers faster and accurately, advanced dovetail slot structure to ensure stability.

Roller quick release

Quick release design helps to the rubber roller maintainance or exchange new more easily, especially for wide heavy rollers.

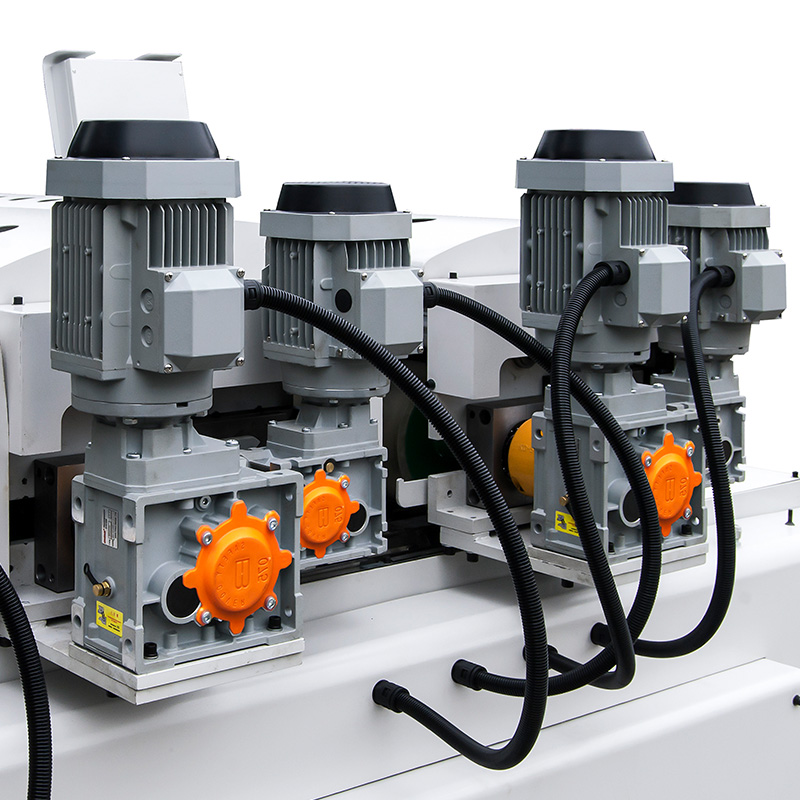

Motor reducer

Each transmission part connects to the motor and reducer independently, high gear rate maximizes the power of the motor constantly steably.

Conveyor

Scratch-resistant PVC belt is supported by big carrier rollers ensure smooth delivery, reduce the belt abrasion or off center.

Technical Parameters

Model	SL-TRD1300
Overall dimensions L/W/H	185022501750mm
Max working width	1300mm
Min working length	300mm
Working thickness	3mm to 100mm
Working table height	850mm(900~950mm)
Working direction	Right to left
Recommended working speed	8 to 12m/min
Full power	6.74kw (UV 12.74kw)
Gross weight	1600kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working thickness
Feeding direction
Machine body colour

Machine structure

Suitable for different products and process

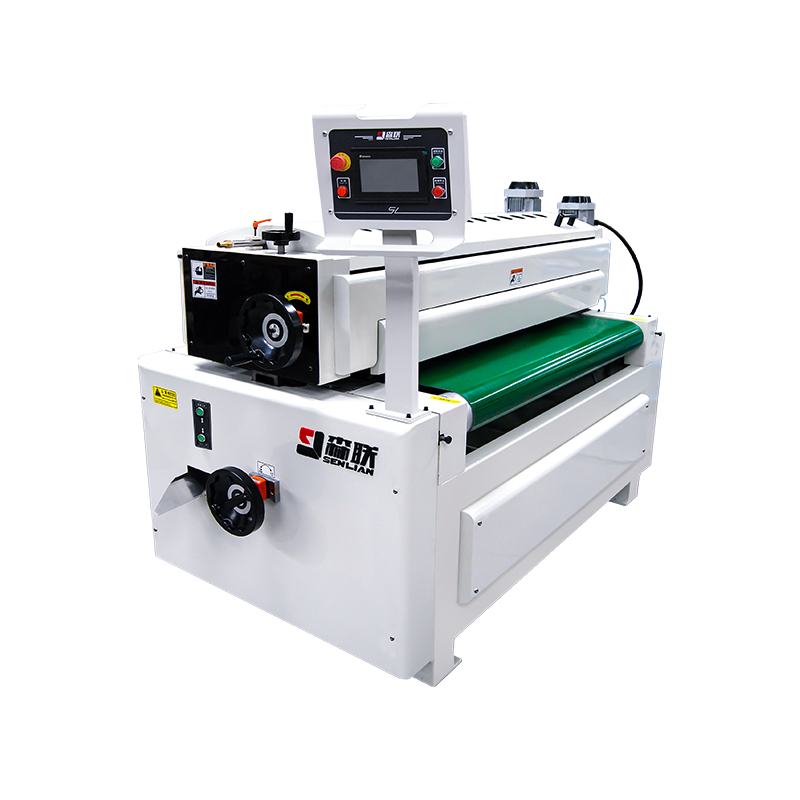

Single roller coater

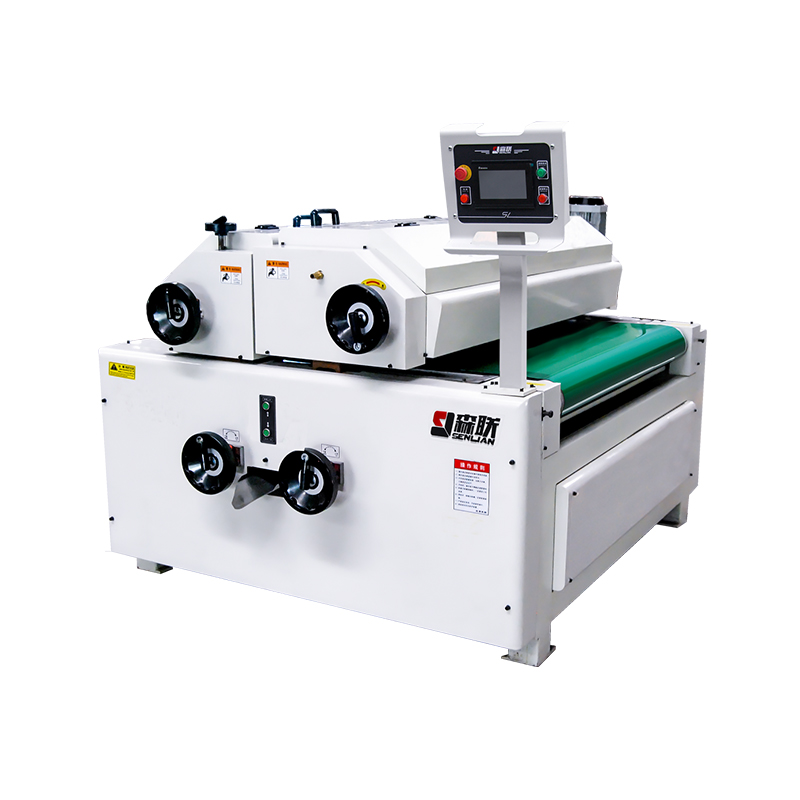

Putty filling coater

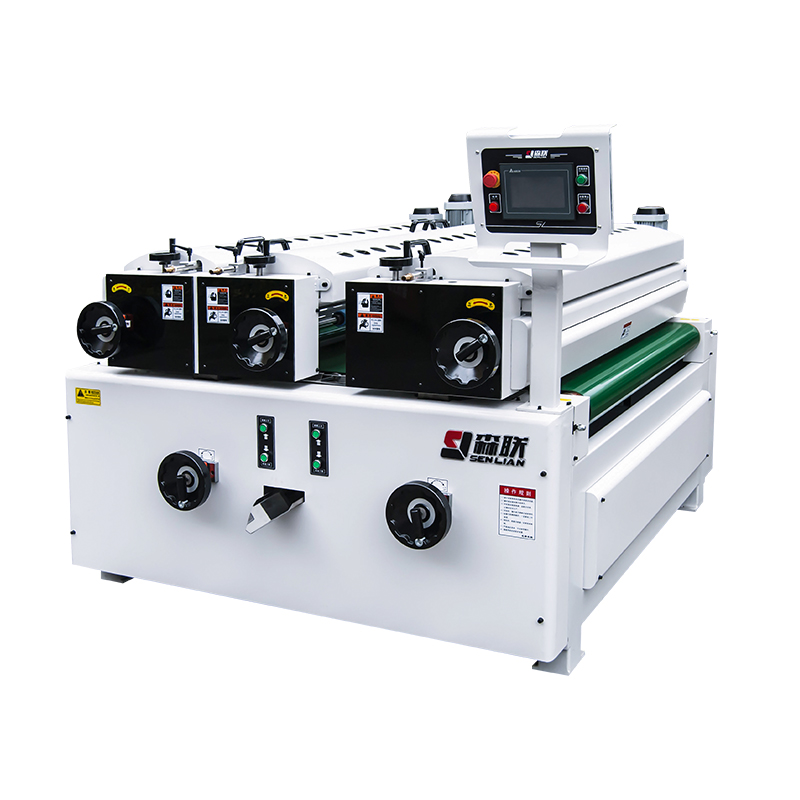

Dual use double roller coater

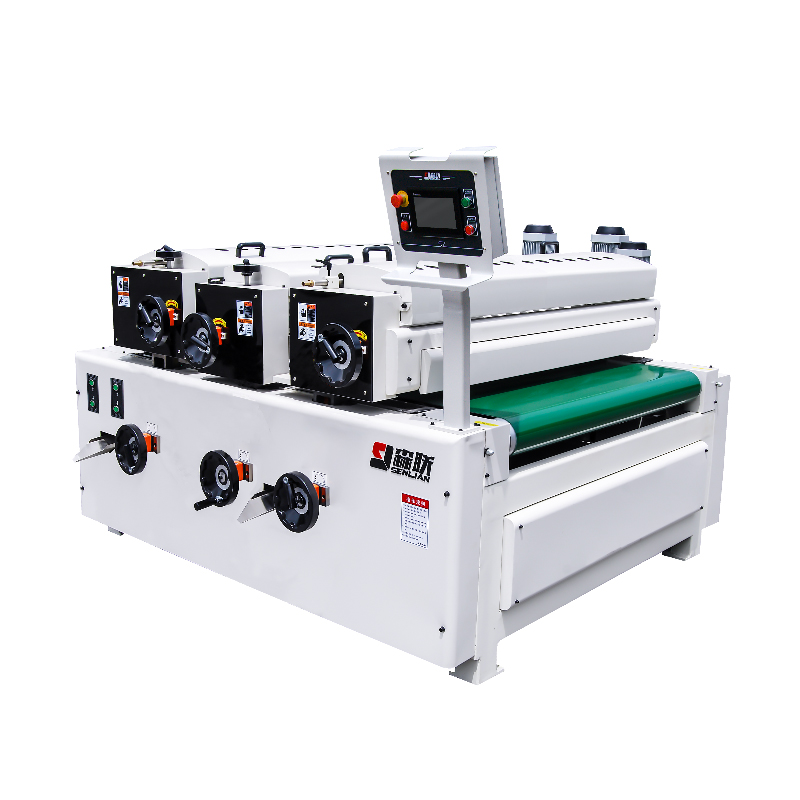

Three roller coater

Roller

Suitable for different materials and paint

EPDM roller
Laser engraved roller
Sponge roller
Soft roller

PU roller
Hydrophilic roller
Corrosion resist roller
Pattern print steel roller

Rotate direction

Suitable for different coating effects

Clock wise
Anti-clock wise
Reverse
Any direction switch

Conveyor

Suitable for different products

PU belt
Steel rollers
Stage rubber rollers
Gear shape rollers

Function

Suitable for diverse functional and application needs

Divided paint recycle
Roller auto fast lifting
Memory servo control
Belt auto cleaning

Steel roller heating
Paint flowmeter
Paint TEMP monitor
Paint auto stir

Electrical

Suitable for electricity consumption in different countries

Stand electric cabinet
Various electric voltage
Various electric standard
Explosion proof motor

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. How do I choose the right roller materials for my roller coating machine that are best suited for my products?

EPDM roller: Suitable for scratch-resistant and chemical-resistant products, it can meet the needs of most products, such as wooden doors, floors, furniture, cabinets, number plates, etc.

Laser engraved roller: More suitable for high gloss coating, such as colored glass coating, wood panels, etc.

Sponge roller: Mostly used for water-based color rubbing, especially on solid wood, flooring, veneer products, etc.

Soft roller: As the name implies, the roller is very soft and is suitable for rolling products with R angles and grooves within 10mm on the surface.

PU roller: Suitable for rolling PU paint, it is widely used in the painting of exterior wall panels.

Hydrophilic roller: This is more suitable for water-based paint.

Corrosion resist roller: We use this rubber roller mainly in the seismic isolation board industry, etc.

Pattern print steel roller: Mainly used in stainless steel plates, aluminum plates, and other industries. We can customize different patterns according to your needs.

In summary, different rubber rollers are suitable for different products and coatings. Using them in a targeted manner can maximize the use of the characteristics of the rollers to meet coating needs. If you still don't know what kind of rubber roller is suitable for your product, this is very normal. Welcome to consult us. We will answer you with professional knowledge.
2. How to control the coating thickness with the roller coating machine?

Method 1: Adjust the gap between the rubber roller and the stainless steel roller. The smaller the gap, the thinner the coating. The wider the gap, the thicker the coating.

Method 2: Increasing the pressure of the rubber roller can make the coating thinner while reducing the pressure can make the coating thicker.

Method 3: When the speed of the rubber roller and the conveyor is the same, the faster the stainless steel roller goes, the thicker the coating. The slower the stainless steel roller goes, the thinner the coating.

Finally, adjusting the coating thickness requires the operator's patience and proper adjustment according to the roller coating machine and your ideal products. During this process, you are not working alone. We will use our experience and technology to safeguard you.
3. How to make good products with the roller coating machine?

Base material: Preparing the base materials correctly ensures the substrates are clean, flat, and without particles or defects.

Paint: Choose the appropriate paint for your products. Test whether the paint's adhesion, wear resistance, anti-yellowing, and other characteristics meet high standards.

Process: The correct coating process designed by an experienced supplier is a particularly important factor in making good products.

Equipment: Based on the substrate and coating, suitable rollers and configuration functions of equipment ensure uniform coating and excellent effect.

Operator: Operators must have received good training in machine operation, troubleshooting, cleaning, and maintenance.

Environment: Optimize environmental conditions, such as temperature, humidity, and dust removal.

In summary, as a supplier focusing on automatic coating machinery for more than 20 years, we will start from the six elements and provide you with comprehensive coating solutions based on your actual needs. Please consult us via email or WhatsApp.
4. How to properly maintain the roller coating machine？

The reducer of roller coating machine is maintenance-free product. All parts have been added various grease, lubricating oil and so on before leaving our factory that can be used directly. Check the silk bar, slider, etc., after two months used, re-add the new grease if needed.

After daily work off, use the paint thinner or alcohol to wash the rollers and the recycling structure clean without paint remains, release the rubber roller and steel roller at last, in case of damage of rollers.

Turn off each motor, and then cut the total power supply.

In addition, our after-sales service engineers will provide you with detailed tutorial videos for the roller coating machine.
