Painting Machine

Robotic Painting Machine

Model SL-TS-ROBOT

The robotic painting machine is an intelligent equipment that can be used for mass painting. It features a highly flexible six-axis structure, which can mimic the flexible spraying movements of human arms. It expertly sprays products from all sides and angles using high-quality coating materials, ensuring an outstanding coating effect.

Cooperating with various spray guns, customized conveyors, and an innovative 3D auto-scanning function, the robotic painting machine can easily achieve multifunctional and intelligent production.

The robotic painting machine is particularly suitable for tridimensional, curved, and polyhedral products, even designed for automatic loading and stacking.

How does robotic painting machine work?

Base Materials

Wood
MDF

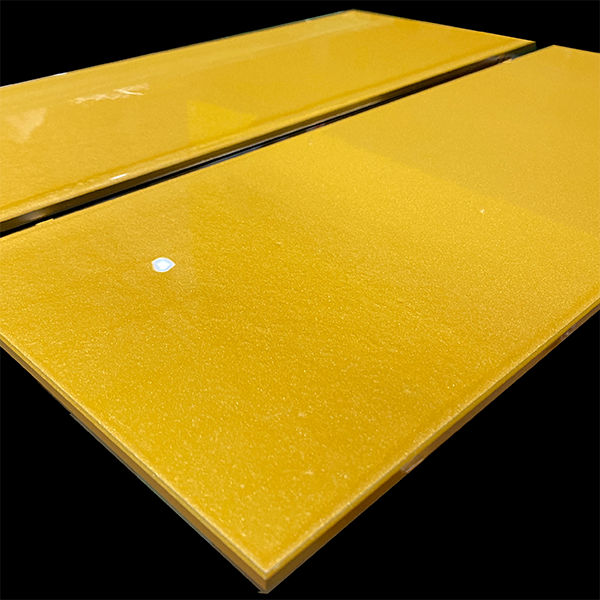

Glass

Advantages

Excellent spray effect

The GRACO air mix spray gun and plunger pump of the robotic painting machine ensure a perfect coating effect and less paint waste.

High efficiency

Flexible six axes maximize spraying flexibility instead of humans, which ensures products' six sides are sprayed evenly and fast. Continuously accurate spraying and durable working all day significantly improve production efficiency.

Robot teaching

The robotic painting machine enables spray painting of various shaped products, offering multiple functions and high compatibility. Robot teaching simplifies the spraying of complex products without the need for professional technicians to operate.

Environment-friendly

Centrally treat volatile organic compounds through environmental protection equipment to reduce pollution risks, protect the ecological environment, and promote sustainable development.

Standard Characteristics

GRACO air mix spray gun

By utilizing a low-pressure mixed air spray gun, you can minimize paint rebound and achieve a superior coating quality.

GRACO bellows pump

The plunger pump can atomize the paint better. A lower plunger frequency results in less wear and increased durability.

Yaskawa mechanical arm

Yaskawa robot arm is a highly flexible and fast six-axis robotic arm designed for efficient spraying operations.

Hand-held demonstrator

The operator can easily monitor the paint spraying room and is provided with an operating pen to prevent screen contamination in case of oil stains on the operator's hands.

Servo motor

The six-axis linkage are driven by servo motors independently, controlled by PLC ensuring accurate spray motion and precise speed adjustment.

Protective suit

It is anti-pollution and anti-static.Use high quality and strong flame retardant tightness to ensure proper elasticity of protective clothing.

Technical Parameters

Model	SL-TS-ROBOT
Robot body dimensions (LWH)	155017202000mm
Electric cabinet dimensions (LWH)	6807801050mm
Paint pump dimensions (LWH)	6004501030mm
Repeat location precision	±0.15mm
Working vertical distance	5585mm
Working horizontal distance	3106mm
Freedom degree	6 axes
S axis(root rotate)	-180°~+180° 180°/s
L axis(down arm)	-90°~+135° 178°/s
U axis(up arm)	-160°~+251° 178°/s
R axis(wrist rotate)	-190°~+190° 400°/s
B axis(wrist swing)	-50°~+230° 400°/s
T axis(wrist extend)	-360°~+360° 600°/s
Full power	5kw
Gross weight	1500kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working thickness
Feeding direction
Machine body colour

Spray Gun

Suitable for different paint and costs

GRACO air mix spray gun
Kremlin air mix spray gun
IWATA air spray guns

Spray Pump

Suitable for different paint and costs

GRACO bellows pump
Kremlin plunger pump
GRACO diaphragm pump
Pressure paint pot

Robot Arm

Suitable for different workpices and costs

Yaskawa EPX
Yaskawa MPX
Yaskawa MPO

Working Table

Suitable for different products

Stepping conveyor platform
PE Belt conveyor with 3D visual scanning
Horizontal flow platform

Electrical

Suitable for electricity consumption in different countries

MES Control
Various electric voltage
Various electric standard
Servo motor

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. What sectors use the robotic painting machine?

The robotic painting machines are widely used for wood furniture, decorations, shaped glass, car, and many other products. Welcome to contact us and explore more applications together！
2. Why choose to configure Yaskawa mechanical arm on robotic painting machines?

As a leading industrial robot brand, Yaskawa Robotics has very mature technology and reliable products. After our testing, its performance is very well. It adopts advanced servo control technology to control the positioning accuracy of spraying within 0.02mm. Besides, it has a wide range of applications. Through programming, it can realize the spraying of products of different shapes, sizes, and types. More importantly, its working stability and durability are superior.

Finally, every customer's product is unique and customer needs are diverse. If you have special needs, we can also use Chinese-made robot arms as a replacement. Please consult us and discover your tailored coating solution.
3. What benefits does the 3D visual scanning of the robotic painting machine bring us?

Higher level of automation: Automatically transmit various products' parameters to the control system through 3D scanning and then automatically paint after recognition by the robot, reducing manual intervention.

Higher adaptability: It can spray more products of different sizes, positions, and shapes, making it very suitable for painting customized products with small batches and multiple products.

More efficient: The system can automatically design the painting path and flow rate to save paint costs and reduce the time for manual data editing.

Finally, the 3D vision scanning robotic painting machine upgrades the technology compared to standard painting robots, meeting the painting needs of most products and relying less on professional personnel.
4. Can you show me how the robotic painting machine works?

Of course, there are different action trajectories corresponding to different products. Our robotic painting machine can be manually taught by guiding the robot to complete the spray painting path with a handheld teaching device, recording the position and action of each point, generating data, and then starting spray painting. Also, we can set the program to input specific sizes and generate data automatically for spray painting. In addition, there is a 3D scanning system that automatically generates background data after scanning.

If possible, please contact us and provide us with your product information. We will send you corresponding or similar running videos for your reference.
