Painting Machine

Reciprocating Spray Painting Machine

Model SL-TSWP

The spray painting machine is an automatic equipment that can be used for mass painting.

It is suitable for manufacturers who require large-scale one-time painting of the surface and four edges of products. Its compatibility allows it to match various coatings, such as UV paint, PU paint, water-based paint, metallic paint, primer and topcoat, etc. Even for products of different sizes, shapes, and materials, it can handle them with ease.

Integrated with a spacious paint booth, this painting machine is equipped with eight spray guns on two horizontal axes, running in the same or opposite direction for spraying. It has a complete positive pressure air system, automatic cleaning and paint recycling functions.

In practical applications, it is usually connected to dust cleaners, drying ovens, and sanding machines to achieve more efficient and labor-saving goals.

How does spray painting machine work?

Base Materials

Wood
MDF
Glass
Fiber Cement Board

Advantages

Mass production

With a daily output of 1200-1800 square meters, the spray painting machine has excellent performance in mass production and enables significant improvement in your productivity.

Fine spray effect

The advanced automatic spray painting system delivers outstanding painting effects on the surface and sides of products, ensuring customer satisfaction.

High compatibility

Suitable to almost all panel products spraying surface and four sides, no matter what material, shape, or coating. Besides, the painting machine can be customized for special needs.

Easy to operate

Automatic scanning, generating data, painting, recycling the coating, and self-cleaning, the painting machine simplifies manual operation and enhances user-friendliness.

Saving cost

Automation can significantly lower labor costs, as the painting machine replaces expensive painters. Moreover, an advanced painting system can reduce paint waste and improve paint utilization to 80-95% ( depending on coating properties ).

Environment-friendly

Automated painting reduces harmful gases breathed in by humans and lowers the risk of occupational diseases. The specialized device can centrally filter and treat the paint mist in the air.

Standard Characteristics

GRACO air mix spray gun

Eight adjustable GRACO middle-pressure air mix spray gun can achieve uniform atomization and gentle spray, improve the paint transmission efficiency, and reduce the paint mist rebound.

GRACO bellows pump

GRACO Merkur bellows plunger pump has 24:1 pump pressure ratio and 9L flow, can quickly switch and recover, easy to rinse and make color change, less pulse achieve even spraying effect.

Straight quiet guide rail

Two spray axes at two ends reciprocate interactively, spraying fully the moving products evenly, its HIWIN quiet straight guide rail with automatic lubricating device ensures fast and smooth action.

Bonner light curtain

High-resolution and accuracy grating U.S. Bonner light curtain with solenoid valves, automatically detects the products, controls the spray range and the switch of the spray guns.

Servo motors

The two spray axes are driven by servo motors independently, controlled by PLC ensuring accurate spray motion and precise speed adjustment.

PE belt conveyor

The PE belt has high tensile strength, good winding, oil resistance, and easy cleaning, with the automatic rectification device and internal scraper that delivers steady keep clean.

Clean trolley

At the exit of the spray booth, the automatic belt clean trolley scratched redundant paint for recycling, then wash the running belt in two stages constantly to ensure it is clean and dry during work.

Air pressure system

The big fan and filter supply the large fresh air from the top of the spray booth, creating a pressured airflow space to reduce paint mist and bring down to the back multiple filter exhausts.

Technical Parameters

Model	SL-TZWP-2S
Overall dimensions L/W/H	5000(+900)48503320mm
Max working thickness include edges	40mm
Max working thickness exclude edges	100mm
Recommended working speed	1 to 6m/min
Speed of spray gun	1 to 1.8m/s
Air flow rate	8000~12000m³/h
Air pressure	0.6mpa
Full power	13kw 380v 50hz 3p
Gross weight	5000kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working thickness
Feeding direction
Machine body colour

Spray Path

Suitable for different products and paint

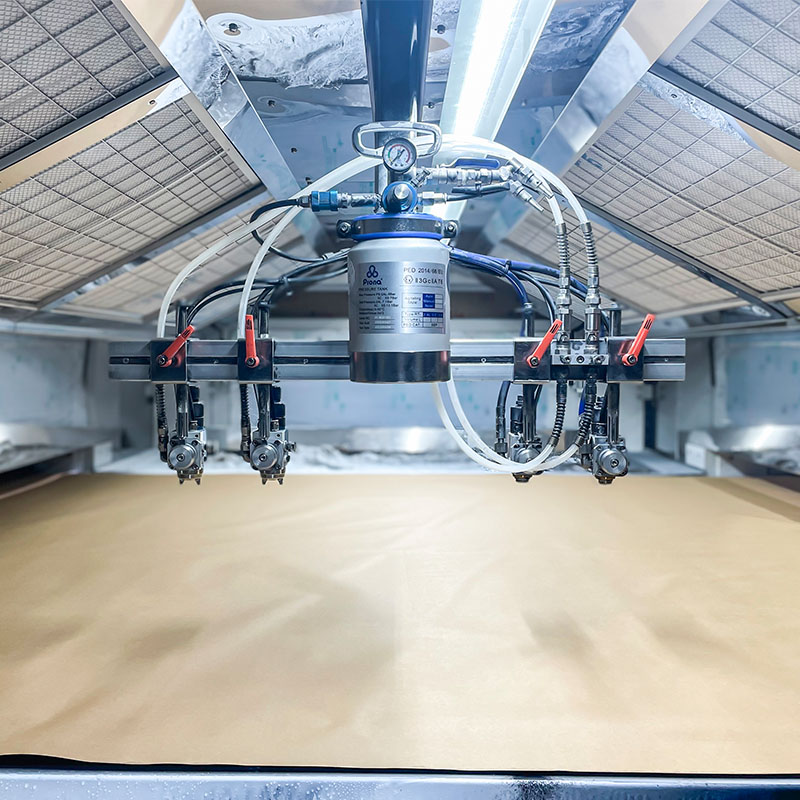

Single-axis reciprocating painting

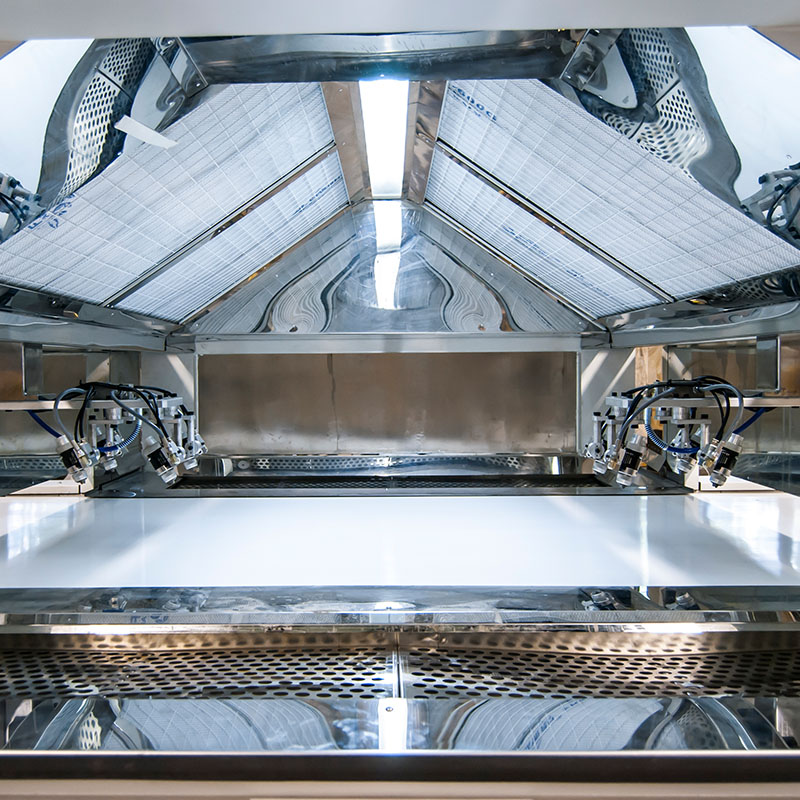

Double-axis reverse painting

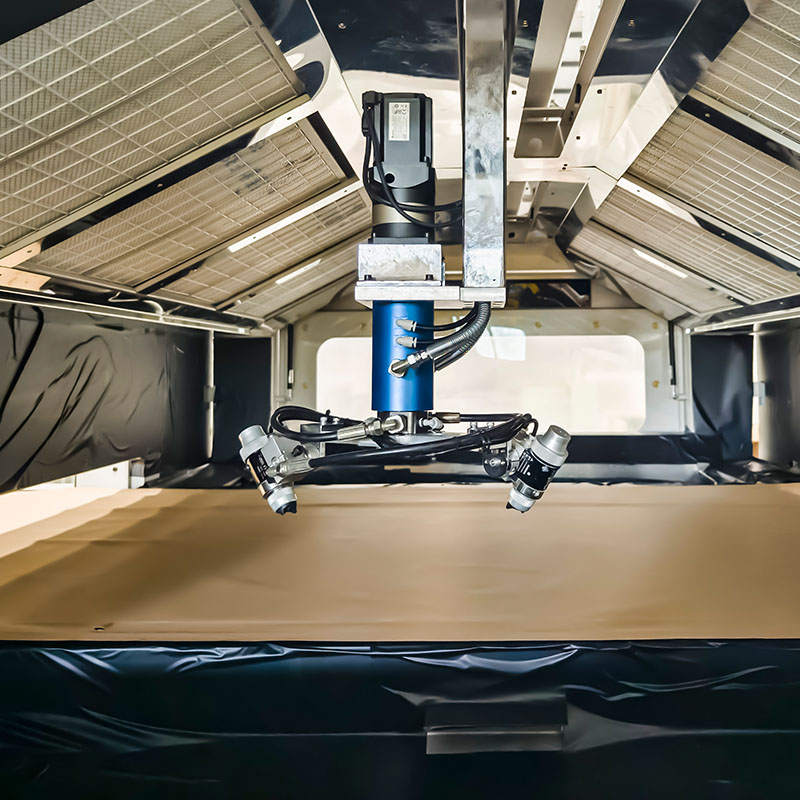

Single-axis rotating painting

Spray Gun

Suitable for different paint and costs

GRACO air mix spray gun
Kremlin air mix spray gun
IWATA air spray guns

Spray Pump

Suitable for different paint and costs

GRACO bellows pump
Kremlin plunger pump
GRACO diaphragm pump
Pressure paint pot

Working Table

Suitable for different products

Auto clean PE belt
Kraft paper vac-sorb
Steel rollers
Knife disk rollers

Function

Suitable for diverse functional and application needs

Paint proportioner
Auto paint color change
Paint Coriolis flowmeter

Electrical

Suitable for electricity consumption in different countries

MES Control
Various electric voltage
Various electric standard
Explosion proof motor

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. How does reciprocating spray painting machine work?

The mechanical structure of this painting machine mainly consists of an automatic painting system, a spraying booth, a conveying system, a liquid coating recycling and cleaning system, and a paint mist recycling system.

Substrates are transported at a uniform speed through a conveying system. Before entering the spraying booth, the detection light curtain will transmit the signal to the painting control system. When substrates enter the spraying booth, two gun racks loaded with several spray guns will move back and forth at a constant speed. At the same time, the coating injected into the spray gun through the pump will be evenly sprayed onto the surface and four sides of the substrates.

After painting, the substrates will enter the subsequent drying oven, and the excess paint remaining on the conveyor belt will be collected and cleaned centrally. The paint mist evaporated in the air will also be recovered and filtered by a specialized device.
2. How to clean spray guns of the painting machine after daily work?

Clean the spray guns after work or when switching to a different type of paint during the job. To restore the spray guns to their original position, open the large arc glass or the two small doors on the sides of the painting machine, whichever is most convenient, to access the spray guns. Remove any remaining paint from the pump and transfer it to the prepared cleaning thinner.

Prepare a suitable container under the spray guns. Press the button intermittently on the stainless steel square control panel. Keep each spray gun painting until it sprays clean washing thinner, exhausting the residual paint from the pipes.

In addition, our after-sales service engineers will provide you with detailed tutorial videos for the painting machine.
3. What industries use spray painting machine?

Spray painting machines are widely used across industries. It is common in wood furniture, cabinets, doors, bathrooms, floors, glass, marble, fiber cement walls, stainless steel, and other fields. In recent years, its applications have expanded to more industries such as medical devices, sewage treatment, acoustical materials, transportation, and auto parts.
4. What is the history of reciprocating spray painting machine?

The spray painting machine has its roots in the early days of woodworking. Its development can be traced back to the 19th century, with early attempts to create a machine capable of painting wood evenly and efficiently. In the 20th century, the concept of the reciprocating sprayer gained momentum, driven by the increasing demand for precise and efficient woodworking tools.

One of the earliest examples of a reciprocating spraying painting machine was the "spreader" developed by the German company "Hanser." This machine was designed to spray wood evenly over a surface, with its mechanism allowing for precise control over the spraying process. Over time, the concept evolved into more advanced designs, with the introduction of air compressors and other innovations that enhanced its performance.
