What is IR drying tunnel?

An infrared drying tunnel represents highly specialized machinery, playing a pivotal role in diverse industries for executing drying and curing operations.

The IR drying tunnel utilizes infrared (IR) radiation to transfer heat to the objects being dried. Infrared radiation is a form of electromagnetic radiation with wavelengths longer than visible light. When IR radiation is emitted by a heat source and directed at the material, the molecules in the material absorb the IR energy and convert it into heat, causing the moisture in the material to evaporate.

Structure and Components

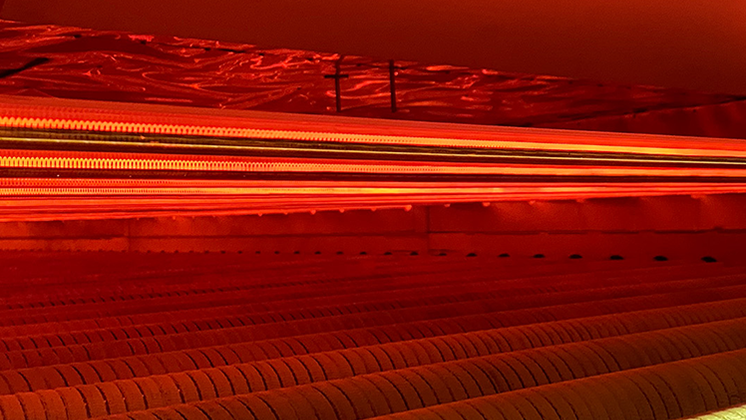

• IR Heating Elements: These are the key components that generate the infrared radiation. They are usually made of materials such as tungsten - halogen lamps, ceramic infrared heaters, or quartz infrared lamps. These elements are arranged along the length of the tunnel to provide uniform heat distribution.

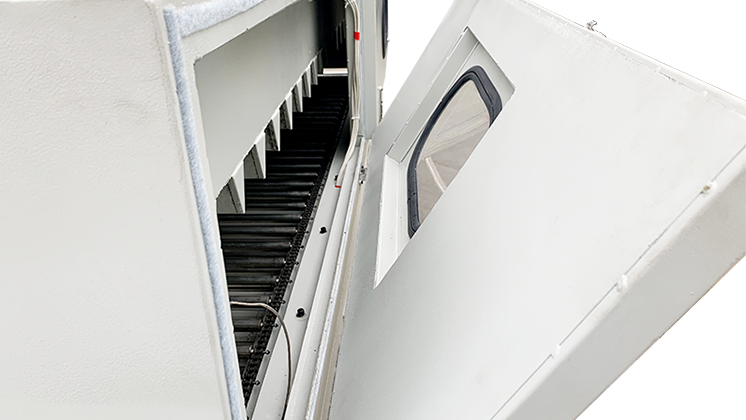

• Tunnel Chamber: It is a enclosed space through which the objects to be dried are conveyed. The chamber is designed to prevent heat loss and ensure that the IR radiation is effectively utilized for drying. It may be made of insulated materials to maintain the desired temperature inside the tunnel.

• Conveyor System: This is used to move the objects through the drying tunnel at a controlled speed. The conveyor can be a belt conveyor, roller conveyor, or chain conveyor, depending on the nature of the objects being dried and the production requirements. The speed of the conveyor can be adjusted to ensure that the objects are exposed to the IR radiation for the appropriate amount of time to achieve complete drying.

Applications

• Printing Industry: It is widely used to dry ink on printed materials. After printing, the wet ink needs to be dried quickly to prevent smudging and to allow for further processing. The IR drying tunnel can rapidly dry the ink, improving the production efficiency and quality of the printed products.
• Coating and Painting Industries: In these industries, the IR drying tunnel is used to cure coatings and paints. The heat from the IR radiation helps the coating or paint to dry and harden, forming a durable and smooth finish. This is particularly important for achieving high - quality coatings with good adhesion and resistance properties.
• Food Processing Industry: It can be used for drying food products such as fruits, vegetables, and snacks. The gentle heat of the IR radiation helps to remove moisture from the food without causing excessive damage to its nutritional value and taste. Additionally, the rapid drying process can help to prevent the growth of microorganisms, extending the shelf life of the food products.
• Textile Industry: In the textile industry, the IR drying tunnel is used to dry fabrics after dyeing or washing processes. It helps to remove the moisture from the fabric quickly, allowing for faster processing and reducing the risk of fabric distortion or color fading.

Advantages

• Rapid Drying: The IR drying method is much faster than traditional air - drying or convection - drying methods. The direct absorption of IR energy by the material leads to quick evaporation of moisture, significantly reducing the drying time and increasing production throughput.
• Energy - Efficient: IR drying is relatively energy - efficient because the heat is directly applied to the material being dried, without the need to heat the entire surrounding air. This reduces energy waste and operating costs.
• Uniform Drying: The arrangement of IR heating elements in the tunnel ensures a relatively uniform distribution of heat, resulting in consistent drying of the objects throughout the process. This helps to avoid over - drying or under - drying of different parts of the material.
• Compact Design: The IR drying tunnel has a relatively compact structure, which saves space in the production facility. It can be easily integrated into existing production lines, allowing for seamless integration with other processing equipment.
