Solutions for Pinholes (Fine Holes) Appearing on UV Paint Surface During Roller Coater Application（1）

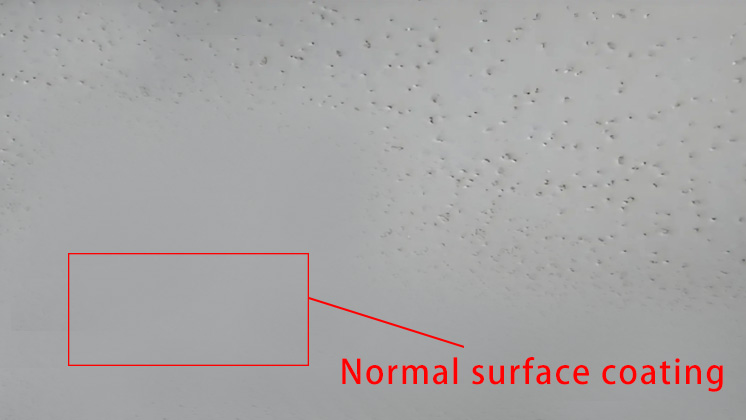

The appearance of pinholes (fine holes) on the coated surface is a common issue when applying UV paint using roller coaters, significantly impacting finishing quality. To effectively resolve this problem, systematic troubleshooting should focus on the following two core aspects:

Paint System Issue: Contamination of UV Paint with Water or Pollutants
Water or oil contaminants create micro-incompatible zones within the UV paint. During the curing stage of the roller coating process, these volatilize and escape, leaving holes.

Primary Causes & Troubleshooting/Resolution Measures:

1.Improper Operation Introducing Moisture/Contaminants:

Check:

Operator procedures: Are paint buckets left uncovered during operation?

Use of unclean containers, tools (e.g., stirring sticks, measuring cups), or gloves contacting the paint?

Are paint buckets left open in extremely high-humidity environments?

Resolve:

Strictly standardize roller coater operating procedures. Ensure paint buckets are covered immediately after use.

All tools contacting paint must be thoroughly cleaned and completely dried.

Avoid open paint handling in very high humidity conditions (e.g., immediately after floor mopping).

Train operators on critical coater usage details.

Water/Oil in Air Compressor Supply Lines:

Check: (Critical Check Point)

Air compressor itself (Is the air receiver tank drain valve regularly purged?).

Supply lines, especially long runs, low points, and connection points.

Air filtration units (oil-water separators) connected to the roller coater.

Resolve:

Regular Draining: Strictly implement scheduled draining of the compressor air receiver tank and low-point drain valves in pipelines (recommended per shift or more frequently based on ambient humidity).

Check/Maintain Oil-Water Separator: Crucial! Verify separator function (Is filter element saturated/failed? Is auto-drain working? Is manual drain valve purged promptly?). Replace filter elements or repair/replace the separator as needed.

Recommend adding a dedicated fine air filter (dehydrating/coalescing filter) upstream of the roller coater air inlet.

Optimize Piping: Ensure supply lines have adequate slope (towards drain points) to prevent "water traps." Install additional drain points where necessary.

Oil-Water Separator Malfunction or Improper Configuration:

Check:

Focus on the oil-water separator/filter unit supplying the roller coater.

Observe drain activity (Is significant water being discharged? Is auto-drain activating?).

Check pressure gauge readings. Is the filter element past its service life?

Resolve:

Immediate Repair/Replacement: If failure is detected (e.g., drain failure, clogged filter, excessive pressure drop), stop the coater immediately and repair or replace faulty components.

Filter Element Upgrade: Assess if the coater's current filter element grade and capacity are sufficient based on ambient humidity and air consumption. Upgrade to higher-efficiency water/oil removal elements if necessary.

Add Filtration Stage: Install an additional fine filter in series after the existing filter for dual protection.
