Get Maintenance Tips for 5 - Axis Spray Machine

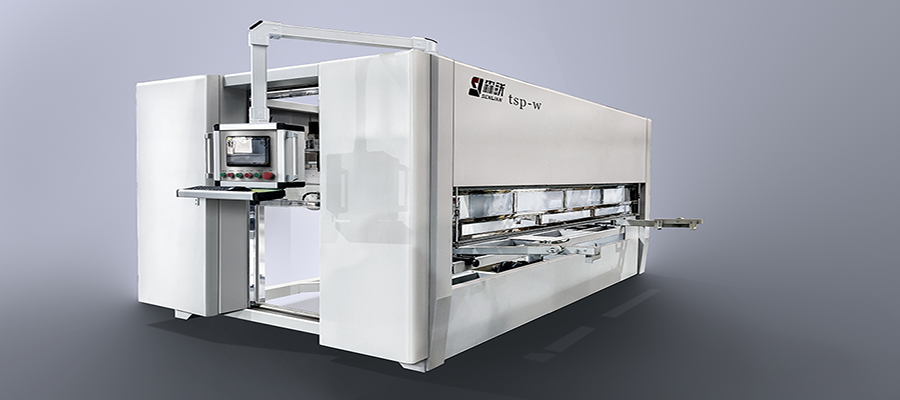

Proper maintenance of a 5 - axis spray machine is essential for guaranteeing it operates at peak performance, has an extended lifespan, and delivers high - quality spraying outcomes.Here are some essential maintenance tips categorized by time intervals.

Before starting any maintenance work on the 5 - axis spray machine, it is of utmost importance to turn off the main circuit power and the main air source. This guarantees the safety of those conducting maintenance work and stops any unexpected activation of the machine.Additionally, the hand - held teach pendant should be kept away from any corrosive substances at all times, as such substances can damage its components and affect its functionality.

Daily Maintenance

a. Cleaning

At the end of each workday, clean the 5 - axis spray machine. Use a damp, lint - free cloth with mild cleaner to wipe dust and debris off the body, gantry, and exposed parts. This keeps the machine tidy and stops corrosion or part - movement issues. During spraying, stir paint every 30 minutes to avoid suction - pipe clogs. Every 60 minutes, pause to clean the nozzle and atomization cap with thinner. Replace filter cloth every 4 hours to keep impurities out of the paint system. At shift's end, blow dust off the worktable, electrical box, axis dust covers, and caps. Replace the worktable wrapping film to maintain a clean work area and protect the equipment.

b. Inspection

Visually check hoses, connections, valves, and the paint tank for leaks daily. Look for wetness, drips, or puddles. Leaks waste paint and can damage the machine. If a leak is found, quickly identify and fix the source, like tightening loose connections or replacing damaged parts. Before starting any new spraying work, carry out a test of the spray pattern on a piece of scrap material.A good pattern should be even. If it's uneven, the nozzle might be clogged, worn, or installed wrong. Adjust or replace the nozzle as needed for a quality spray.

Weekly Maintenance

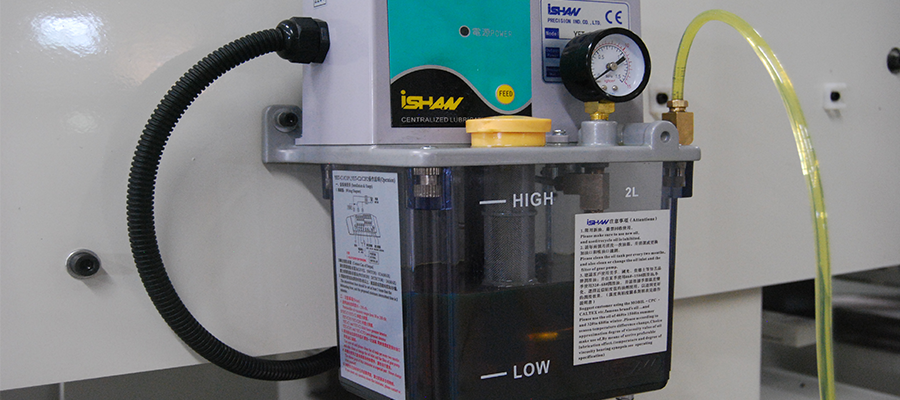

When the lubricant level in the automatic oiler is below the minimum liquid level, add lubricant in a timely manner. For the plunger pump, when its lubricant level is below the minimum, add the specified special lubricant. Enough lubrication plays a vital role in facilitating the smooth running of the machine's moving elements.

Every 2 weeks, apply grease to the rack of the Z - axis and the locking slide of the worktable. Also, perform a dust - blowing cleaning inside the slewing box. This helps reduce friction and keeps the internal components clean.

Monthly Maintenance

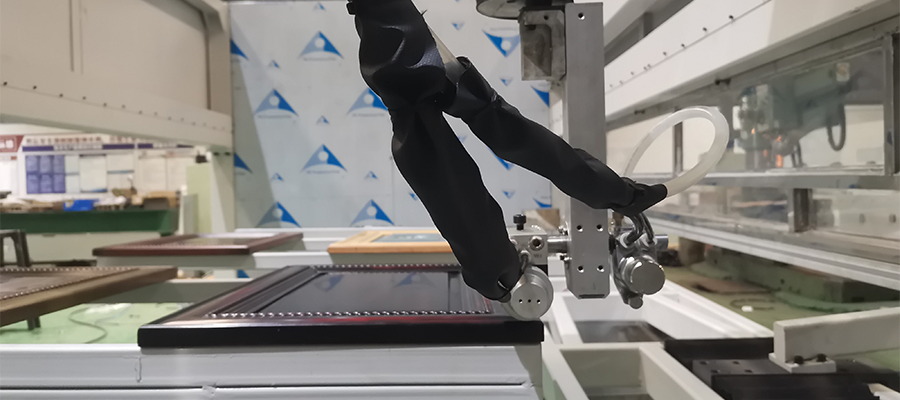

Every 30 days, remove the dust cover of the Y - axis to check if the Y - axis guide rail is lubricated. If not, lubricate it as required. Also, clean off any paint adhering to the guide rail. Additionally, every 7 days, check for loose screws at the connections of the worktable, rotation mechanism, and machine head. Remove the rear door panel to check if the screws of the coupling at the Y - axis motor are loose and if there are any abnormalities in the coupling. Tightening loose screws and addressing coupling issues promptly can prevent potential malfunctions.

By following these maintenance procedures diligently, you can keep your 5 - axis spray machine in top - notch condition, ensuring efficient operation and excellent spraying results.
