Paint Drying Oven

Infrared Drying Oven

Model SL-THR

The infrared drying oven applies far infrared rays to heat the paint on the board surface, leveling it more evenly or drying it. Meanwhile, the exhaust fans continuously remove moisture or VOCs from the paint.

Usually, we choose different types of IR lamps and lengths to match different drying requirements. For high-temperature heating over 100℃, it is necessary to add more insulation, high-temperature resistance conveyor, bearing, and wire, as well as accurate zone control, detection, and protection.

The infrared drying oven is mainly used for drying self-drying paint on various materials, including wood furniture, glass, metal sheets, ceramic, and fiber cement boards.

How does infrared drying oven work?

Base Materials

Wood
Glass
Metal Sheet
Fiber Cement Board

Advantages

Flexible and efficient

Infrared drying ovens heat materials directly rather than warming the surrounding air first. This method results in less heat loss to the environment, making infrared drying more energy-efficient and helping to lower working costs. Depending on specific requirements, infrared drying ovens can be designed with varying lengths and temperature settings.

Safe and accurate control

The structure is simple and user-friendly. Operators can accurately control the temperature and drying time through the control system, making it easy to set and adjust according to actual needs.

Easy maintenance

The infrared drying oven consists primarily of IR tubes, a conveyor, air recycle fans, and a control system. Its simplicity, due to the absence of complex components, makes maintenance and cleaning much easier.

Stable and durable

It uses infrared radiation to heat objects. The infrared radiation in the oven is evenly distributed, ensuring that the material is heated uniformly. This helps to avoid local overheating or underheating, resulting in a more consistent drying quality. In the meantime, thermal insulation can prevent temperature loss.

Standard Characteristics

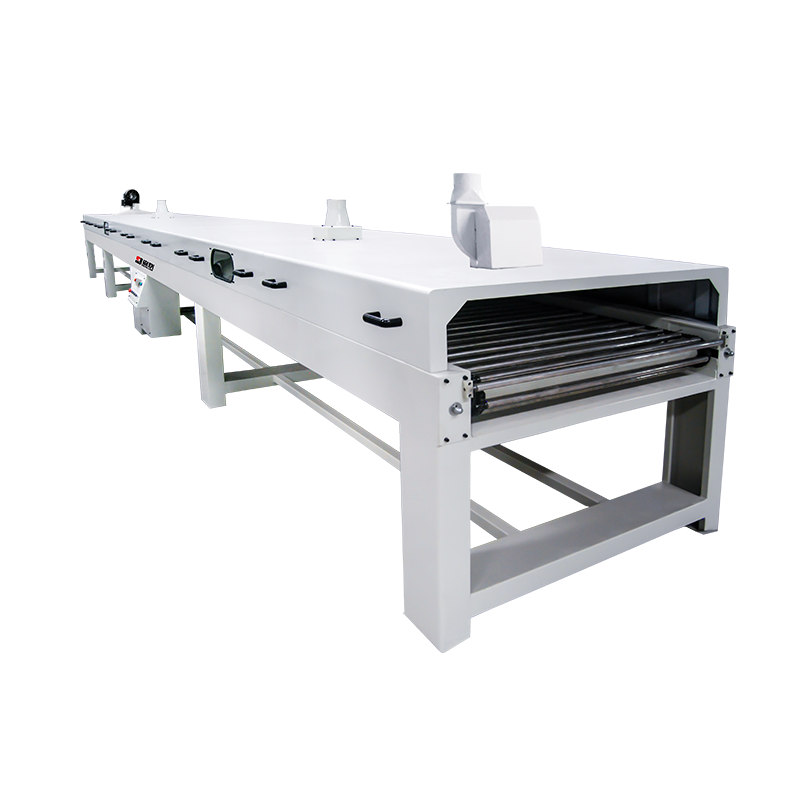

Drying Tunnel

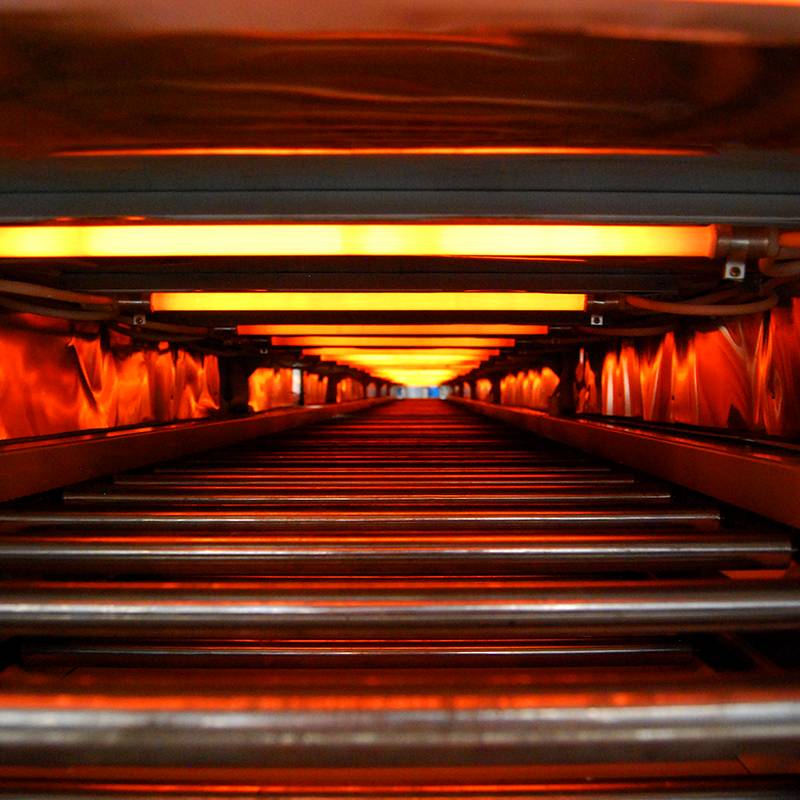

Rapid heating, uniform temperature, modular design for quick replacement.

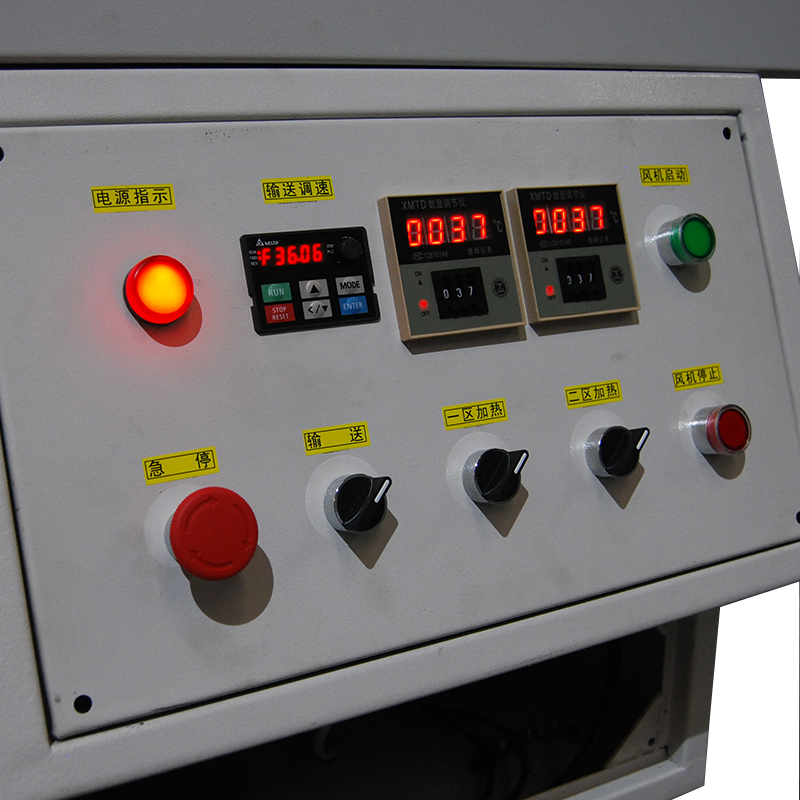

Control Button

Conveyor frequency conversion regulation, exhaust and intake air regulation, temperature value can be set.

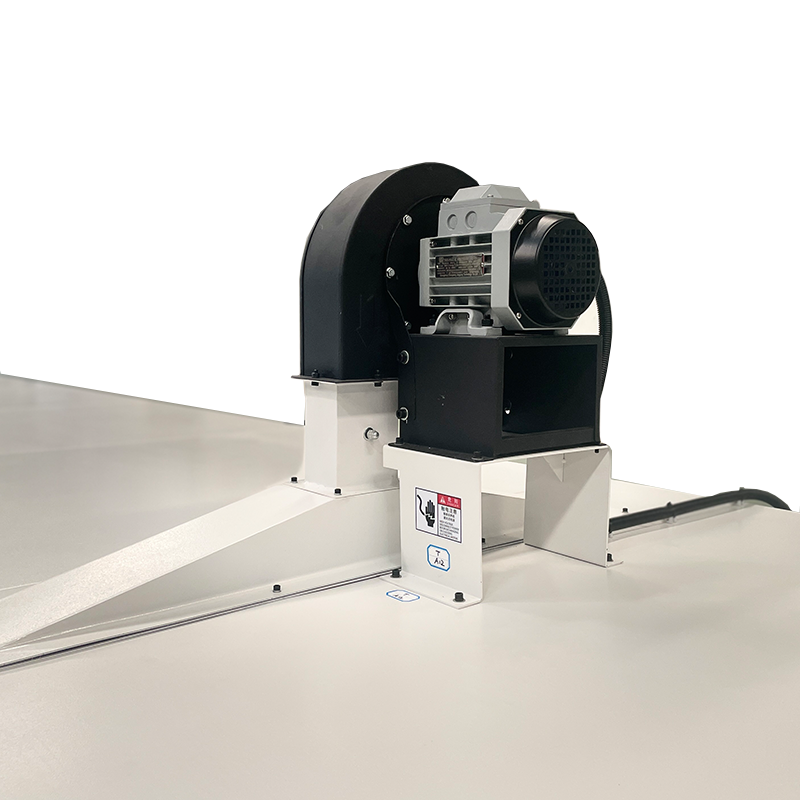

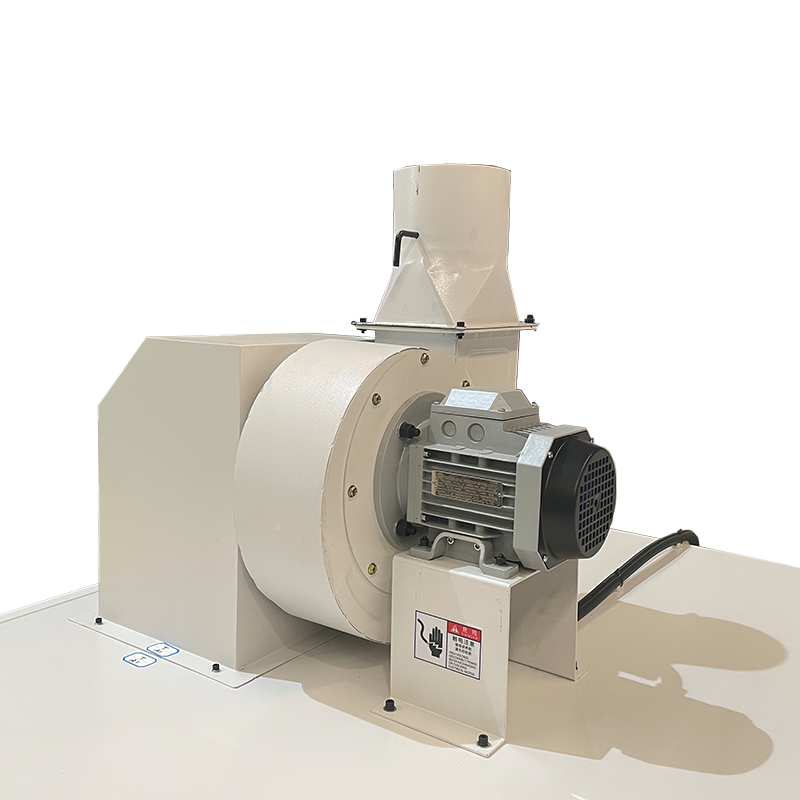

Exhaust Fan

During the drying process, harmful substances and exhaust gases are discharged from the drying oven.

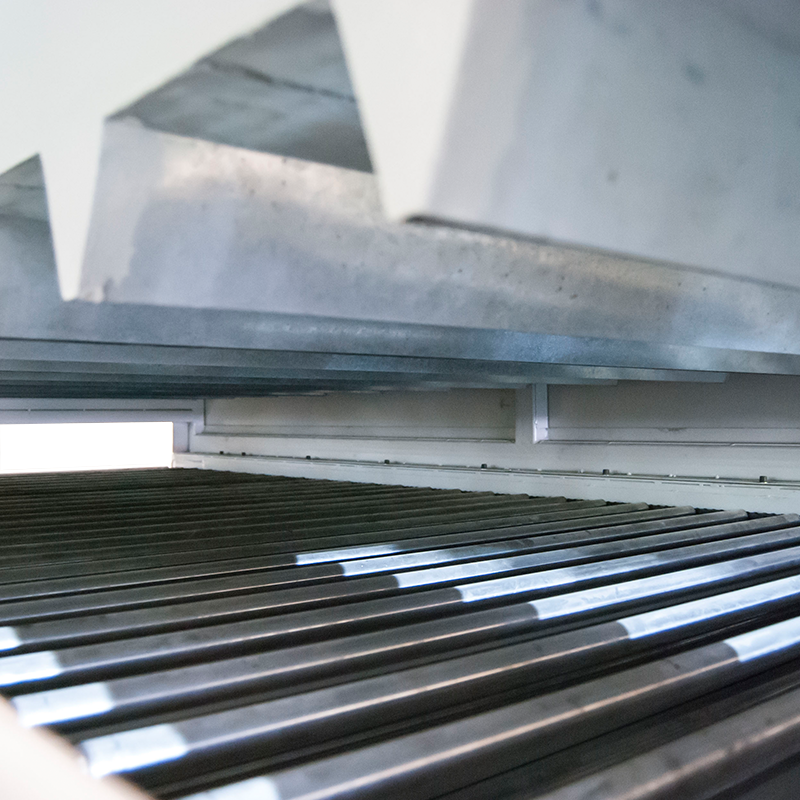

Intake Fan

Reduce temperature gradient, prevent local overheating or overcooling, and ensure uniform heating of the product.

Frequency Conversion Control

The conveying speed can be adjusted to match the conveying speed of the front and rear equipment.

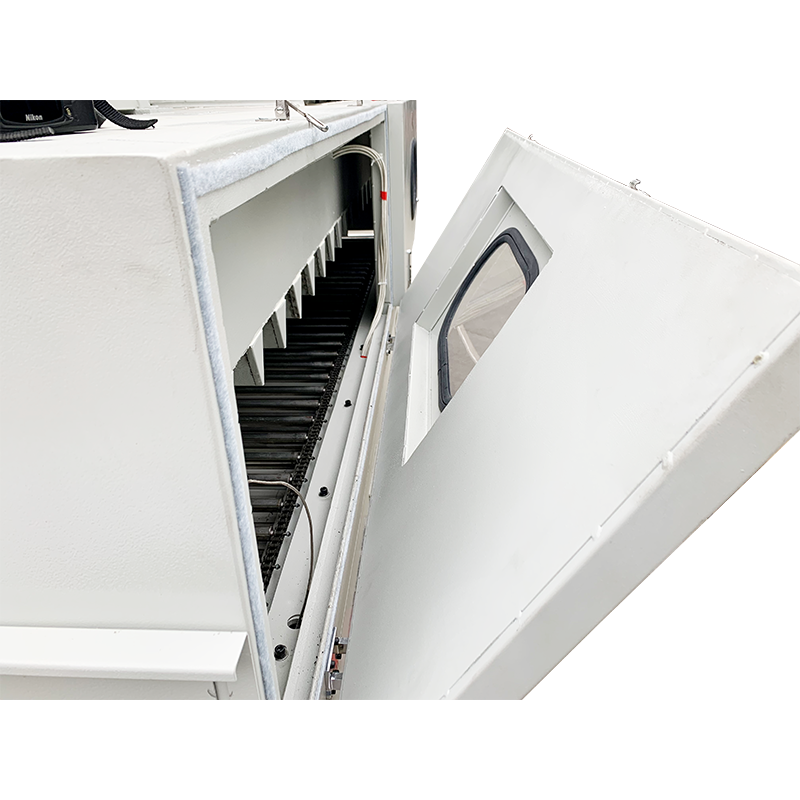

Insulation Layer(Optional)

Thickened aluminum silicate insulation layer reduces energy consumption.

Technical Parameters

We offer over 80 series fine standard products and related customized products that meet various automatic coating lines. Our products are utilized by more than 4,000 factories worldwide that produce wood furniture, doors, floors, glass, exterior and interior walls, metal sheets, special materials, etc. If you need any product help or product support, we are happy to provide it. As a company that focuses on technological innovation and product quality, we are always committed to creating safe, reliable and superior performance products for our customers. And we will continue to work hard, actively develop and produce more high-quality products that meet your needs, and constantly improve the quality of service to meet your needs.

Model	SL-THR1300
Overall Dimensions L/W/H	500016801120mm
Max Working Width	1300mm
Max Working Thickness	100mm
Min Working Length	150mm
Working Speed	1 to 25m/min
Estimated Weight	1200kg
Full power	11kw 380V 50HZ 3P

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working thickness
Feeding direction
Machine body colour

Working Table

Suitable for different products

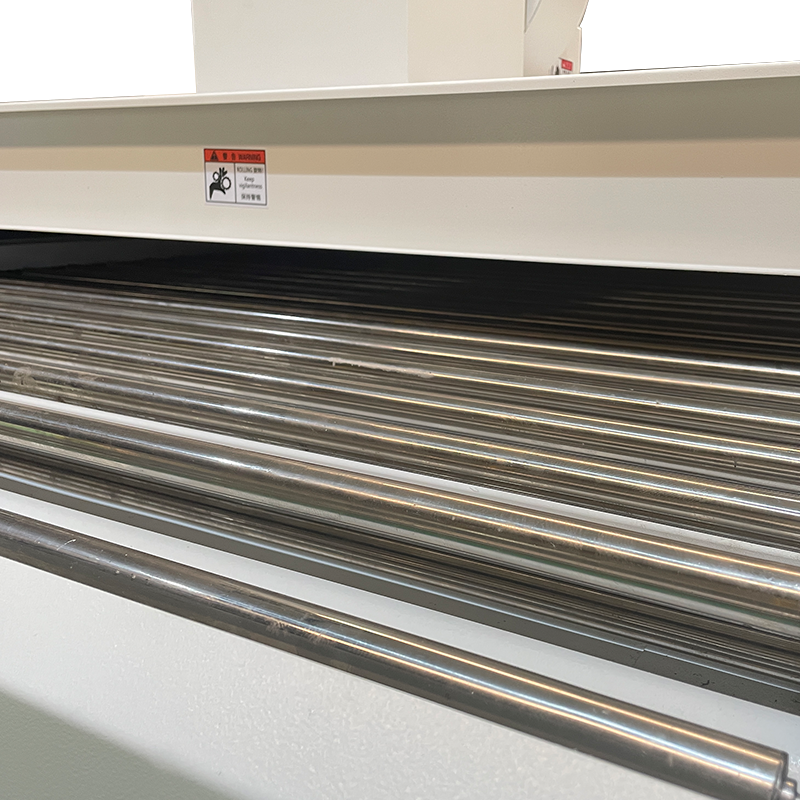

Steel pipe chain conveyor
PE belt platform
Steel rollers conveyor
Rope rollers conveyor

Drying System

Suitable for different needs of temperature and craft process

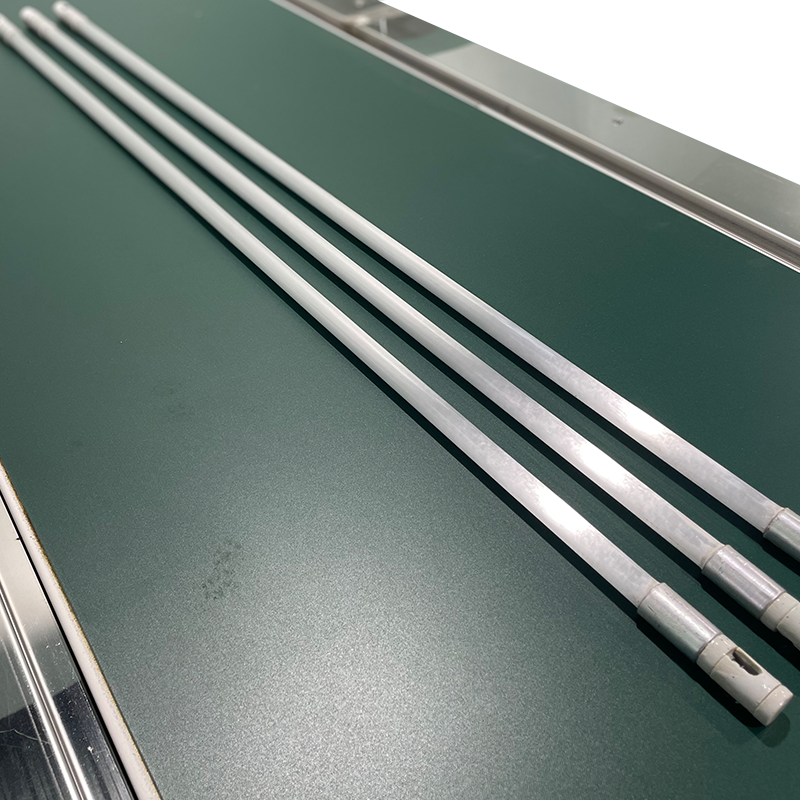

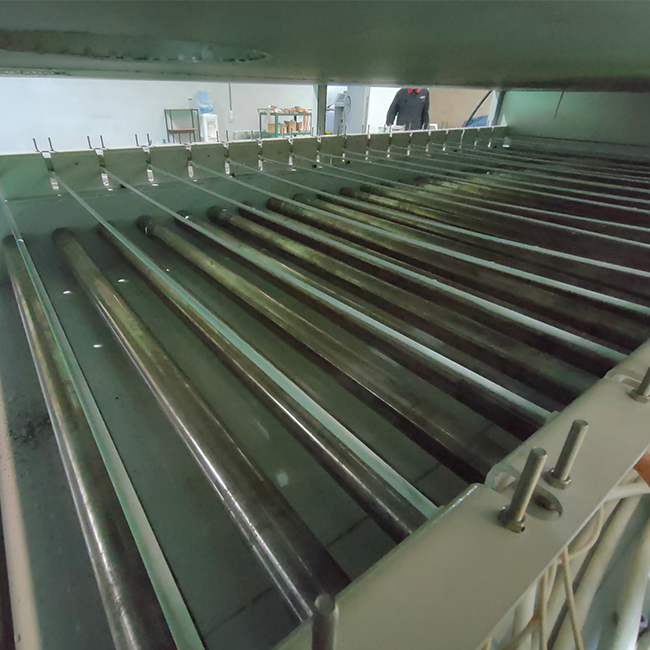

Vacuum carbon fiber infrared lamp
Far and shotwave infrared lamps

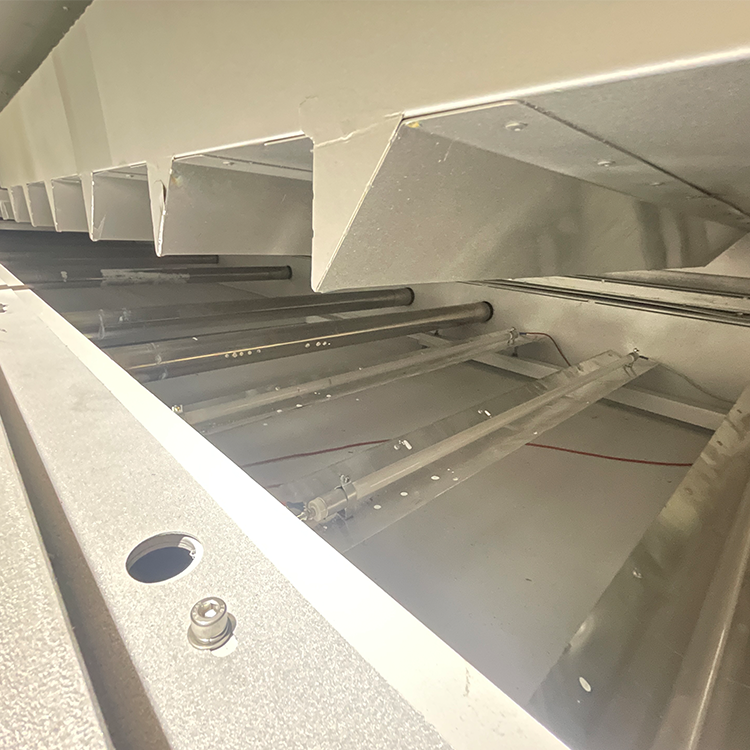

Infrared lamp and wind knife dry on both sides

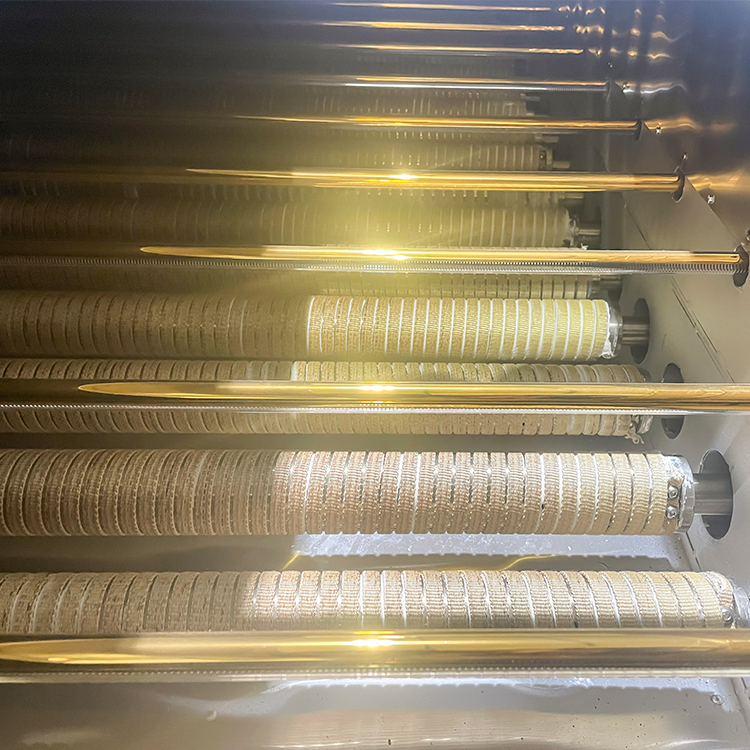

Gold-plated medium-long wave infrared lamp

Function

Suitable for diverse functional and application needs

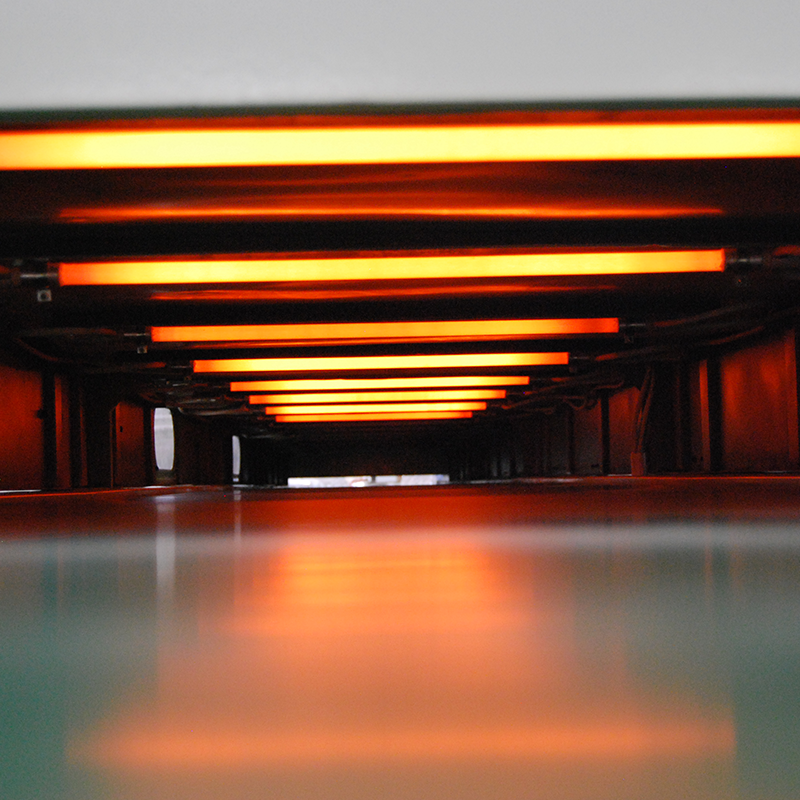

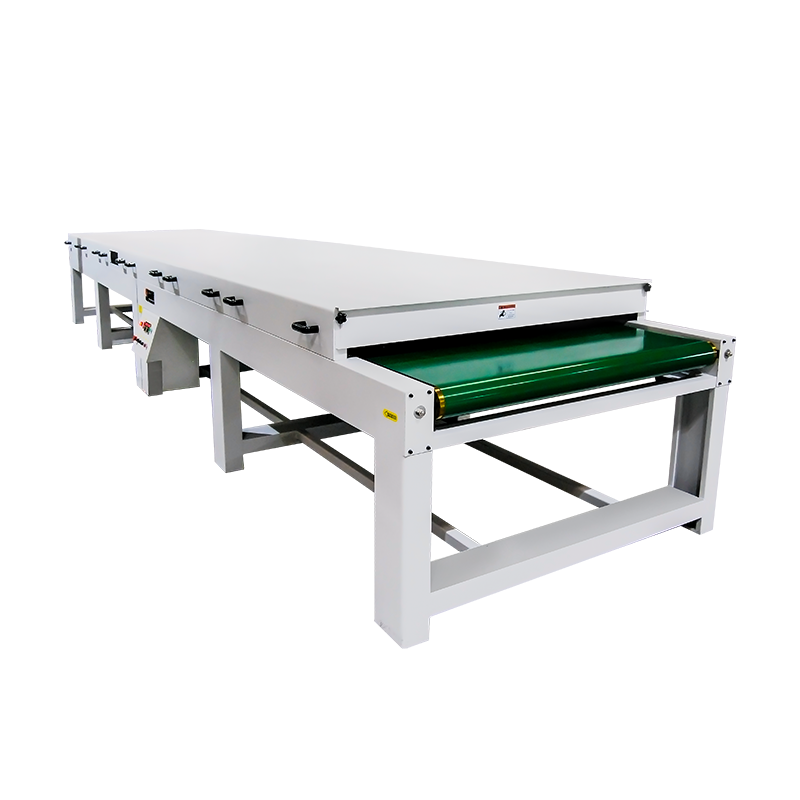

Leveling and keep in 40℃

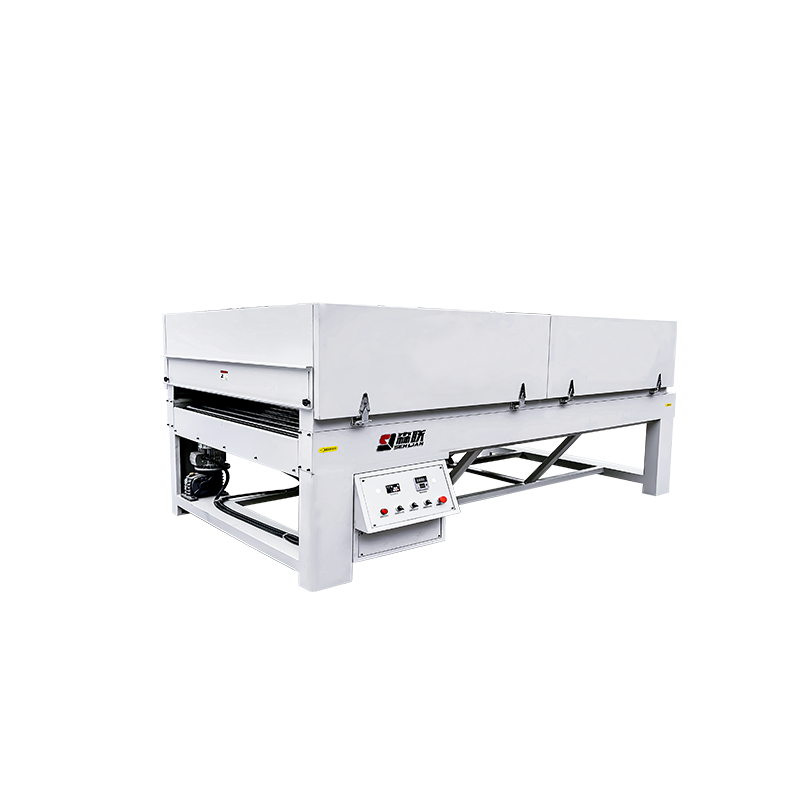

3m preheating tunnel
High temperature channel up to 180℃

Electrical

Suitable for electricity consumption in different countries

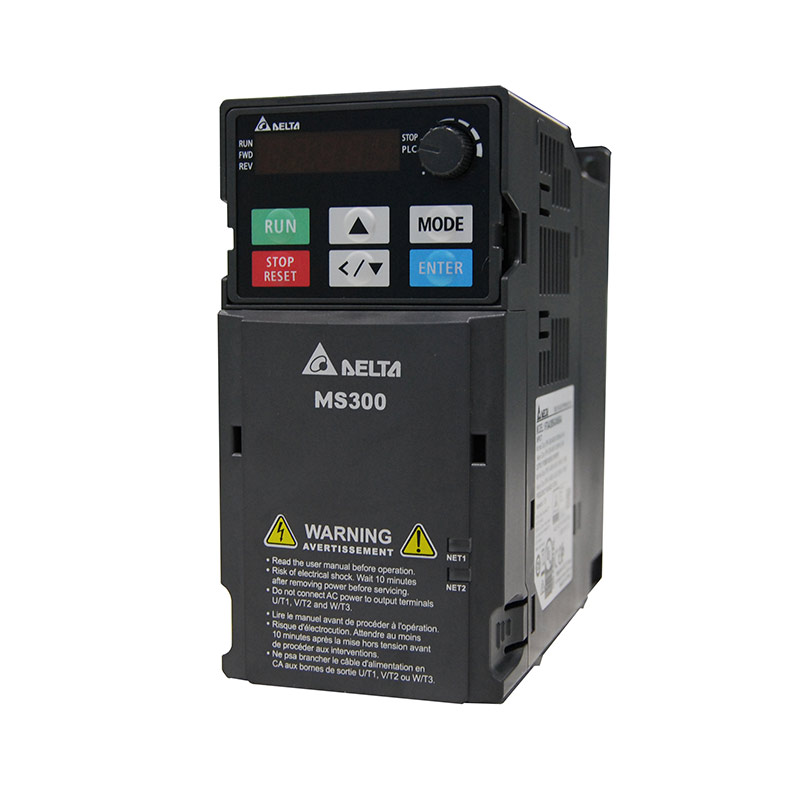

Frequency converter

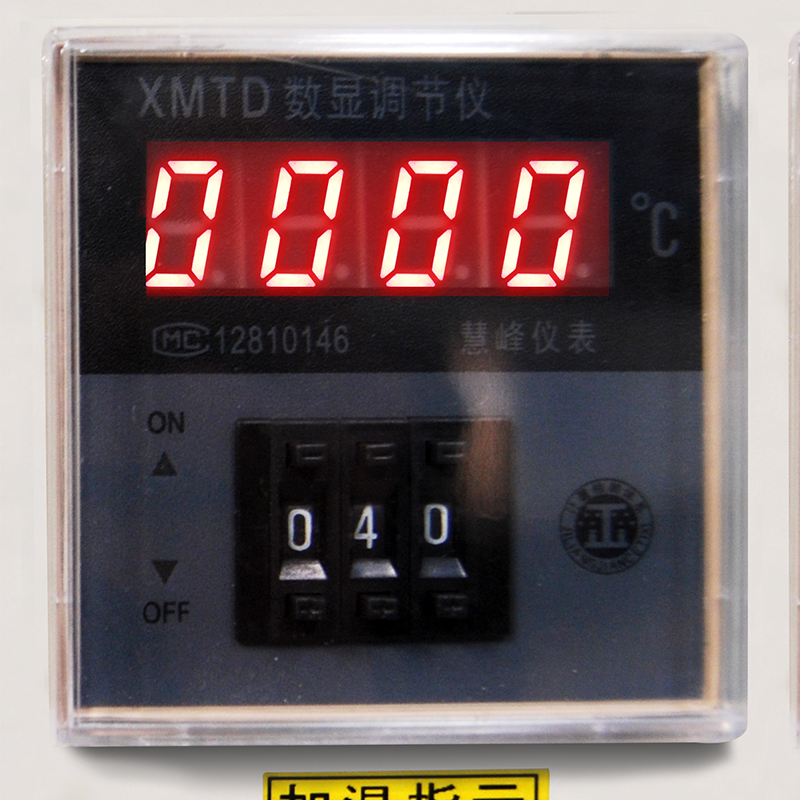

Temperature setting device
Various electric standard
Electric motor

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. What are the main optional functions of the infrared drying oven?

Leveling: The leveling infrared drying oven adopts far-infrared light sources to heat the paint on the surface of the plates to a constant temperature of about 40℃ in the tunnel, promoting the paint to accelerate leveling after being heated in the leveling channel. The paint film becomes more uniform and fine and achieves the effects of defoaming and eliminating marks. Especially after the topcoat painting, it plays an important role in enhancing the expressiveness.

Preheating: In some cold regions or winter, preheating is required before base materials processing or coating to achieve the desired effect, so we have designed the preheating infrared drying oven to meet such needs.

Drying the special coating: The high-temperature infrared drying oven works well for dry special coatings at high temperatures. Gold-plated medium long wave infrared lamps, high-temperature bearings, and some special designs make the drying temperature easily reach over 180℃ while ensuring the safety of operators.
2. How long do I need for a infrared drying oven?

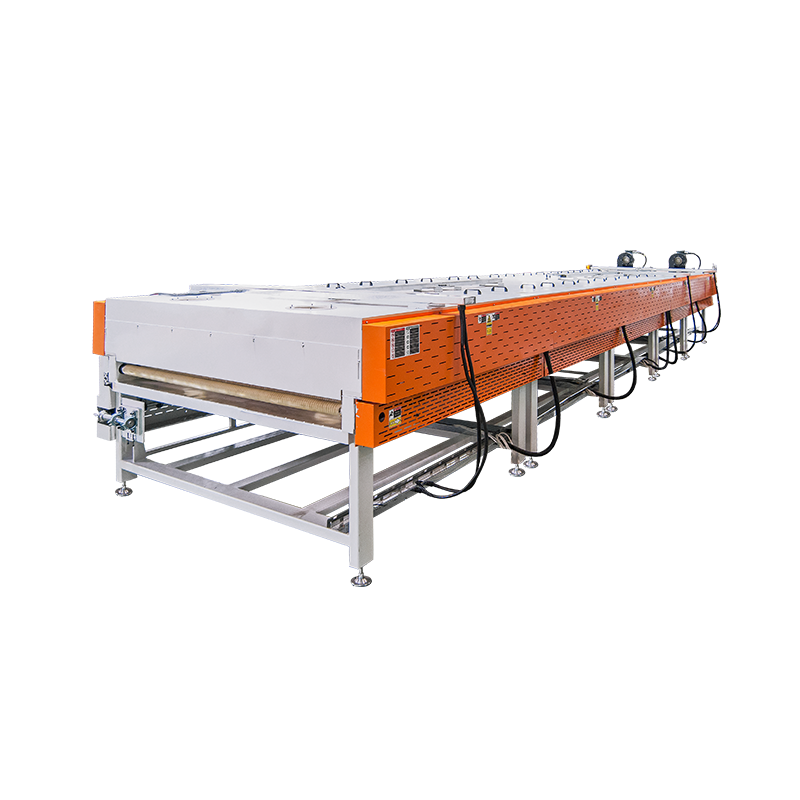

The length of an infrared drying oven can be designed flexibly depending on function requirements, coating properties, the power and wavelength of infrared radiation, the size of the plate it is meant to accommodate, etc.

Function requirements: The designed length of infrared drying ovens may vary to achieve different functions. For example, leveling usually requires a length of 8-24m while preheating needs 3-8m. The variability of drying special coatings will be greater.

Coating properties: Different paints have different drying conditions. For example, oil-based paint may dry relatively quickly, which means the length of the infrared drying oven is much shorter. Water-based paint may take longer, also depending on their thickness and water-holding capacity.

Power and wavelength of the infrared drying oven: Higher-power infrared drying ovens can provide more intense heat, which generally shortens the drying tunnel. Additionally, the wavelength of the infrared radiation also affects the drying efficiency. Different materials have different optimal absorption wavelengths for infrared, and when the oven's wavelength matches the material's absorption characteristics, the drying speed can be increased.

In general, we suggest comprehensive design based on above factors, the speed of the production line, and your plant layout. Please find a supplier with sufficient application experience and design capabilities to serve you to ensure that you can obtain satisfactory products.
3. Can I customize an infrared drying oven suitable for larger products?

Sure. We often need to add 100mm to the width of your product when designing the working width of the machine to ensure smooth transportation. In addition, the working length and width, feeding direction, and body color of our machines both can be customized according to your needs. Please feel free to contact us.
4. What are the wearing parts of the infrared drying oven?

Infrared lamp.
