Coating Machine

Curtain Coating Machine

Model SL-TLSU

The curtain coating machine is the most widely used equipment for coating flat products with thick paint layers.

One alloy aluminium knife head recycles the liquid paint supplied by the pump from the paint container to create a paint curtain, similar to a waterfall. Two belt conveyors accelerate and decelerate to assist flat boards pass through the paint curtain quickly, coating a thick and even paint layer on their top side.

The coating thickness of curtain coating machine is adjustable by knife head gap and conveyor speed, usually applied to PE, PU sealer, and UV topcoating to get the high gloss effect, suitable for wood, glass, fiber cement board, plate metals, PVC, ceramics, and marble, etc.

How does curtain coating machine work?

Base Materials

Wood
Marble
Crystal porcelain painting
Glass

Advantages

High efficiency

The curtain coating machine is suitable for rapidly coating large-area workpieces with high production efficiency.

High gloss effect

With precise control of coating fluidity and thickness, the curtain coating machine can easily achieve high gloss or mirror effects.

Even paint curtain

With the precise curtain coater, the paint flows evenly to form a continuous coating, preventing sagging and ensuring a smooth surface.

Cost savings

Based on the recycling system of the curtain coating machine, unused paint can be recycled and reused to minimise paint waste.

No air bubble

Equipped with a multi-layer filtering high-flow heating box, the curtain coater can filter impurities in multiple layers, eliminate bubbles, and achieve a high-fullness paint film.

Strong adaptability

The curtain coating machine can handle products of various shapes and sizes, making it suitable for a range of surfaces, including flat and curved ones.

Standard Characteristics

Alloy aluminum knife

T6 heat process make entire knife better themal conductance, surface planish and electroplating process enhance its strength and compact, ensure wide knife paint fall smoothly.

Curtain coater head

Larger knife paint cavity supports more flow paint, one wheel to adjust wider curtain coater paint fall evenly and easily, mechanical adjustment ensures long-term precise regulation

Screw pump

Longer and thicker screw bar is working more stably, reduce the pump swing during work and decrease air bubble come. Flip type structure convenient to maintain entire bar.

UV paint container

Stainless steel filter paint case with electric heating function, internal 7 degree filters make more and longer paint stream loop ensure remove air bubble or any impurity.

Technical Parameters

Model	SL-TLSU1300
Overall dimensions L/W/H	627024001350mm
UV heating filter paint case	185010801350mm
Self-drying paint case	8003501350mm
Max working width	1300mm
Min working length	300mm
Working thickness	3mm to 100mm
Working table height	850mm(900~950mm)
Working direction	Right to left
Recommended working speed	25 to 30m/min
Full power	4.4kw (UV 16.4kw)
Gross weight	1700kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Machine length
Feeding direction
Machine body colour

Knife head

Suitable for different process applications

Flip type knife head
Dual knife heads

Paint container

Suitable for different paint features

Self drying paint case

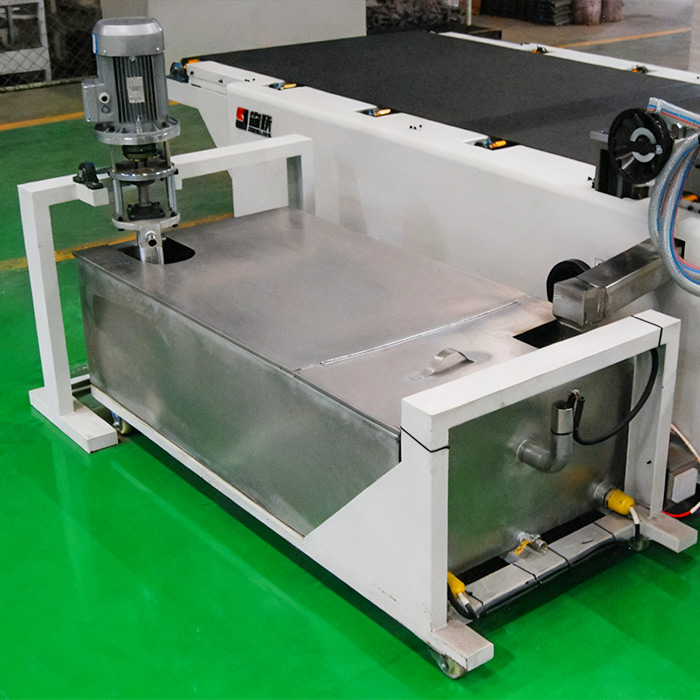

Heating circulation paint case

Machine structure

Split body and integrated body are available for selection

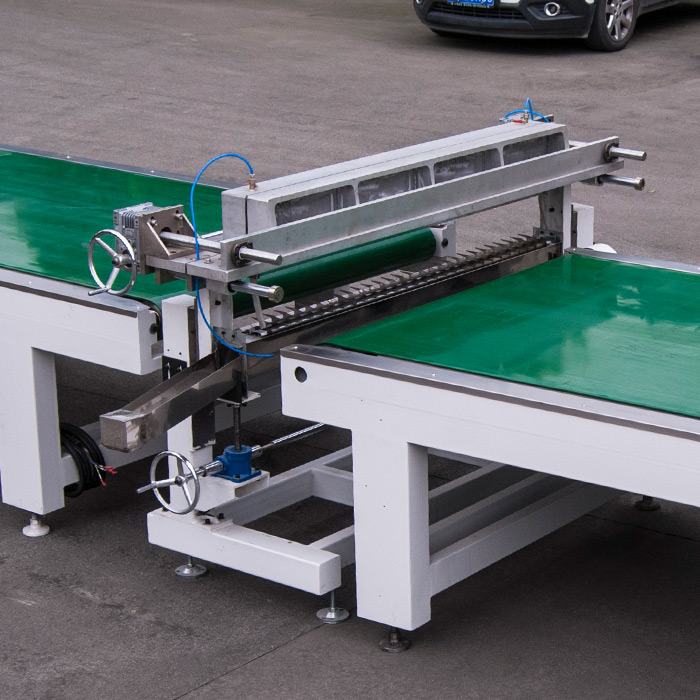

Split body

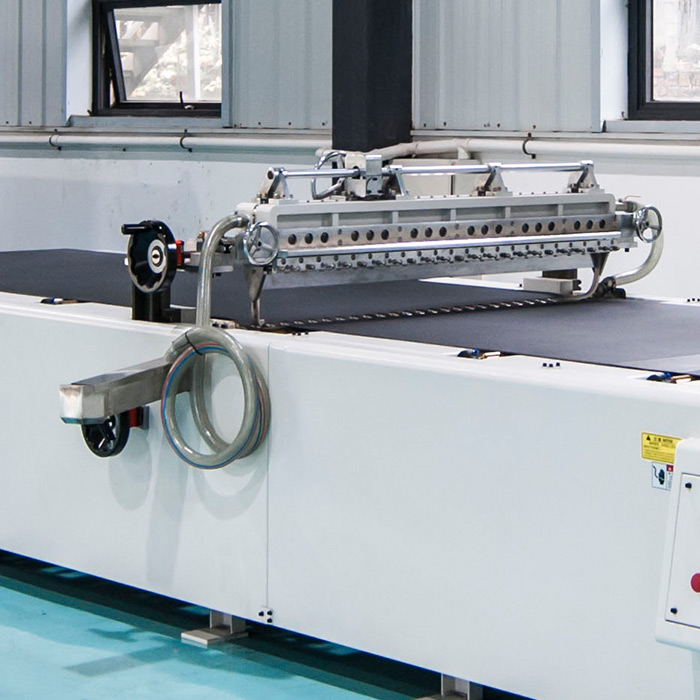

Integrated body

Conveyor

Suitable for different products

PVC belt
PU corrosion resist belt

Electrical

Suitable for electricity consumption in different countries

Stand electric cabinet
Various electric voltage
Various electric standard
Explosion proof

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. How to control the coating thickness with the curtain coating machine?

We have already adjusted the accuracy of the aluminum alloy knife head during production. There is a hand wheel near the knife head on the front of the machine. Adjust the gap of the knife head clockwise, and the thicker the coating will be. Adjust it counterclockwise, the thinner the coating will be.
2. What’s the difference between a split curtain coating machine and an integrated curtain coating machine?

In terms of design, the split curtain coating machine is composed of two conveyors and an independent curtain head. The integrated curtain coating machine is an integrated machine, in which the conveyor and curtain head are connected to one machine.

In terms of application, the split curtain coating machine can adapt to different production needs by adjusting individual components and is more suitable for industries that require frequent changes in coating materials or parameters. In addition, if there is a high requirement for coating uniformity, the performance of the split curtain coating machine is even better because the independent structure allows them to be unaffected by each other.

However, the integrated curtain coating machine also achieves similar goals with a lower cost, making it popular among manufacturers.
3. How to properly maintain the curtain coating machine？

When starting the curtain coating machine, the speed of the conveyor belt should be increased from low to high. Conversely, when stopping, the speed should be decreased from high to low. It is not allowed to start at high speed with a heavy load.

Please don't place debris on the conveyor belt. It is strictly prohibited to use a sharp blade to scrape off any unclean objects attached to the conveyor belt.

After daily work, use paint thinner or alcohol to clean all parts of the knife head and the recycling structure, ensuring that no paint remains.

In addition, our after-sales service engineers will provide you with detailed tutorial videos for the curtain coating machine.
4. What are the wearing parts of the curtain coating machine?

Counter, replace the blade body rubber strip.
