Automatic Parallel Translation Conveyor

Model SL-FCD

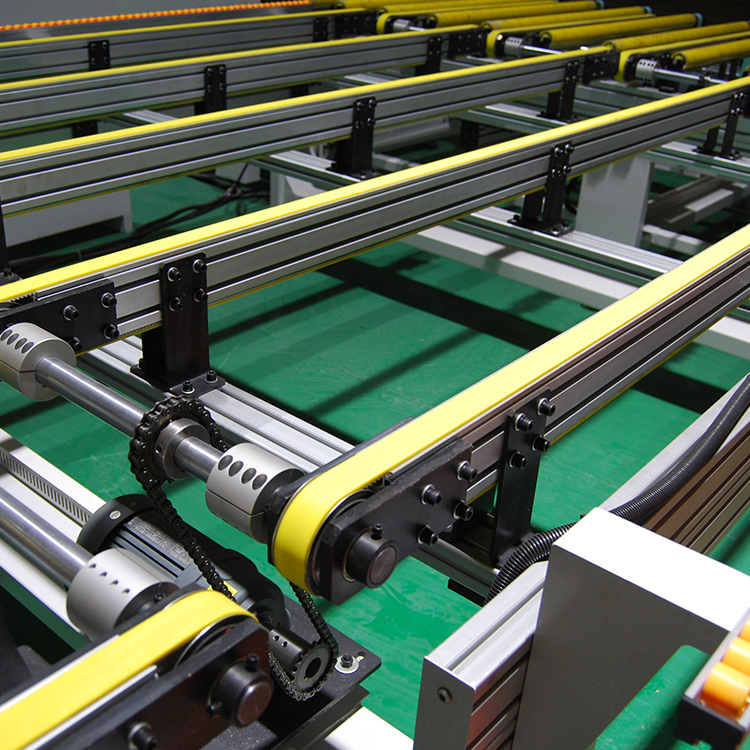

The automatic parallel translation conveyor consists of two groups, the inlet and outlet rollers conveyor, connected by a parallel auto lifting belt strip conveyor across, automatically translates the boards from one line to another like U style piece by piece, keeping the whole process going smoothly and boards in the same direction.

It is helpful to save the length of the coating line to meet short space, suitable for wood, glass, fiber cement board, and plate metals production lines.

How does Steering Flat Shifter work？

Base Materials

Wood
Glass
Metal Sheet
Fiber Cement Board

Standard Characteristics

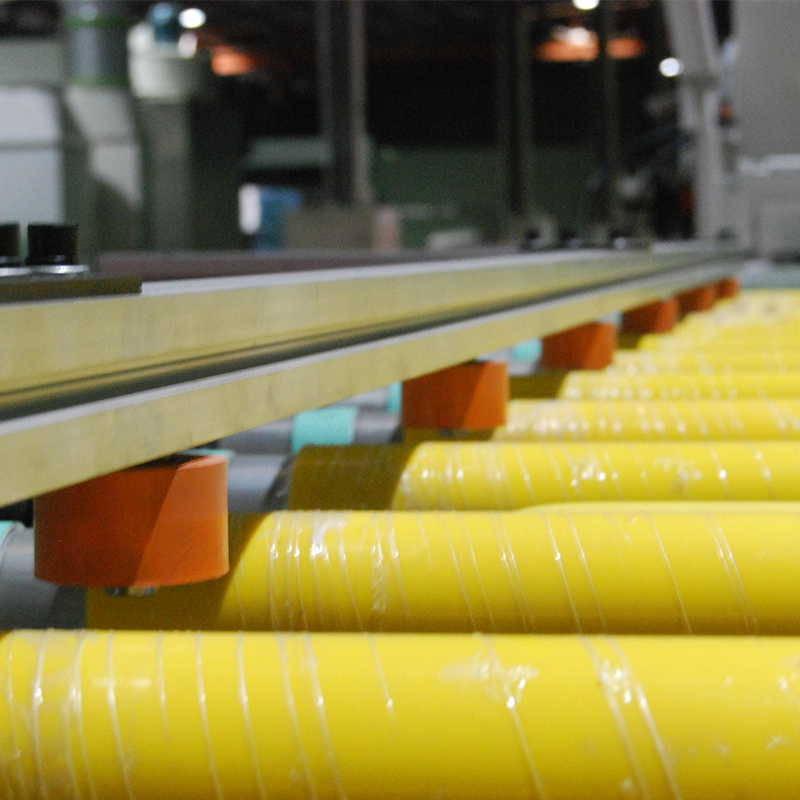

Edge Anti-collision Device

The device provides impact buffering to help position the plate during the steering process.

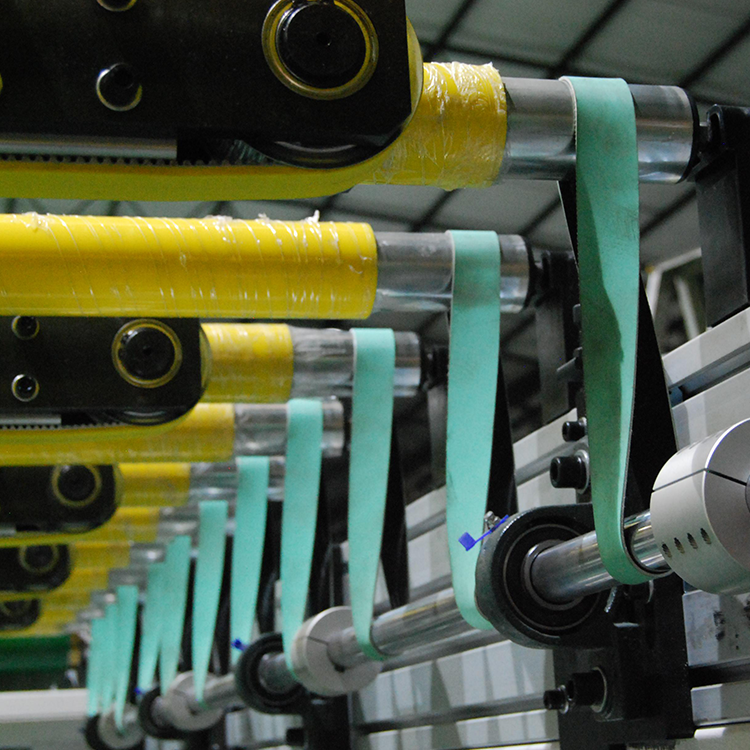

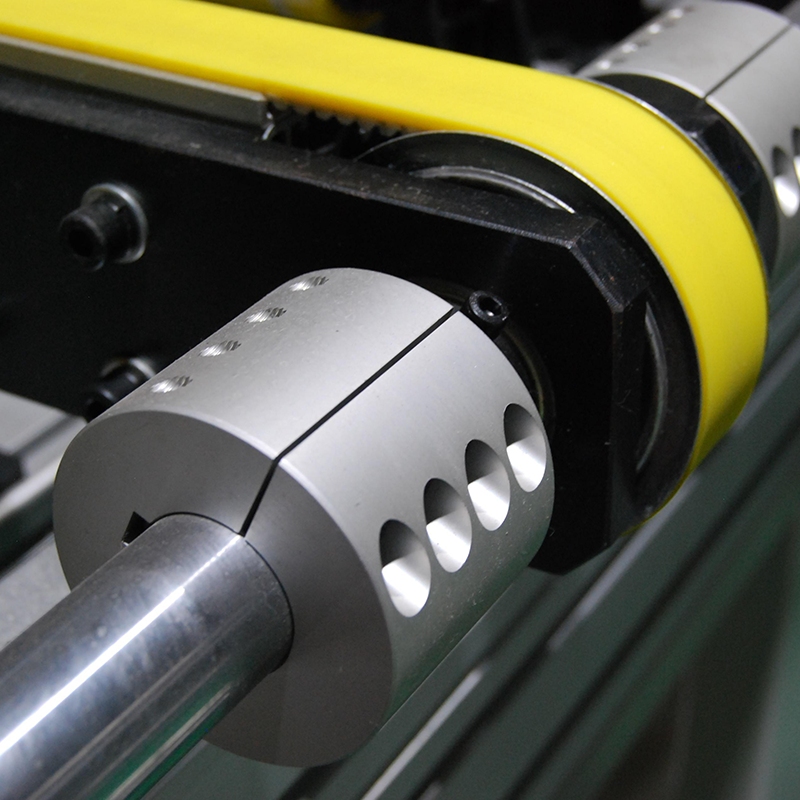

Couplings

The couplings are added to the equipment to facilitate the replacement of belts or chains and facilitate equipment maintenance.

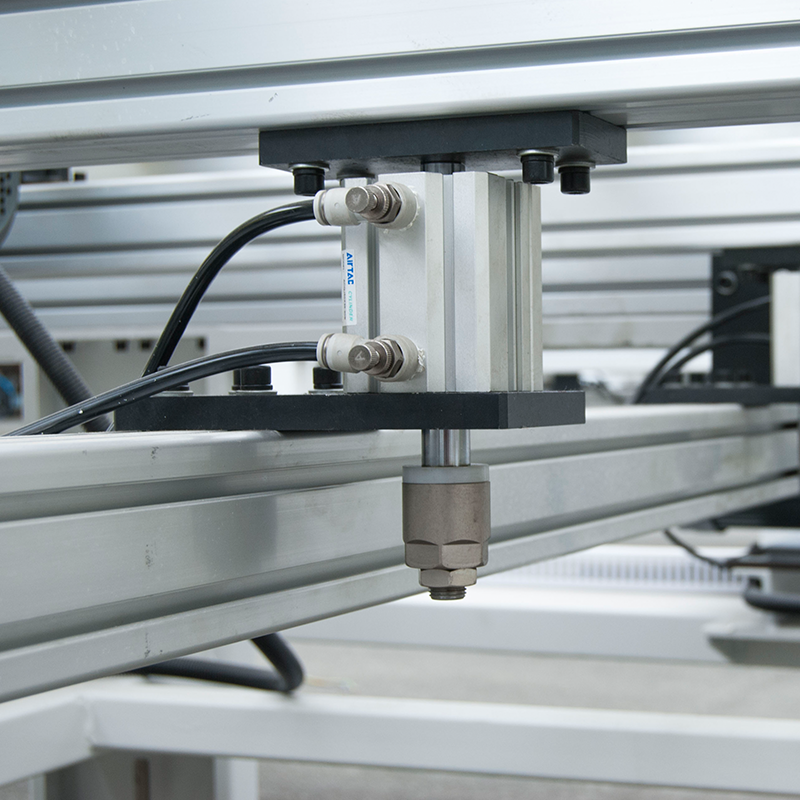

Air Cylinder For Lifting

The cylinder is Used to compress air through the piston, store compressed air, or drive the piston through air pressure to lift the plate.

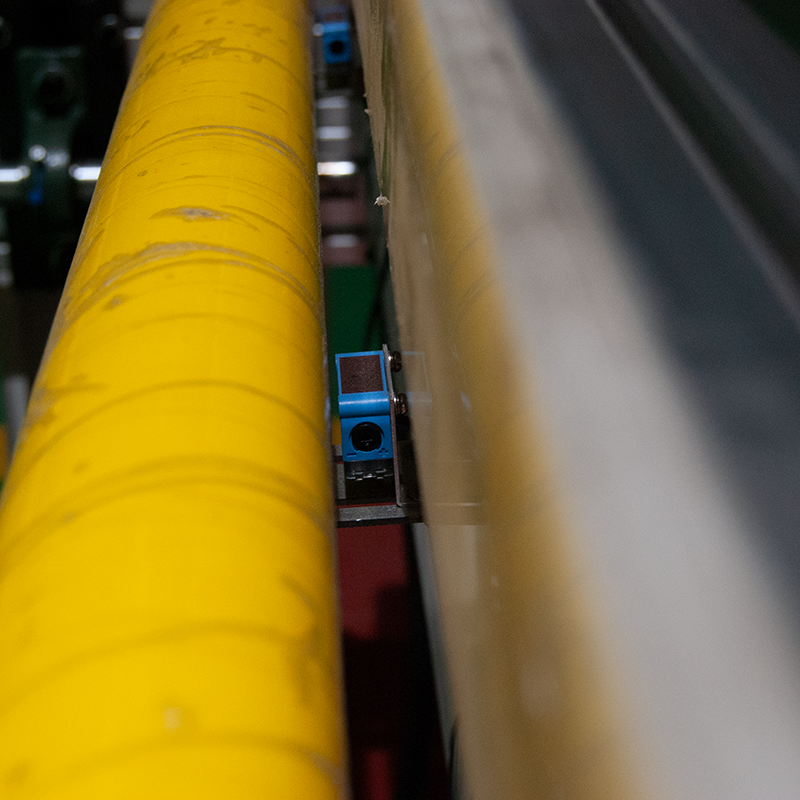

Photosensor

When the photosensor detects that a plate has entered the working area of the machine, it automatically starts the program operation.

Technical Parameters

We offer over 80 series fine standard products and related customized products that meet various automatic coating lines. Our products are utilized by more than 4,000 factories worldwide that produce wood furniture, doors, floors, glass, exterior and interior walls, metal sheets, special materials, etc.

Model	SL-FCD
Overall Dimensions L/W/H	341040501400mm
Infeed Overall Dimensions(LWH)	3410* 1600*1000mm
Translation Overall dimensions(LWH)	2450* 2860*950mm

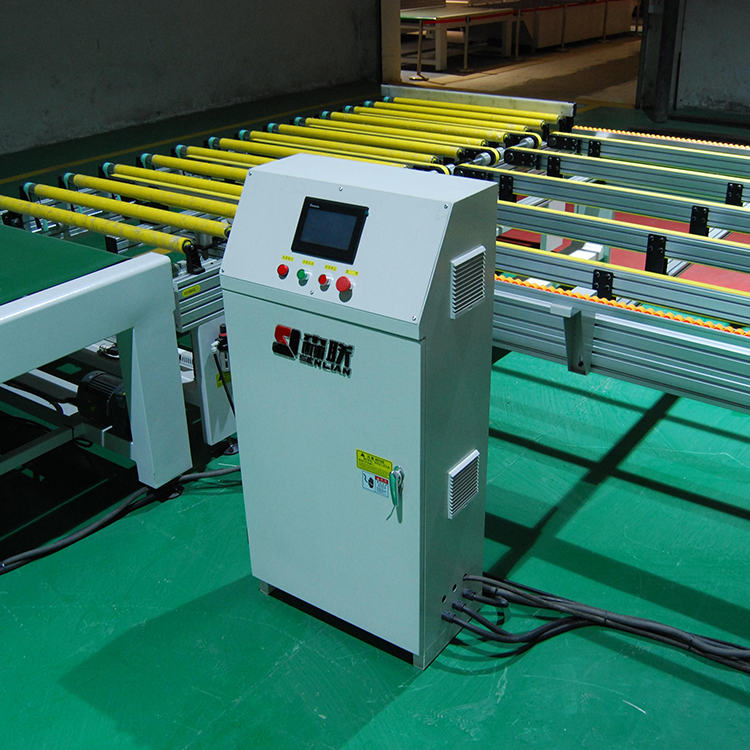

Electric Cabinet Dimensions(LWH)	4007001400mm
Outlet Overall Dimensions(LWH)	34101830950mm
MAX Working Width	1300mm
MIN Working Length	500mm
Working Speed	1 to 25m/min
Gross Weight	1800kg
Full Power	3kw 380V 50HZ 3P
