Painting Machine

Automatic Five Axis Spray Painter

Model SL-TSP-W

The automatic spray painter is high-performance equipment for painting two surfaces, all sides of doors, furniture, cabinets, tabletops, decorations, and many other products.

The automatic spray painter works independently, featuring an intelligent five-axis spraying system as flexible as a human arm. It works in harmony with a rotating and flipping work table, ensuring each side of the workpiece is sprayed evenly with very high quality, faster and more consistently. This significantly reduces paint costs compared to manual spraying.

Usually, one normal worker can operate this automatic spray painter effectively; it is suitable for priming or topcoating with solvent-based or water-based paints.

How does automatic five axis spray painter work?

Base Materials

Wood
MDF
Glass
Ceramic

Advantages

Flexible five axes

Five axes can provide flexibility comparable to that of a human arm. Bionic automatic spraying is commonly used for various materials. The automatic spray painter is particularly ideal for thick-edged, double-sided lacquered products, as well as those with grooves and decorative lines.

Robot teaching

Support spray painting of various product shapes, utilizing a single machine for multiple purposes. The software of the automatic spray painter features a robot teaching function that automatically generates processing programs by manually guiding the movement of the spray gun, significantly reducing the threshold for personnel operation.

Raising efficiency

In the traditional coating process, skilled painters apply coatings to surfaces using methods such as spraying, brushing, and soaking. Their techniques often depend on their experience and mood. In contrast, automatic spray painters optimize paint usage, allowing for the mass production of high-quality products simultaneously.

30% Paint saving

The middle-pressure spraying system of the automatic spray painter offers improved atomization and reduced paint rebound compared to manual high-pressure spray guns. This ensures a better coating effect while decreasing paint usage by 30% compared to manual methods.

High cost performance

This automatic spray painter offers higher cost performance, making it accessible to even small-scale production enterprises. The benefits it brings will far outweigh the investment cost of the equipment.

Standard Characteristics

GRACO air mix spray gun

GRACO middle-pressure air mix spray gun can achieve uniform atomization and gentle spray, improve the paint transmission efficiency, and reduce the paint mist rebound.

GRACO plunger pump

GRACO Merkur plunger pump has 30:1 pump pressure ratio, can quickly switch and recover, form a uniform thickness coating film, avoid uneven spraying caused by pressure fluctuations.

Straight quiet guide rail

HIWIN quiet straight guide rail with automatic lubricating device ensures fast spraying action and long-distance working flexible and smooth, stably last for 24 hours without stopping.

Integrated spray head

The 5th generation fine integrated spray head reduces a lot of wire connections, making spray motion lighter and maintainace easier.

Servo motors

All the axes are driven by servo motors with the absolute value function, ensuring accurate spray motion independently or cooperated, reducing the program process and potential faults.

Motion controller

AMC 1600E motion controller with expert communication cables reflects faster and is more stable than traditional PLC, ensure accurate spray effect.

Hand held HMI

Instead of a fixed control panel, this intelligent handheld HMI allows the worker to move at different angles to ensure an accurate spray program and supports file batch modification, paste, copy, and USB disk functions.

Rotating working table

The motor cooperates with fine cam indexers, allowing the working table to rotate stably. The damping mechanism slows down at the beginning and end stages to ensure the carried products maintain the same position.

Technical Parameters

Model	SL-TSP-W
Overall dimensions L/W/H	4370(+450)2400(+650)2450mmmm
Max working thickness	80mm
Working size include edges	400400mm to 22001000mm
Working size exclude edges	400400mm to 24001200mm
Working size exclude two ends	400400mm to 24001000mm
Air pressure	0.6mpa
Speed of spray gun	0-1500mm/s
Full power	3.7kw
Gross weight	2200kg

Customized

Size and color

Suitable for different sizes of products and spaces

Working width
Working length
Working thickness
Machine body colour

Spray Gun

Suitable for different paint and costs

GRACO air mix spray gun
Kremlin air mix spray gun
IWATA air spray guns

Spray Pump

Suitable for different paint and costs

GRACO plunger pump
Kremlin plunger pump
Vacuum diaphragm pump

Working Table

Suitable for different products

Rotating
Turn over
Flow line

Function

Suitable for diverse functional and application needs

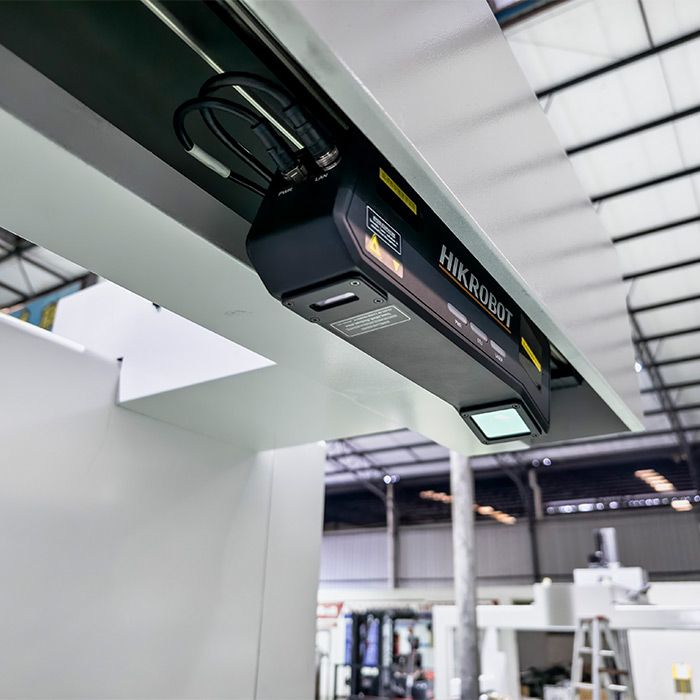

3D Visual imaging
Multiple spray guns

Electrical

Suitable for electricity consumption in different countries

Cantilever control panel
Various electric voltage
Various electric standard
Explosion proof motor

Application Video

Using eight low-pressure
Using eight low-pressure
Using eight low-pressure
Using eight low-pressure

FAQs

1. What sectors use the automatic spray painter?

The automatic spray painters are widely used for priming or top coating a variety of products, including doors, cabinets, wardrobes, cupboards, bathrooms, tabletops, showcases, AR glasses, flat sheet ceramic membranes, and many other items. In recent years, its applied range has continued to expand.
2. Why choose to configure GRACO spraying systems on automatic spray painters?

Our automatic spray painter TSP-W comes standard with the American GRACO air mix spray gun and a GRACO 30:1 plunger pump. Due to the advantages of the GRACO spraying system, TSP-W has better spray quality, less paint waste, and more convenient operation.

Firstly, a GRACO air mix spray gun can save more than 30% of paint compared to IWATA high-pressure air spray guns, as it has less paint rebound during the spraying process.

Secondly, the atomization effect of the GRACO spraying system is excellent, ensuring the product is sprayed in a highly clean environment.

Furthermore, the one-click self-cleaning function of automatic spraying machine TSP-W only takes 60 seconds. This is good news for the operator.

Finally, the GRACO 30:1 plunger pump has a larger capacity, lower plunger frequency, lower noise during working, and is more precise and durable.

In summary, although the cost of the GRACO spraying system is higher, its efficiency and user experience are better. So we firmly choose to configure GRACO spraying systems on automatic spray painters.
3. My product size is larger than 2400*1200mm. Can I use this automatic spray painter？

Sure, while ensuring the safety of equipment transportation, we can customize an extended or widened automatic spray painter for you based on your product size and spraying requirements, and design a suitable working table for you.
4. What size of paint booth is required for the installation of the automatic spray painter?

The minimum size (length x width x height): 6800 x 5500 x 2800mm.

Tips: The height refers to the vertical distance from the equipment installation base to the filter cotton above the paint booth, which cannot be less than 2800mm. ( If it’s less than 2800mm, the filter cotton may need to be removed during installation or maintenance. ) This size doesn’t include the dust removal area and the drying room.

Besides, the installation requirements for the ground floor and upstairs are also different. Please contact us to get your tailored installation drawings for the automatic spray painter.
