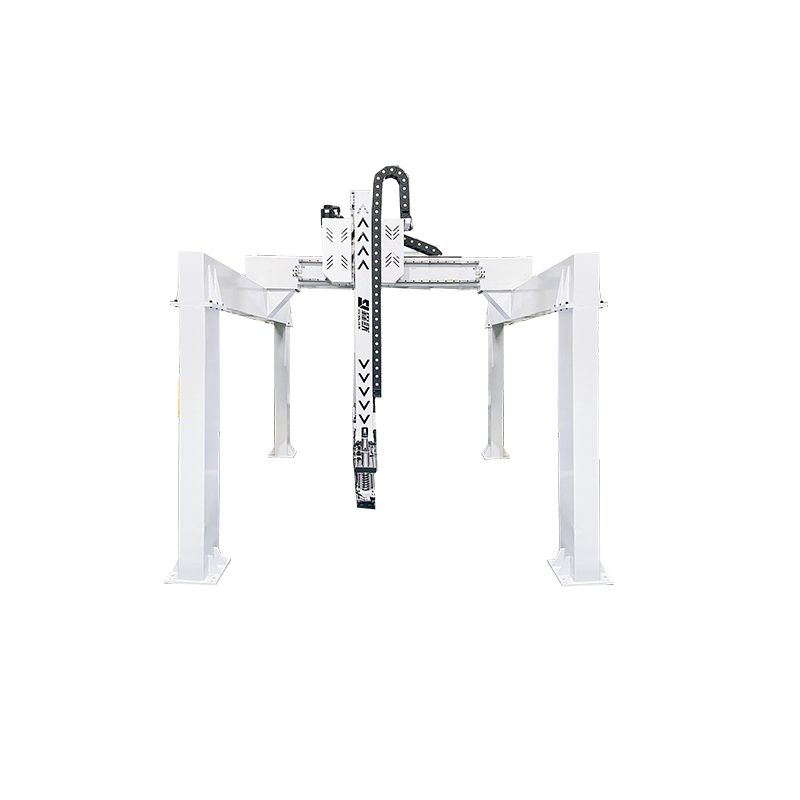

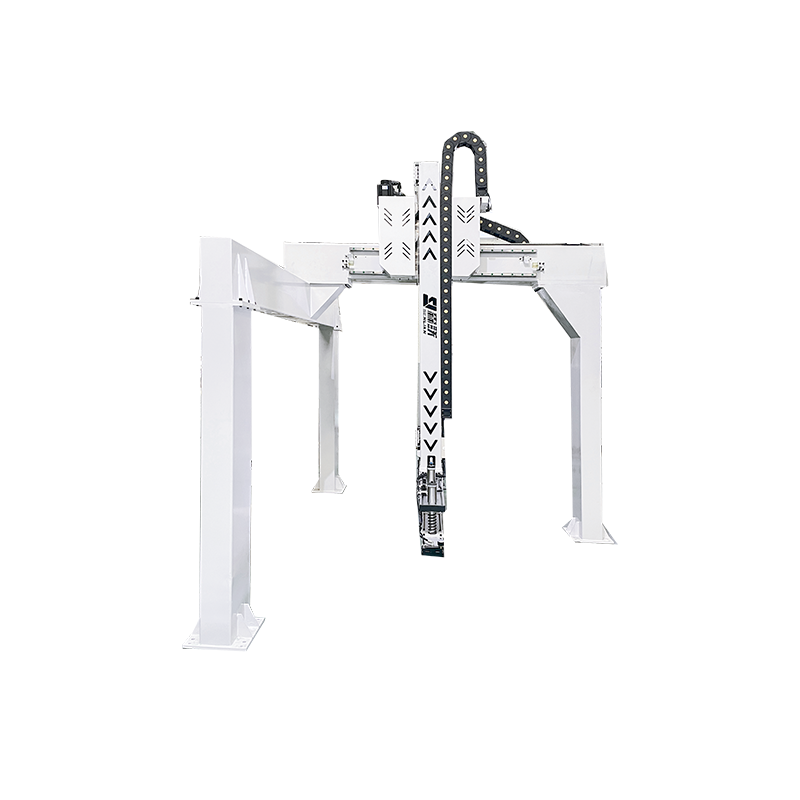

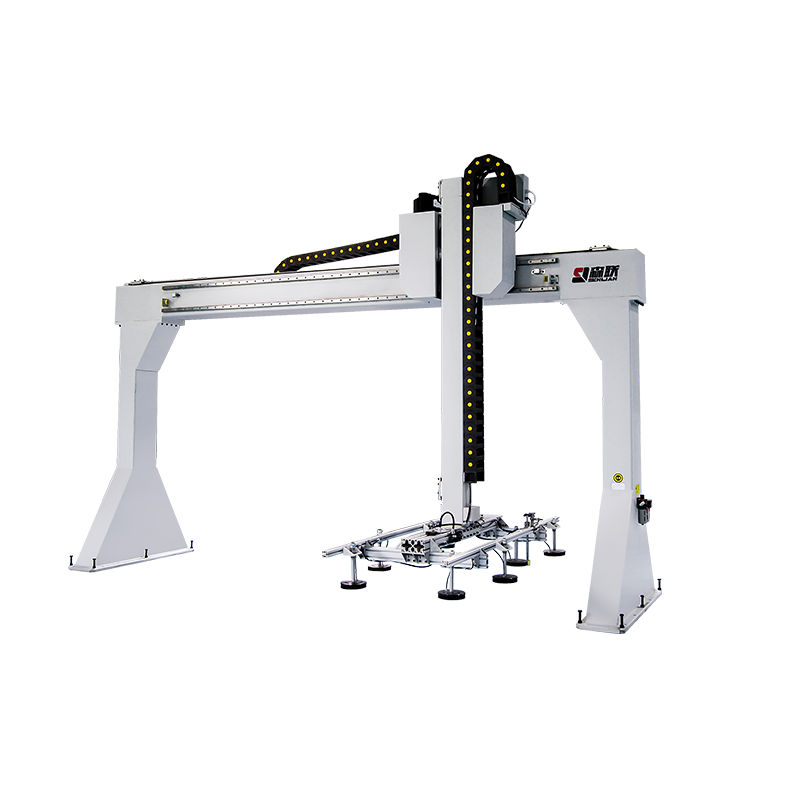

Automatic Board Loading Machine

Model SL-FCZ

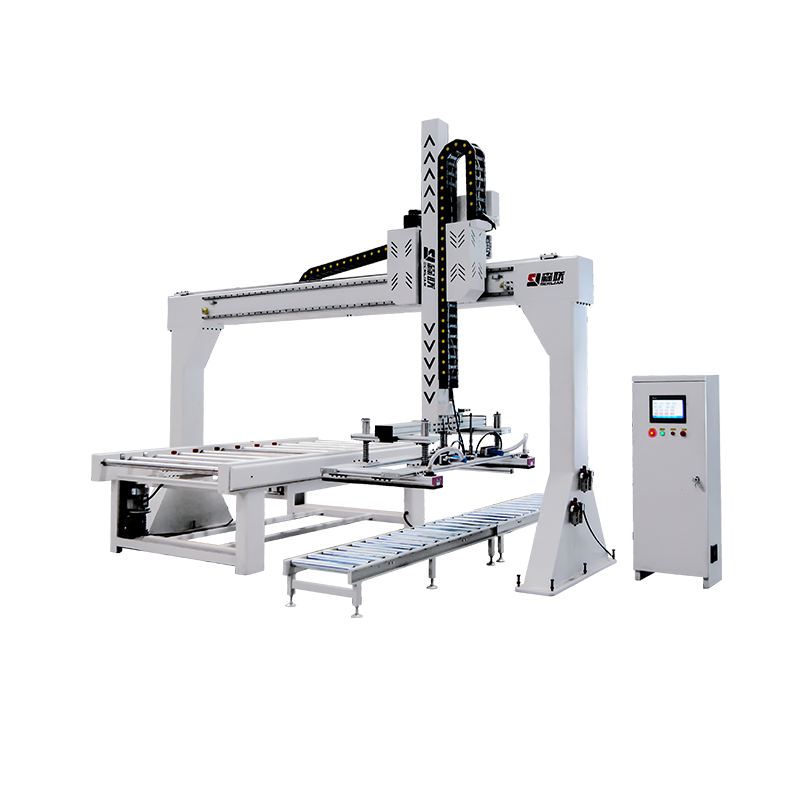

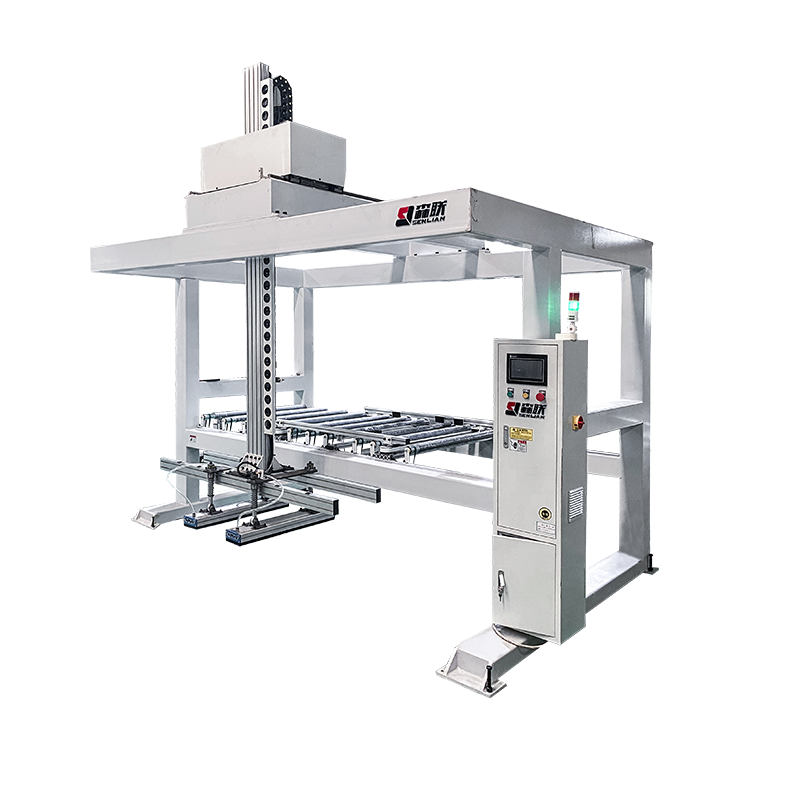

The automatic board loading machine applies the vacuum sucker disks or sponge strips, controlled accurately by PLC and servo motors with rainbow motion technology, moving smoothly, and active shaking technology to avoid boards sticking or dropping during work, mainly for heavy flat or shaped boards, automatically loading or unloading stock rhythmically instead of manually working.

Collaborate with the centring conveyor to enhance the efficiency and stability of the furniture, big board, wood door, fiber cement board, plate metals, and glass automatic coating line.

How does automatic board loading machine work?

Base Materials

Wood
Glass
Metal Sheet
Fiber Cement Board

Standard Characteristics

Solenoid Valves Switch

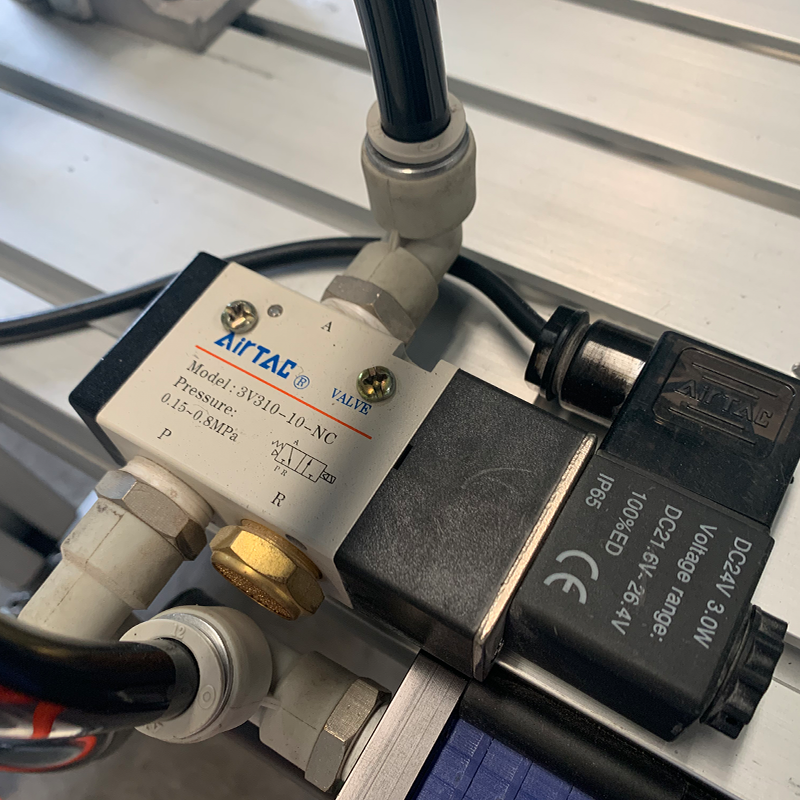

Solenoid valve is a switch signal control, which is very convenient to connect with industrial control computer.

Turbofan

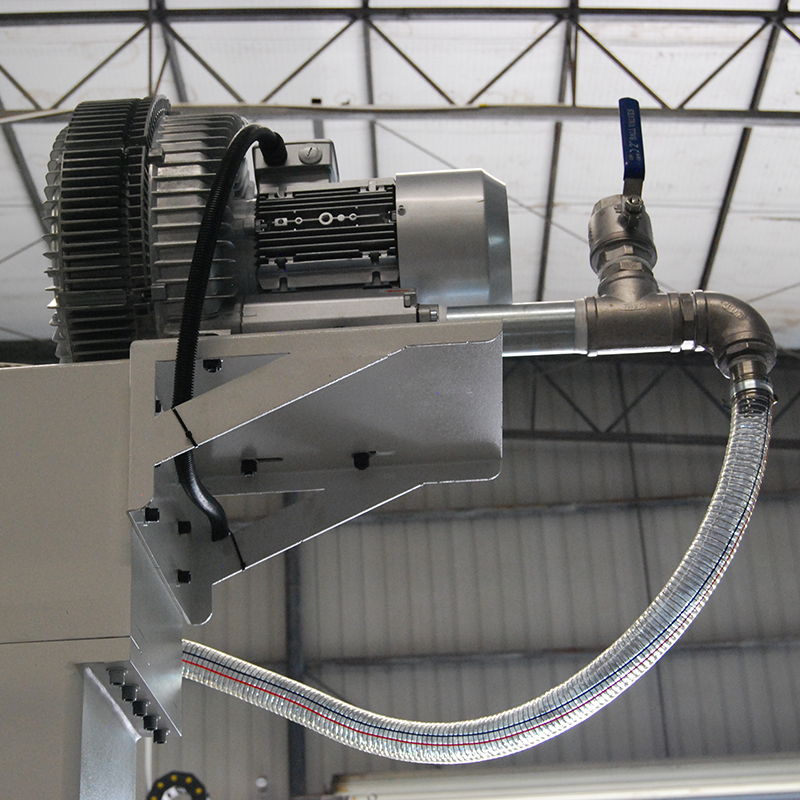

The turbine fan and the vacuum generator on the suction cup are used together to make the loading and unloading of the plate more stable.

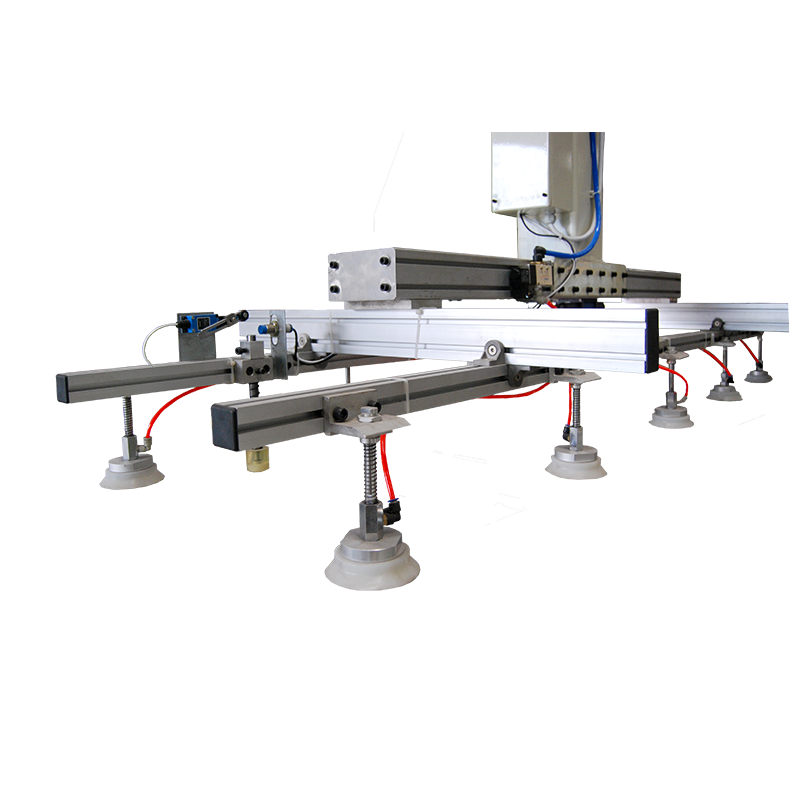

Sponge Sucker

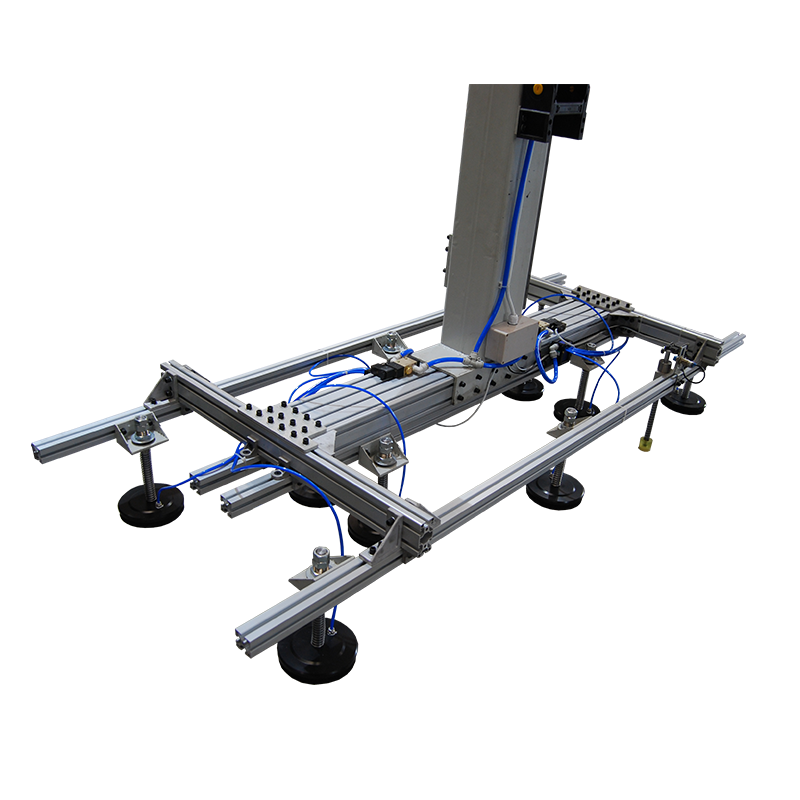

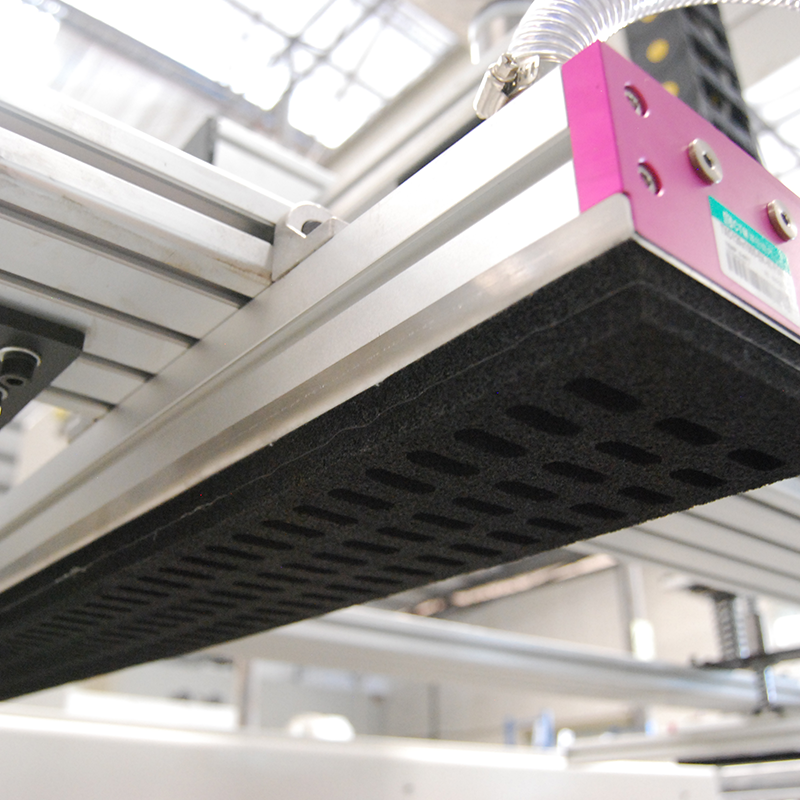

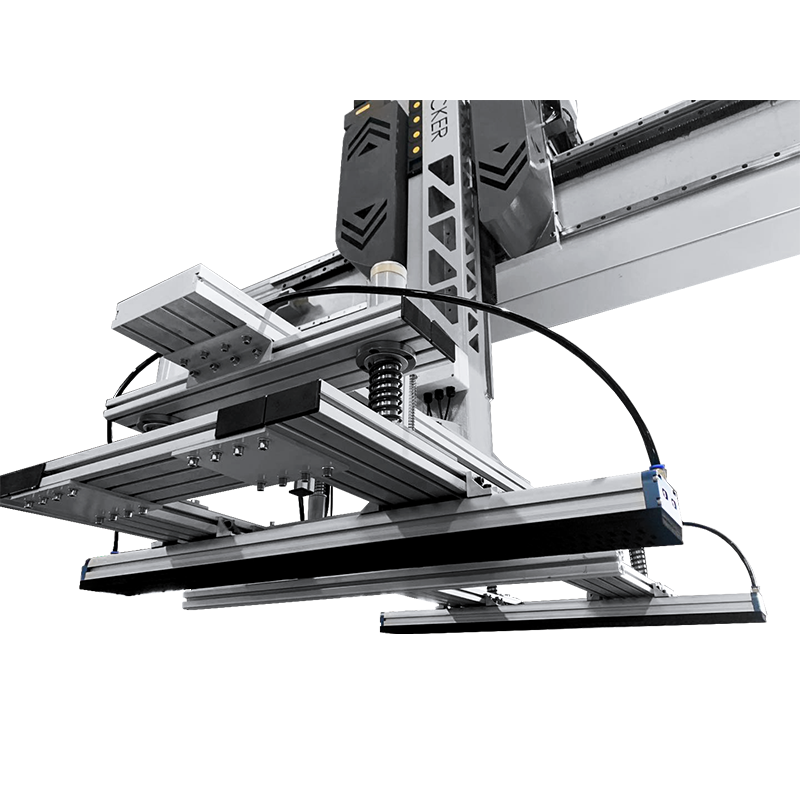

It supports various suckers satisfied with different materials panel situation and length or width adjustable convenient.

Vacuum Generator

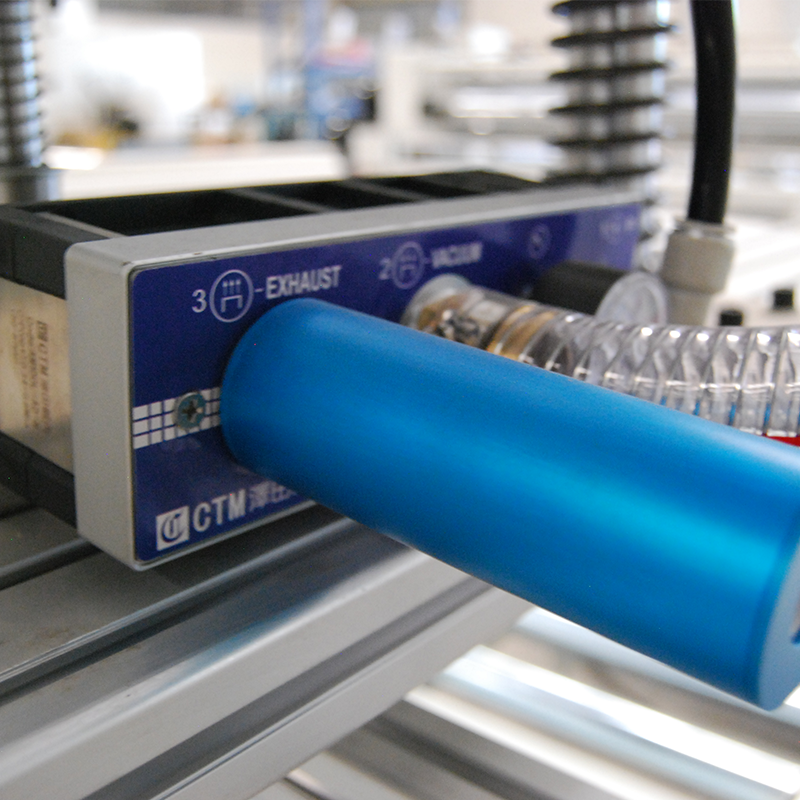

The vacuum generator acts on the suction cup to squeeze the adsorption plate,increasing the adsorption force.

Linear Guide Rail

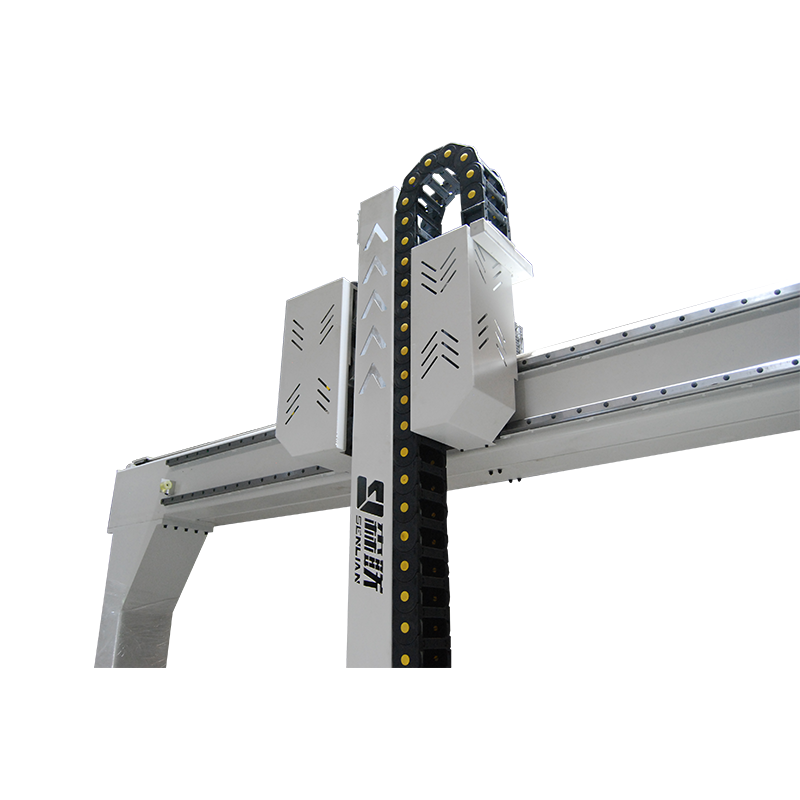

The guide rail is mainly used to transport plates, accurately identify the center position of the plate, and run smoothly without stalls and almost no noise.

Centring Conveyor

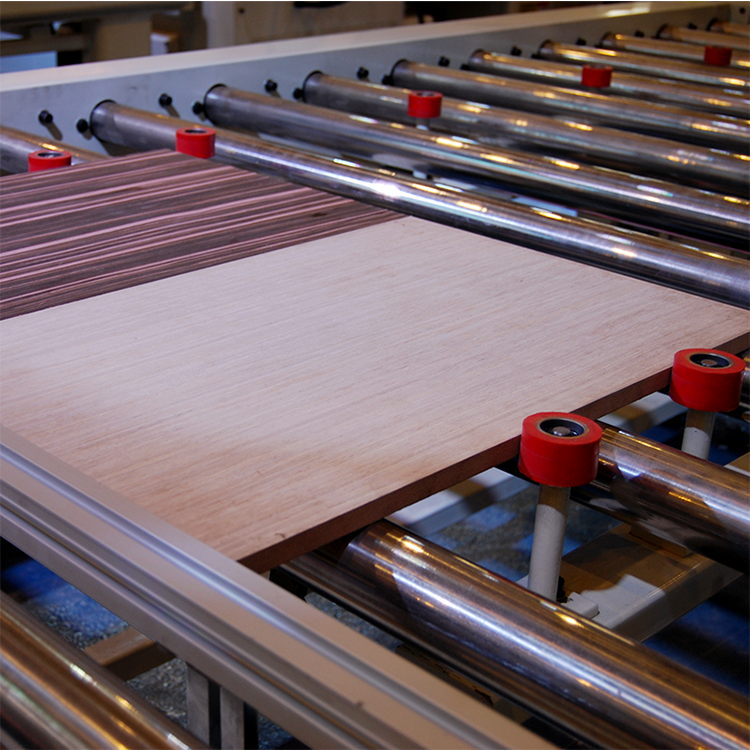

When the plate is placed on the conveyor by the gripper, the centering system will adjust the position of the plate, more convenient for subsequent transportation.

Technical Parameters

Model	SL-FCZ
Overall dimensions L/W/H	220046004500mm
Conveyor overall dimensions(LWH)	30001850850mm

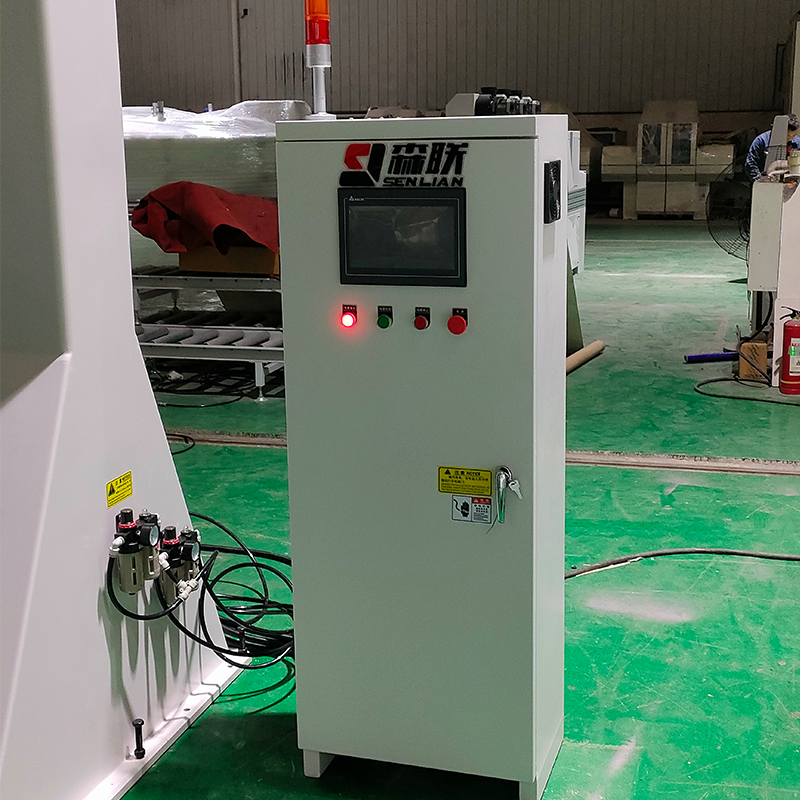

Electric cabinet dimensions(LWH)	5503601500mm
Working width	1000mm to 1300mm
Working length	1500mm to 3000mm
Working speed	3pcs/min
Estimated weight	2300kg
Full power	4.75kw
